MTN6260-7760 SpaceLogic KNX Touch IP 7 Smart Touch Screen Black WiFi OTAU 24V DC
MTN6260-7760 SpaceLogic KNX Touch IP 7 Smart Touch Screen Black WiFi OTAU 24V DC
MTN6260-7760 SpaceLogic KNX Touch IP 7 Smart Touch Screen Black WiFi OTAU 24V DC
MTN6260-7760 SpaceLogic KNX Touch IP 7 Smart Touch Screen Black WiFi OTAU 24V DC
MTN6260-7760 SpaceLogic KNX Touch IP 7 Smart Touch Screen Black WiFi OTAU 24V DC
MTN6260-7760 SpaceLogic KNX Touch IP 7 Smart Touch Screen Black WiFi OTAU 24V DC
Specifications
Brand Name :
Schneider
Model Number :
MTN6260-7760
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Description

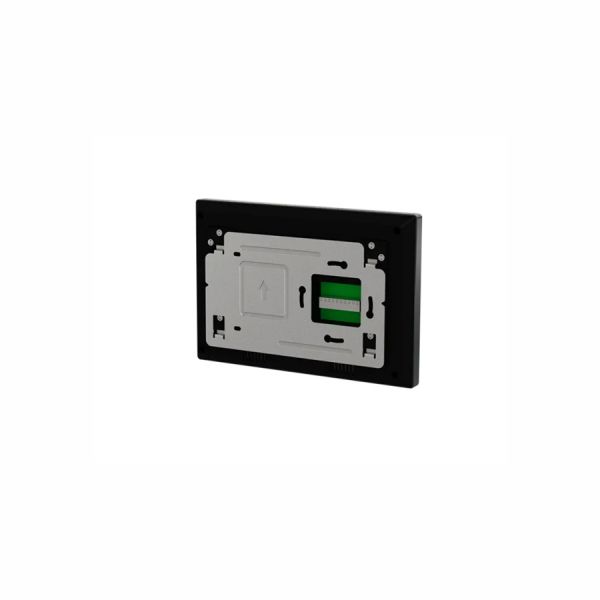

MTN6260-7760 SpaceLogic KNX Touch IP 7 Smart Touch Screen
The MTN6260-7760 is a 7-inch SpaceLogic KNX Touch IP smart panel designed for visualizing and controlling KNX installations via Wiser for KNX or spaceLYnk logic controllers. It delivers smartphone-like interaction for residential and commercial buildings, supporting both new and existing KNX systems.
Key Features
  • High-Resolution Display: 17.47 cm (7") colorful TFT LCD with 1024×600 resolution, multi-touch capacitive screen, and support for landscape/portrait orientation
  • Flexible Visualization: Displays widget-based touch visualization, PC/tablet-style graphics, or the new Wiser KNX App interface
  • Embedded App & WiFi: Built-in application simplifies configuration; WiFi connectivity enables flexible installation location choice
  • Over-the-Air Update (OTAU): Keeps the system up-to-date and secure without physical access
  • Versatile Installation: Surface-mountable, horizontal/vertical orientation compatible, powered by 2-wire 24V DC
Technical Specifications
Power Supply 2-wire DC 24V, standby current 90 mA, active current 240 mA
WiFi Connectivity IEEE 802.11 a/b/g/n/ac (2.4/5 GHz)
Operating Temperature -10°C to +55°C
Humidity Range 0-95% RH (non-condensing)
IP Rating IP30
Dimensions 132.76 × 196.65 × 23.91 mm (W×H×D)
Weight 448 g (814 g with package)
Cable Limits Max 120 m for 2×0.8 mm² cables, max 80 m for 2×0.6 mm² cables
