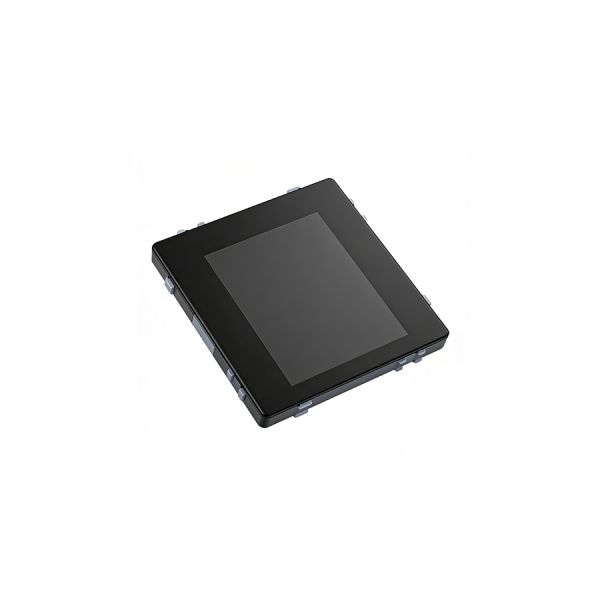

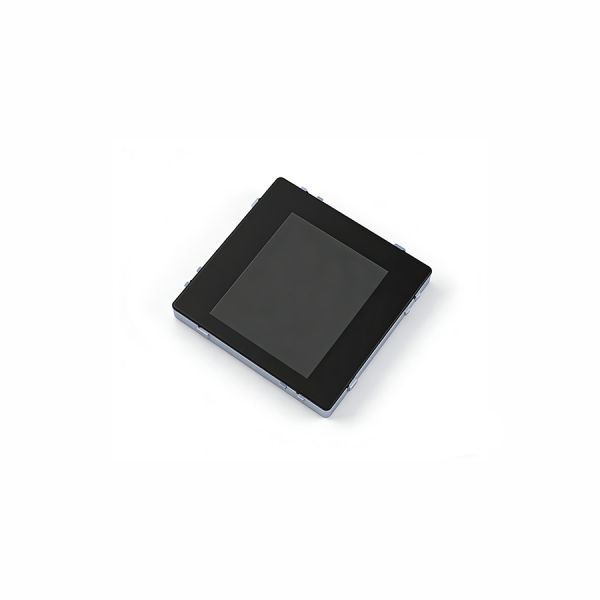

MTN6215-5910 KNX Multitouch Pro Room Thermostat
Premium KNX Multitouch Pro room controller engineered for System D installations, featuring TFT display in black design. Delivers comprehensive control of up to 32 room functions alongside precise temperature management with high-resolution touchscreen interface.
Core Features & Functions
-
Intuitive User Interface: Three freely configurable interface designs for room functions plus two dedicated temperature control layouts with remote sensor support
-
Smart Interaction Modes:
- Proximity sensing automatically wakes screen when approached
- Gesture control recognizes horizontal/vertical swipes for automated actions
- Clean mode locks touch inputs during cleaning periods
- Customizable backlight and screensaver settings
-
Versatile Temperature & HVAC Control:
- Supports heating/cooling with infinitely adjustable KNX valve drives
- 2-step heating/cooling configurations with 1-4 control outputs
- Operating modes: Comfort, Comfort Extension, Standby (ECO), Night Reduction, and Frost/Heat Protection
- Continuous PI control (0-100% output) or ON/OFF switching
-
System Integration: Integrated bus coupler for direct KNX connection with terminal block, includes bus connecting terminal and supporting plate
Technical Specifications
- Programming: ETS4 or higher versions
- Compatible Accessories: MTN6270-0000 (dismantling protection), MTN5775-0003 (remote sensor)
- Mounting: 3-module box (MTN6010-65xx) and D-Life frame (1-gang, 3-module box)
