Schneide SpaceLogic KNX Touch IP 7 MTN6260-7770 BAS System Touch Control Panel
Schneide SpaceLogic KNX Touch IP 7 MTN6260-7770 BAS System Touch Control Panel
Schneide SpaceLogic KNX Touch IP 7 MTN6260-7770 BAS System Touch Control Panel
Schneide SpaceLogic KNX Touch IP 7 MTN6260-7770 BAS System Touch Control Panel
Specifications
Brand Name :
Schneide
Model Number :
MTN6260-7770
Certification :
RoHS
Place of Origin :
EU
MOQ :
2
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Certifications :
CE / UL / RoHS
Operating Temperature Range :
-20°C to 60°C
Screen Size :
7 inch
Dimensions (W x H x D) :
132.76 x 196.65 x 23.91 mm
Protection Rating :
IP30
Display Type :
Colorful TFT LCD & multi-touch capacitive screen
Operating Voltage :
24V DC
Resolution :
1024 x 600
Color :
Black
Description
Schneider SpaceLogic KNX Touch IP 7 MTN6260-7770 BAS & KNX System Touch Control Panel
Product Overview (Schneider SpaceLogic KNX Touch IP 7)

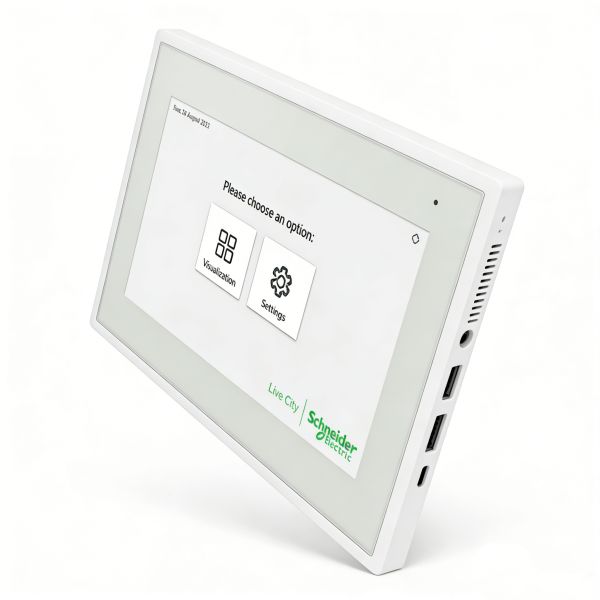

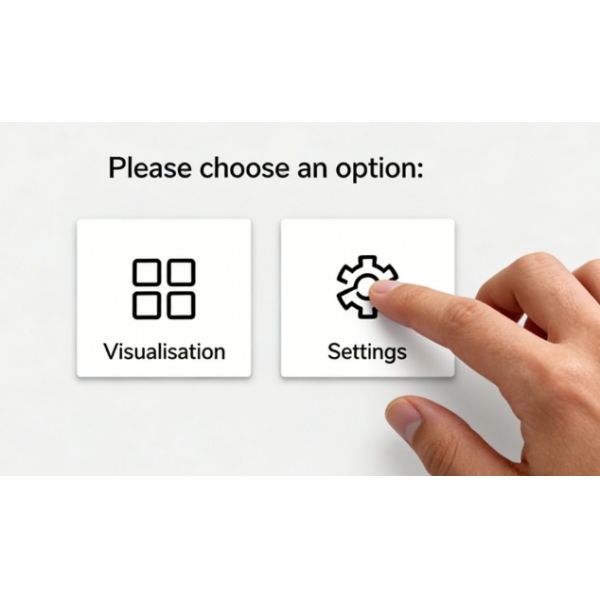

The SpaceLogic KNX Touch IP 7 (Art. No. MTN6260-7770 – White, MTN6260-7760 – Black, both discontinued) is a 7-inch capacitive touch screen designed for residential and commercial KNX installations. It visualizes and controls automation systems from Wiser for KNX or spaceLYnk controllers, offering web-based visualization on PC/tablet and remote control via smartphones. The interface is intuitive, supporting both landscape and portrait orientation, with Wi-Fi connectivity for flexible placement and Over-the-Air (OTA) updates to keep the system current. Surface-mounted installation is supported wherever a 24V power supply is available.

Technical Specifications (Official Data)
Category Specifications
Touch Panel
  • Screen Diagonal: 17.47 cm (7")
  • Resolution: 1024 * 600
  • Type: Colorful TFT LCD, multi-touch capacitive screen
  • Horizontal Viewing Angles: Vertical (top/bottom): 30°/70°; Horizontal (left/right): 70°/70°
  • Vertical Viewing Angles: Vertical (top/bottom): 70°/70°; Horizontal (left/right): 30°/70°
Power Supply
  • Input: DC 24V (2-wire power supply)
  • Standby Current: 90 mA
  • Active Current: 240 mA
Wi-Fi Connectivity
  • Frequency Band: IEEE 802.11 a/b/g/n/ac
  • Dual-Band Support: 2.4 GHz (2400-2483.5 MHz) / 5 GHz (5150-5250 MHz)
Environmental Conditions
  • Operating Temperature: -10 °C to +55 °C
  • Operating Humidity: 0% to 95% RH (non-condensing)
  • Storage Temperature: -25 °C to +70 °C
  • Storage Humidity: 0% to 95% RH (non-condensing)
  • IP Rating: IP20
Dimensions & Weight
  • Dimensions (W * H * D): 132.76 * 196.65 * 23.91 mm
  • Net Weight: 448 g
  • Package Weight: 814 g
Installation Cable Length Limits

When installing, ensure the following maximum cable lengths are observed for proper communication:

  • YR-2x0.8 mm, J-Y(ST)Y 2x2x0.8 mm, A-Y(L)2Y 2x2x0.8 mm: ≤ 120 m
  • A-Y(L)2Y 2x2x0.6 mm, J-Y(ST)Y 2x2x0.6 mm: ≤ 80 m
