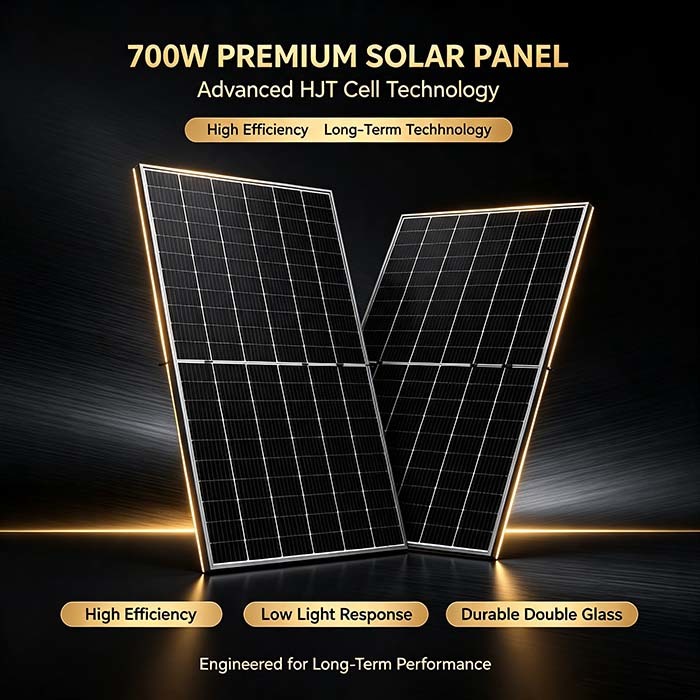

Utility‑Farm 700‑Watt Bifacial Solar Panel, 132‑Cell HJT High‑Efficiency PV Panel
Utility‑Farm 700‑Watt Bifacial Solar Panel, 132‑Cell HJT High‑Efficiency PV Panel
Utility‑Farm 700‑Watt Bifacial Solar Panel, 132‑Cell HJT High‑Efficiency PV Panel
Utility‑Farm 700‑Watt Bifacial Solar Panel, 132‑Cell HJT High‑Efficiency PV Panel
Specifications
Model Number :
KM500-600W Solar Panel
System Voltage :
1500 V DC
MOQ :
1
Delivery Time :
general two weeks, more quantity based on exact quantity
Bifaciality Factor :
85%
Payment Terms :
L/C,L/C
Maximum Power :
700W
Cell Type :
Monocrystalline / Polycrystalline
Price :
USD1-100/pcs
Weight :
25 kg
Panel Efficiency :
22%
Supply Ability :
10000pcs/month
Dimensions :
1722x1134x30mm
Junction Box Current :
25A
Certification :
CE, FCC, UKCA, CB
Cell Dimensions :
166 mm × 83 mm
Encapsulation Material :
EVA
Place of Origin :
China
Number of Cells :
144
Packaging Details :
standard international carton packing
Brand Name :
Kuoman
Front Glass Thickness :
3.2 mm
Description
Utility‑Farm 700‑Watt Bifacial Solar Panel, 132‑Cell HJT High‑Efficiency PV Panel
Our 700W double-glass HJT monocrystalline bifacial PV module adopts advanced 16BB SMBB solar-cell technology, delivering high conversion efficiency up to 22.53%. Built with dual 2.0 mm semi-tempered glass, this durable solar panel supports a maximum 25% rear-side power gain thanks to its 85% bifaciality factor. Rated for 1500 V DC system voltage and tough-condition-resistant, this industrial-grade solar module is engineered for long-term outdoor power generation for residential, commercial and utility-scale solar projects.
Utility‑Farm 700‑Watt Bifacial Solar Panel, 132‑Cell HJT High‑Efficiency PV Panel Utility‑Farm 700‑Watt Bifacial Solar Panel, 132‑Cell HJT High‑Efficiency PV Panel
Electrical Specifications
Parameter 680W 690W 700W 710W 720W
Maximum Power (Pmax/W) 680 690 700 710 720
Maximum Power Voltage (Vmp/V) 41.49 41.80 42.10 42.40 42.70
Maximum Power Current (Lmp/A) 16.39 16.51 16.63 16.75 16.87
Open Circuit Voltage (Voc/V) 49.5 49.82 50.13 50.45 50.76
Short Circuit Current (Lsc/A) 17.19 17.31 17.43 17.55 17.67
Module Efficiency (%) 21.89 22.21 22.53 22.85 23.18
Utility‑Farm 700‑Watt Bifacial Solar Panel, 132‑Cell HJT High‑Efficiency PV Panel
Mechanical Characteristics
  • Dimensions: 2108 mm in length, 1048 mm in width, and 35 mm in height (L×W×H)
  • Weight: 25 kg per module
  • Front Glass: 3.2 mm thick, high-transmission tempered glass for maximum light penetration and impact resistance
  • Encapsulation: High-quality EVA (Ethylene Vinyl Acetate) for cell protection and durability
  • Cells: 144 pieces of monocrystalline solar cells, each measuring 166 mm × 83 mm
  • Backsheet: Composite film providing excellent insulation and weather resistance
  • Frame: Anodized aluminum profile offering corrosion resistance and structural strength
  • Junction Box: Rated at 25A current, IP68 waterproof rating, TUV certified for safety and reliability
  • Cable: Negative cable length 400 mm, Positive cable length 300 mm
  • Connector: Compatible with industry-standard MC4 connectors for easy and secure installation
General Product Questions
Q1: What is the maximum extra power I can gain from this bifacial solar panel?
A1: You can gain up to 25% rear‑side power gain, the actual output improvement is determined by ground albedo, mounting height and surrounding environment. The standard bifaciality factor reaches 85%±5%.
Q2. Can this solar panel work in extreme cold and hot climate?
A2. Yes. Its permitted operating temperature ranges from ‑40°C to +85°C, well suited for freezing winter and scorching‑hot tropical districts.
Q3. Is this panel suitable for seaside salt‑spray environments?
A3. Definitely. The double‑glass structure delivers strong salt‑ammonia‑sand corrosion resistance for coastal and desert locations.
Q4. What is the maximum system operating voltage?
A4. Rated maximum system voltage is DC 1500V, compatible with mainstream high‑voltage solar inverters.
