Waterproof IP67 180‑190W Monocrystalline Solar Panel For Garden Light & Security Camera Power
Waterproof IP67 180‑190W Monocrystalline Solar Panel For Garden Light & Security Camera Power
Waterproof IP67 180‑190W Monocrystalline Solar Panel For Garden Light & Security Camera Power
Waterproof IP67 180‑190W Monocrystalline Solar Panel For Garden Light & Security Camera Power
Specifications
Model Number :
JST-EXMH-(180-190)W
Max Series Fuse :
15A
Open Circuit Voltage :
21.96V
Supply Ability :
2000pcs/month
Voltage at Pmax :
19.06V
Power Tolerance :
0 ~ +4.99W
Module Efficiency :
19.95%
MOQ :
1
Price :
based on quantity
Maximum Power :
190W
Max System Voltage :
700Vdc
Payment Terms :
T/T
Current at Pmax :
9.97A
Place of Origin :
China
Packaging Details :
1295×1100×885mm 385kg
Short Circuit Current :
10.48A
Brand Name :
KUOMAN
Dimensions :
1245×765×30mm
Description
Waterproof IP67 180‑190W Monocrystalline Solar Panel For Garden Light & Security Camera Power
Product Overview

With an outstanding module efficiency reaching up to 19.95%, this 180‑190‑watt photovoltaic module delivers stable power‑output under the standard test condition (STC:1000W/m², 25℃, AM1.5). Designed with durable aluminum frame, IP67 junction box and 3.2 mm tempered safety glass, it works reliably from ‑40℃ to +85℃ for long‑term off‑grid and on‑grid solar power projects.

Waterproof IP67 180‑190W Monocrystalline Solar Panel For Garden Light & Security Camera Power

Key Electrical & Mechanical Specifications

Parameter 180W Model 190W Model
Maximum Power (Pmax) 180W 190W
Open Circuit Voltage (Voc) 21.80V 21.96V
Short Circuit Current (Isc) 10.10A 10.48A
Voltage at Pmax (Vmp) 18.79V 19.06V
Current at Pmax (Imp) 9.58A 9.97A
Module Efficiency 18.90% 19.95%
Power Tolerance 0 ~ +4.99W 0 ~ +4.99W
Max System Voltage 700Vdc (IEC/UL) 700Vdc (IEC/UL)
Max Series Fuse Rating 15A 15A
Dimensions 1245*765*30mm 1245*765*30mm
Weight 9.87kg 9.87kg
Cell Type Monocrystalline 182*72.8mm (4*16pcs)
Key Advantages
Unrivaled Efficiency: The 190W model achieves 19.95% efficiency—among the highest in its class—maximizing energy harvest for limited space.
700V System Compatibility: Supports large-scale series connections (e.g., 30+ panels) for utility-grade or industrial off-grid systems, reducing wiring costs.
Heavy-Duty Durability: 3.2mm tempered glass + anodized aluminum frame resists impact, corrosion, and UV degradation. IP67 junction box (waterproof to 1m for 30 minutes) and 5400Pa front wind load / 2400Pa rear snow load ensure reliability in harsh environments.
Scalable & Future-Proof: Customizable cable lengths (90cm standard) and MC4 compatibility simplify integration into complex PV arrays.
Frequently Asked Questions
Can this panel charge a 24V battery?
Yes! The Vmp (18.79-19.06V) is ideal for 24V battery systems (with a compatible charge controller).
How many panels fit on one pallet?
36 panels per pallet (dimensions: 1295*1100*885mm; weight: 385kg).
Is it suitable for coastal areas?
Absolutely. The IP67 junction box and corrosion-resistant aluminum frame withstand salt, moisture, and extreme weather.
Waterproof IP67 180‑190W Monocrystalline Solar Panel For Garden Light & Security Camera Power

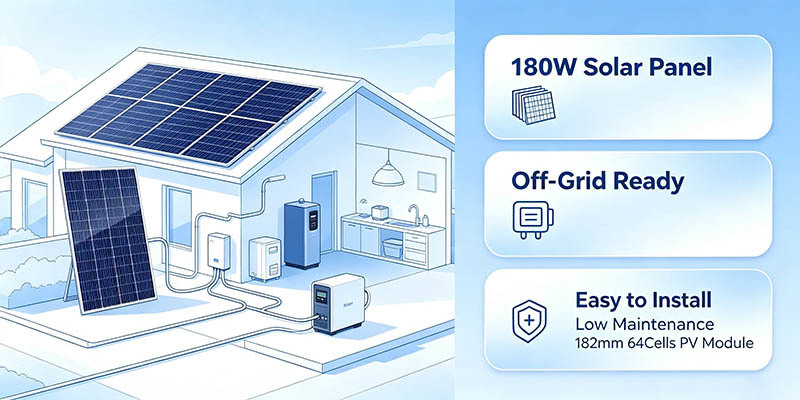

Application Scenarios
  • Large Off-Grid Homes: Primary power for remote cabins, farms, or eco-resorts
  • Commercial Rooftops: Small businesses, warehouses, or agricultural facilities seeking energy independence
  • Telecom & Utilities: Powers remote cell towers, weather stations, or grid-tied backup systems
  • Mobile Applications: Heavy-duty RV solar systems, large boats, or mobile command centers
