180‑190W High‑Efficiency Mono Solar Panel | 19.95% Max Efficiency
180‑190W High‑Efficiency Mono Solar Panel | 19.95% Max Efficiency
180‑190W High‑Efficiency Mono Solar Panel | 19.95% Max Efficiency
180‑190W High‑Efficiency Mono Solar Panel | 19.95% Max Efficiency
Specifications
Packaging Details :
1295×1100×885mm 385kg
Short Circuit Current :
10.48A
Model Number :
JST-EXMH-(180-190)W
Max Series Fuse :
15A
Price :
based on quantity
Maximum Power :
190W
Max System Voltage :
700Vdc
Supply Ability :
2000pcs/month
Voltage at Pmax :
19.06V
Power Tolerance :
0 ~ +4.99W
Payment Terms :
T/T
Current at Pmax :
9.97A
Module Efficiency :
19.95%
Place of Origin :
China
MOQ :
1
Open Circuit Voltage :
21.96V
Brand Name :
KUOMAN
Dimensions :
1245×765×30mm
Description
180‑190W High‑Efficiency Mono Solar Panel | 19.95% Max Efficiency
Product Overview

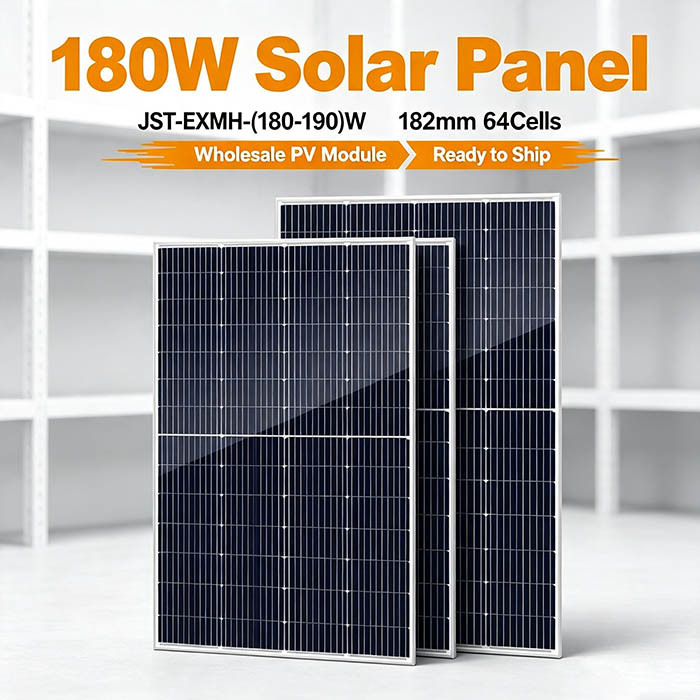

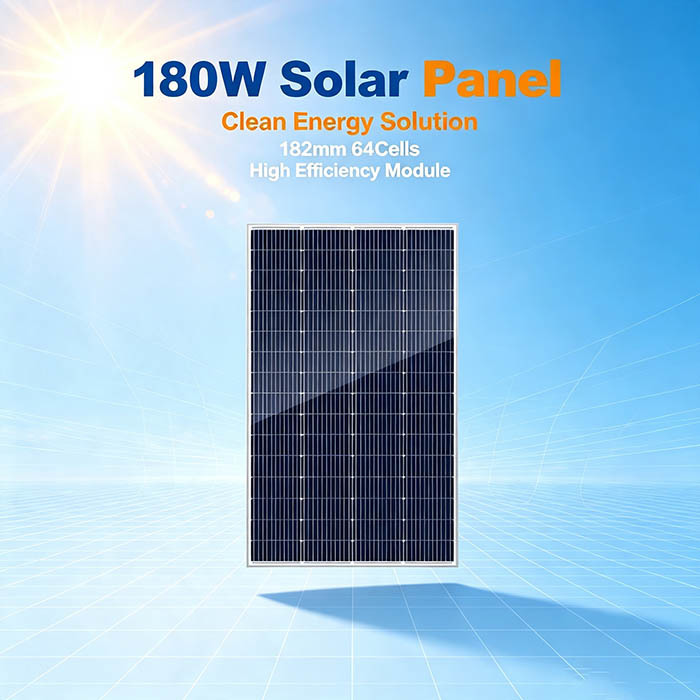

The EXMH-(180-190)W is a high-performance monocrystalline solar panel designed for large-scale off-grid power systems, commercial rooftops, and heavy-load mobile applications. With a best-in-class efficiency of 19.95% (190W model) and optimized 182mm 64-cell technology, it delivers exceptional energy density, durability, and scalability.

180‑190W High‑Efficiency Mono Solar Panel | 19.95% Max Efficiency

Key Electrical & Mechanical Specifications

Parameter 180W Model 190W Model
Maximum Power (Pmax) 180W 190W
Open Circuit Voltage (Voc) 21.80V 21.96V
Short Circuit Current (Isc) 10.10A 10.48A
Voltage at Pmax (Vmp) 18.79V 19.06V
Current at Pmax (Imp) 9.58A 9.97A
Module Efficiency 18.90% 19.95%
Power Tolerance 0 ~ +4.99W 0 ~ +4.99W
Max System Voltage 700Vdc (IEC/UL) 700Vdc (IEC/UL)
Max Series Fuse Rating 15A 15A
Dimensions 1245*765*30mm 1245*765*30mm
Weight 9.87kg 9.87kg
Cell Type Monocrystalline 182*72.8mm (4*16pcs)

Frequently Asked Questions
Can this panel charge a 24V battery?
Yes! The Vmp (18.79-19.06V) is ideal for 24V battery systems (with a compatible charge controller).
How many panels fit on one pallet?
36 panels per pallet (dimensions: 1295*1100*885mm; weight: 385kg).
Is it suitable for coastal areas?
Absolutely. The IP67 junction box and corrosion-resistant aluminum frame withstand salt, moisture, and extreme weather.
180‑190W High‑Efficiency Mono Solar Panel | 19.95% Max Efficiency
Application Scenarios
  • Large Off-Grid Homes: Primary power for remote cabins, farms, or eco-resorts
  • Commercial Rooftops: Small businesses, warehouses, or agricultural facilities seeking energy independence
  • Telecom & Utilities: Powers remote cell towers, weather stations, or grid-tied backup systems
  • Mobile Applications: Heavy-duty RV solar systems, large boats, or mobile command centers
