AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g
AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g
AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g
AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g
AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g
AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g
AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g
AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g
Specifications
Brand Name :
AKK
Model Number :
AKK TX5000AC
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
L/C,Western Union,Paypal
Supply Ability :
6000 pieces/month
Delivery Time :
3-7 work days
Packaging Details :
International Standard Packing
Output power :
25/200/500/1000/3000/5000mW
Dimensions :
36*36mm
Weight :
25g
Kit contents :
1VTX and 1Cable and 1pigtail
Application :
FPV racing, long-range flights, industrial drones
Description


AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g

Product Description


Introduction
The AKK TX5000AC is a high-performance 5.8GHz FPV video transmitter delivering up to 5W (5000mW) peak power with 96 selectable channels. Designed for high-speed racing and long-range flights, it ensures stable and interference-free image transmission. Featuring Smart Audio, wide voltage input, and an integrated cooling fan, the TX5000AC offers reliable performance in even the most demanding environments.


Features

  • 96 channels to minimize interference

  • Adjustable output power from 25mW to 5000mW

  • Supports Smart Audio for OSD configuration

  • Wide voltage input (14.6V-28V), supports 6S battery

  • Built-in cooling fan for heat protection

  • MMCX antenna connector for stable signal transmission

Advantages

  • Stable image transmission in challenging environments

  • Multiple power levels for both short- and long-range use

  • Durable design for extended service life

  • Easy channel and band switching for race events

Applications

  • FPV drone racing

  • Long-range aerial photography

  • Industrial drone video transmission

  • Outdoor surveying and exploration

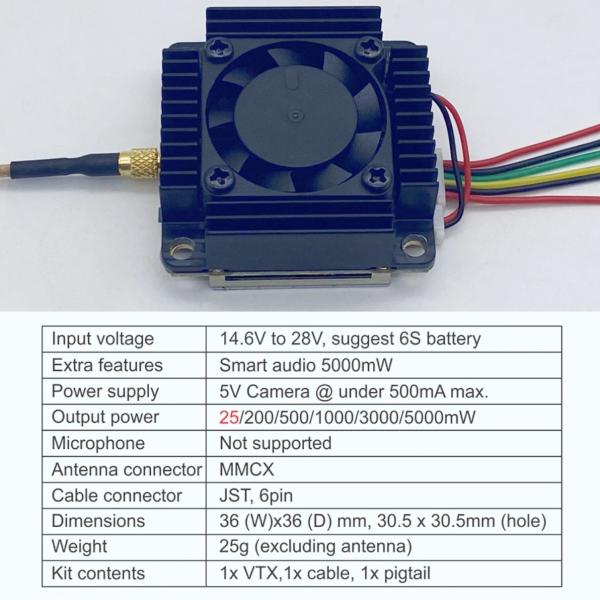

Specifications Table

Specification Details

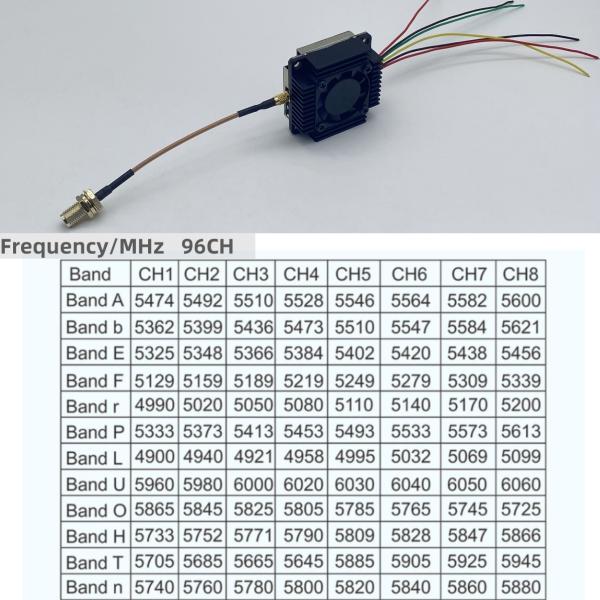

Frequency Range 5.8GHz, 96 channels
Output Power 25/200/500/1000/3000/5000mW adjustable
Input Voltage 14.6V-28V (recommended 6S battery)
Camera Power 5V @ ≤500mA
Audio Not supported
Connectors MMCX antenna, JST 6-pin cable
Dimensions 36×36mm (30.5×30.5mm mounting holes)
Weight 25g (excluding antenna)
Kit Contents 1× VTX, 1× cable, 1× pigtail

AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g

AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g

Send your message to this supplier
Send Now

AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g

Ask Latest Price
Watch Video
Product Detail
Brand Name :
AKK
Model Number :
AKK TX5000AC
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Contact Supplier
video
AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g
AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g
AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g
AKK TX5000AC 5W 5.8GHz 96CH FPV Video Transmitter VTX for Racing Drone 25g
