PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter
PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter
PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter
PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter
PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter
PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter
PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter
PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter
PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter
PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter

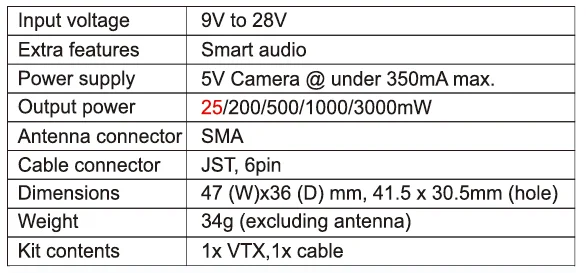

Specifications
Brand Name :
Kimpok
Model Number :
KP-T6703
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union, D/P
Supply Ability :
3000 PCS/Month
Delivery Time :
7-10 Working Days
Packaging Details :
International Standard Packing
Type :
Wireless Video Transmitter
Frequency :
7.2G
RF Power :
3W
Channel :
64CH
Extra Feature :
Smart Audio
Input Voltage :
9V-28V
Description

PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter

I.Key Features:

1. Support Smart audio

2. 25/200/500/1000/3000mWpower switchable

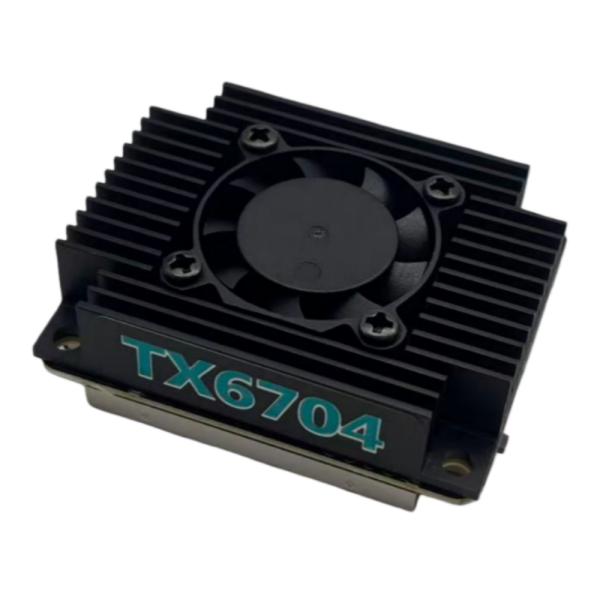

3. Built-in cooling fan

4. OSD configuration using smart audio

5. 9-28V input with 5V output

II.Button control Channel select mode

One button is used to set channel, band and power.

1.Channel Select

Short press to change 8 channels.

2.Band Select

Press the button for 2 seconds, LED will flicker an letter, then short press to change 8 band from

A-b-E-F-r-P-H-U

3.Power Select

Press the button for 3 seconds, LED will flicker an number quickly, then short press to change 5 power

levels.

After setting, led will display letter-number-number flickering twice, representing band-channel-power

level.

4.Pit Mode

The VTX is fully accessible via smart audio.

It supports Pit Mode.

​PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter ​ ​PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter

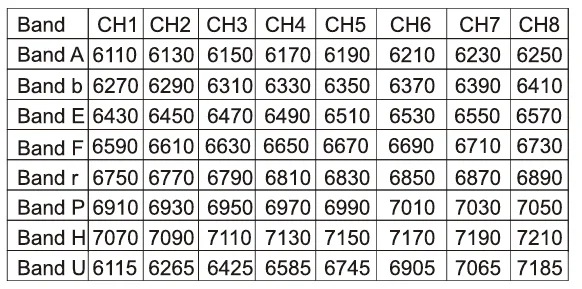

III. Frequency Table.

​PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter

PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video TransmitterPEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter

PEAK FPV VTX 7.2G 3W VTX Long Range Image Transmission 7.2G 3000mW Drone Video Transmitter
