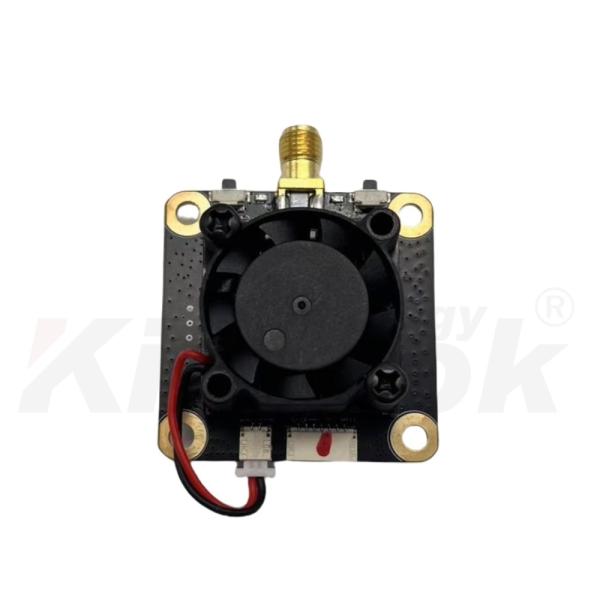

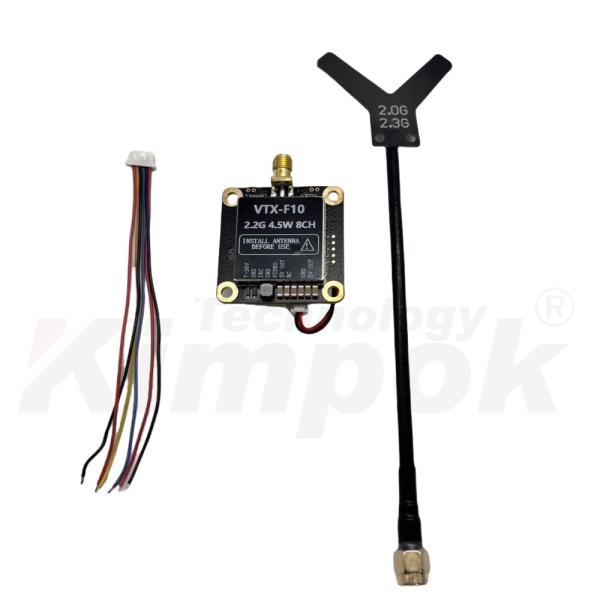

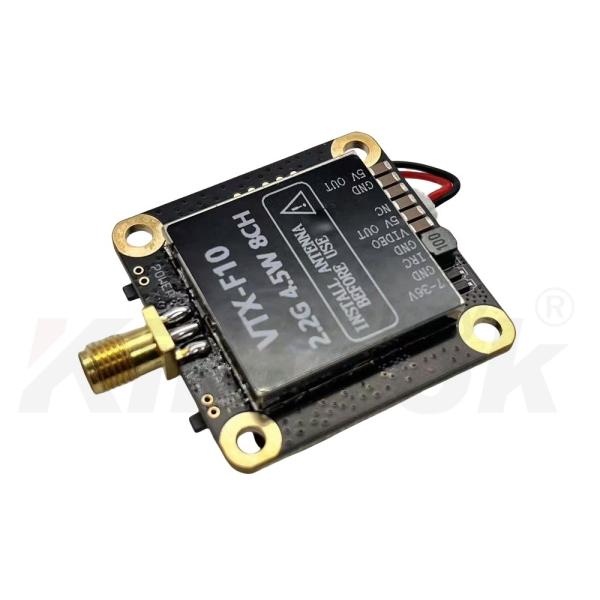

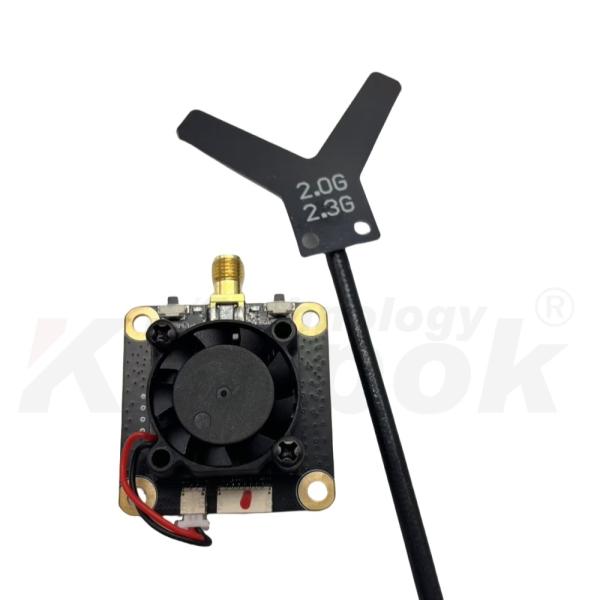

2.2G 4.5W High Power FPV VTX Video Transmitter with 8 Channels Stable Wireless Video Module
2.2G 4.5W High Power FPV VTX Video Transmitter with 8 Channels Stable Wireless Video Module
2.2G 4.5W High Power FPV VTX Video Transmitter with 8 Channels Stable Wireless Video Module
2.2G 4.5W High Power FPV VTX Video Transmitter with 8 Channels Stable Wireless Video Module
2.2G 4.5W High Power FPV VTX Video Transmitter with 8 Channels Stable Wireless Video Module
2.2G 4.5W High Power FPV VTX Video Transmitter with 8 Channels Stable Wireless Video Module
Specifications
Brand Name :
Kimpok
Model Number :
2.2G 4.5w VTX
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
4,000 pieces per month
Delivery Time :
3-7 work days
Packaging Details :
International standard packing
Input Voltage :
7-36V DC (2-6S)
Output Voltage :
5V/0.5A
Weight :
21.5g (excluding Antenna)
Number Of Channels :
8CH
Description
Product Description
2.2G Drone FPV VTX High Power 4.5W Stable Signal Wireless Video Module
Key Attributes
Input Voltage 7-36V DC (2-6S)
Output Voltage 5V/0.5A
Weight 21.5g (excluding antenna)
Number of Channels 8CH
Product Overview

The 2.2G 4.5W VTX is a high-performance wireless analog video transmitter designed for drones requiring stable, long-range, low-latency image transmission. Operating within the 2.0 to 2.28GHz frequency range, it reduces interference from common bands and ensures smooth video feed in both urban and remote environments.

Key Features
  • 2.2G frequency band for reduced interference and reliable transmission
  • Adjustable power levels (25mW, 800mW, 4500mW) to suit various ranges and environments
  • Supports IRC Tramp protocol and OSD tuning for easy frequency and power control
  • Wide voltage range operation from 7 to 36V, compatible with 2 to 6S LiPo batteries
  • Provides 5V 0.5A output for powering cameras or other equipment
  • Compact design with 30.5 x 30.5mm mounting holes for direct installation
  • Built-in temperature protection prevents overheating
Product Advantages
  • Strong and stable signal performance in challenging environments
  • Flexible power adjustment for optimal distance, stability, and heat management
  • Compatible with most FPV drones and camera systems
  • Durable construction for long-term reliability
  • Simple integration into existing drone setups
Applications
  • FPV drone racing with fast, precise control
  • Aerial photography and filming with clear video feed
  • Industrial inspection with reliable long-distance transmission
  • Security and surveillance with stable real-time monitoring
Technical Specifications
Frequency Range 2000 to 2280MHz (8 channels)
Channel Selection Short press button or OSD control
Power Levels 25mW, 800mW, 4500mW adjustable
Input Voltage 7 to 36V DC (2 to 6S)
Output Voltage 5V 0.5A
Video Format PAL/NTSC
Antenna Connector SMA outer thread inner hole
Dimensions 37 x 46 x 17.5mm (including SMA and fan)
Weight 21.5g (excluding antenna)
Modulation Type FM
Special Functions IRC Tramp protocol, temperature protection

2.2G 4.5W High Power FPV VTX Video Transmitter with 8 Channels Stable Wireless Video Module

2.2G 4.5W High Power FPV VTX Video Transmitter with 8 Channels Stable Wireless Video Module2.2G 4.5W High Power FPV VTX Video Transmitter with 8 Channels Stable Wireless Video Module
