Specifications
Brand Name :
Kimpok
Model Number :
KP-T5815
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,Western Union
Supply Ability :
5,000 pieces per month
Delivery Time :
3-7 Work Days
Packaging Details :
International standard packing
Smart audio :
IRC Tramp
Input voltage :
DC 18V-36V (supports 6-8S battery)
Max power :
15W (adjustable: 1W/4W/8W/12W/15W)
Frequency range :
80 channels
Dimensions :
65.8mm×37.3mm×19.3mm
Description
15W 5.8G Wireless Video Transmitter

High-power 5.8GHz FPV VTX for drone remote transmission with adjustable power output and wide frequency range.

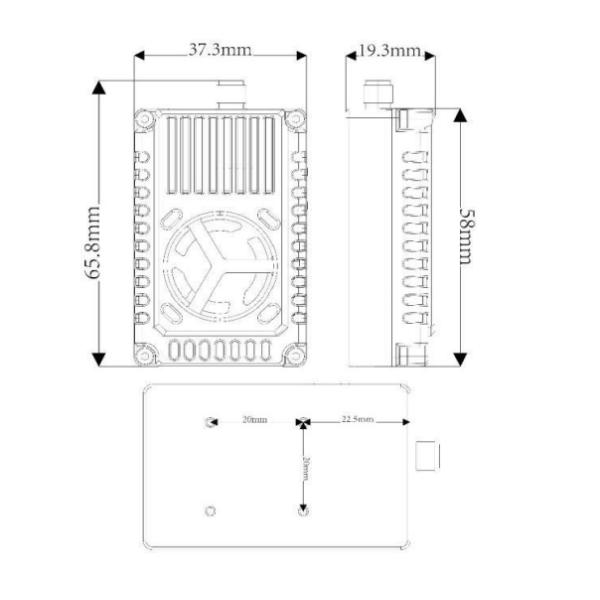

Product Dimensions
15W 5.8GHz FPV Video Transmitter High Power Wireless VTX Drone Accessories
Technical Specifications
Frequency range: 4.9GHz-6GHz (80 channels)
Max power: 15W (adjustable: 1W/4W/8W/12W/15W)
Input voltage: DC 18V-36V (supports 6-8S battery)
Antenna connector: SMA female inner hole
Smart audio: IRC Tramp
Cooling: Aluminum alloy heat sink + fan
Mounting hole spacing: 20mm×20mm/ø2mm
Dimensions: 65.8mm×37.3mm×19.3mm
Weight: 48.15g

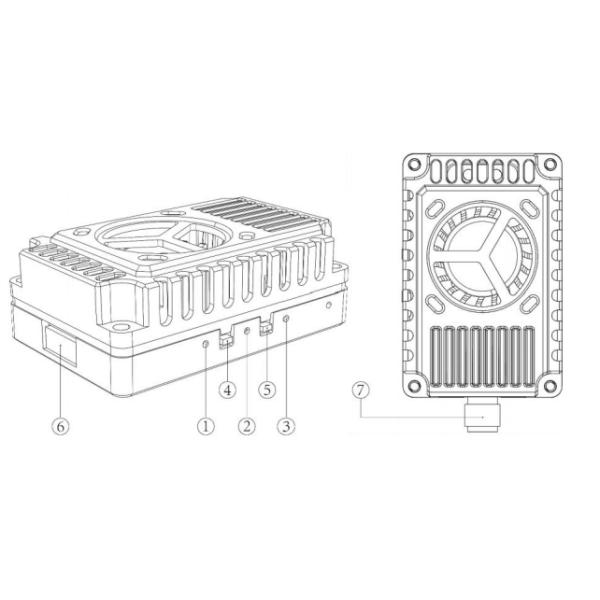

Functional Features
15W 5.8GHz FPV Video Transmitter High Power Wireless VTX Drone Accessories
  • Channel indicator: Red LED
  • Band indicator: Blue LED
  • Power indicator: Green LED
  • Band & Channel selection button
  • Power adjustment button
  • 1.0 6P Power connector
  • SMA female inner hole antenna connector
Frequency Table
Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band A 5865 5845 5825 5805 5785 5765 5745 5725
Band B 5733 5752 5771 5790 5809 5828 5847 5866
Band E 5705 5685 5665 5645 5885 5905 5925 5945
Band F 5740 5760 5780 5800 5820 5840 5860 5880
Band R 5658 5695 5732 5769 5806 5843 5880 5917
Usage Guidelines
Ensure adequate ventilation space around the VTX for proper heat dissipation to prevent overheating protection activation.
Verify correct voltage range and polarity before powering on to avoid component damage.
Always install the antenna before powering on to extend module lifespan.
Review the instruction manual before use for proper wiring and optimal performance.
Product Images
15W 5.8GHz FPV Video Transmitter High Power Wireless VTX Drone Accessories 15W 5.8GHz FPV Video Transmitter High Power Wireless VTX Drone Accessories

15W 5.8GHz FPV Video Transmitter High Power Wireless VTX Drone Accessories

15W 5.8GHz FPV Video Transmitter High Power Wireless VTX Drone Accessories
