Specifications
Brand Name :
kimpok
Model Number :
VRX3301
Certification :
CE Cerfication
Place of Origin :
china
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
3000PIECES PER MONTH
Delivery Time :
3-7 work days
Packaging Details :
international stand packing
Model :
VRX-3301
Receiving Frequency Range :
3100~3700MHz
Demodulation :
FM/PLL
IF Frequency :
480MHz
Receiving Sensitivity :
-95dBm
Input Level Range :
-95dBm ~ +5dBm
Video Output Impedance :
75Ω
Description
3.3GHz FPV Video Receiver Module VRX-3301 CVBS Output 5-36V Auto Scan
Product Description

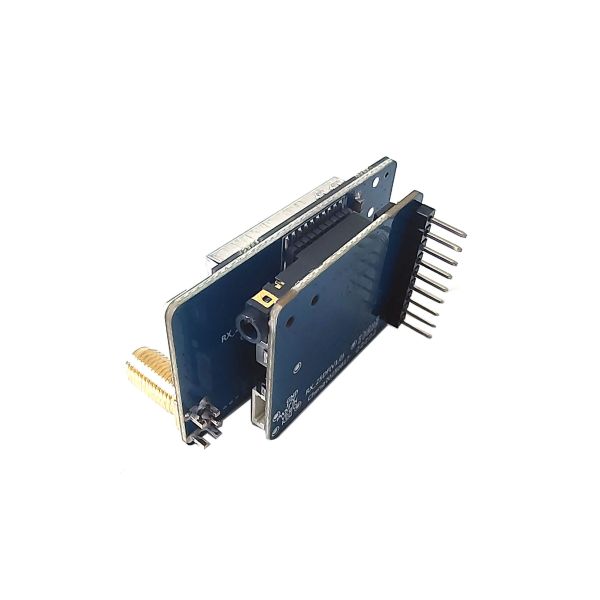

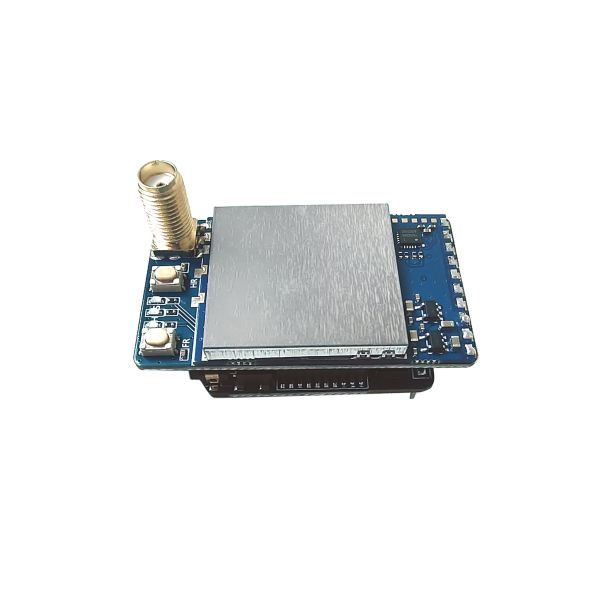

This is the VRX-3301 3.3GHz video receiver module, designed for FPV goggles and can also be used as a standalone receiver. It supports CVBS video output with a 2.5mm headphone jack and a 1.0mm flat cable interface. The input voltage ranges from 5V to 36V, accommodating various power supplies. Features include RSSI signal strength output and PWM counting pulse interface for channel adjustment. It supports manual band/channel switching and auto-scan function, ideal for FPV drone systems, wireless video surveillance, and more.

VRX-3301 3.3GHz FPV Video Receiver Module with 5-36V Wide Voltage and Auto Scan Function for FPV Drones VRX-3301 3.3GHz FPV Video Receiver Module with 5-36V Wide Voltage and Auto Scan Function for FPV Drones

Product Features
  • 3.3GHz frequency reception covering 3100~3700MHz
  • CVBS analog video output, compatible with mainstream FPV goggles
  • Wide input voltage 5-36V DC, adaptable to multiple power sources
  • Manual band/channel adjustment (8 bands * 8 channels)
  • One-key auto-scan to quickly lock the strongest signal
  • RSSI signal strength output for signal monitoring
  • PWM interface for channel control
  • Compact design, easy to integrate into various devices
Parameter Table
Parameter Specification
Model VRX-3301
Receiving Frequency Range 3100~3700MHz
Demodulation FM/PLL
IF Frequency 480MHz
Receiving Sensitivity -95dBm
Input Level Range -95dBm ~ +5dBm
Video Output Impedance 75Ω
Video Output Level 1Vp-p
Video Polarity Negative
Power Supply DC 5-36V
Current Consumption ≤250mA
Antenna Impedance 50Ω
RSSI Output Voltage 0.7V (-90dBm) ~ 1.3V (-30dBm)
Operating Temperature -10℃ ~ +65℃
Storage Temperature -30℃ ~ +85℃
Custom Attributes
  1. Model Number: VRX-3301
  2. Type: Video Receiver Module
  3. Frequency: 3.3GHz (3100-3700MHz)
  4. Input Voltage: 5-36V DC
  5. Video Output: CVBS (1Vp-p)
  6. Interfaces: 2.5mm Audio Jack, 1.0mm Pin Header
  7. Operating Temperature: -10~65℃
  8. Application: FPV Drone, Wireless Surveillance
