7.2GHz Video Receiver Module RX7500 with CVBS Output and SPI/DIP Switch Control for FPV Drones
7.2GHz Video Receiver Module RX7500 with CVBS Output and SPI/DIP Switch Control for FPV Drones
7.2GHz Video Receiver Module RX7500 with CVBS Output and SPI/DIP Switch Control for FPV Drones
7.2GHz Video Receiver Module RX7500 with CVBS Output and SPI/DIP Switch Control for FPV Drones
7.2GHz Video Receiver Module RX7500 with CVBS Output and SPI/DIP Switch Control for FPV Drones
7.2GHz Video Receiver Module RX7500 with CVBS Output and SPI/DIP Switch Control for FPV Drones
Specifications
Brand Name :
kimpok
Model Number :
7.2G VRX
Certification :
CE Cerfication
Place of Origin :
CHINA
MOQ :
1
Price :
Negotioation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
3000 pieces per month
Delivery Time :
4-7 wprk days
Packaging Details :
international standard packing
Model :
RX7500
Receiving Frequency Range :
6000~7500MHz
Demodulation :
FM/PLL
IF Frequency :
5400MHz
Receiving Sensitivity :
-95dBm
Input Level Range :
-95dBm ~ +5dBm
Video Output Impedance :
75Ω
Description

7.2GHz Video Receiver Module RX7500 CVBS Output SPI/DIP Switch Control FPV Receiver

Product Description

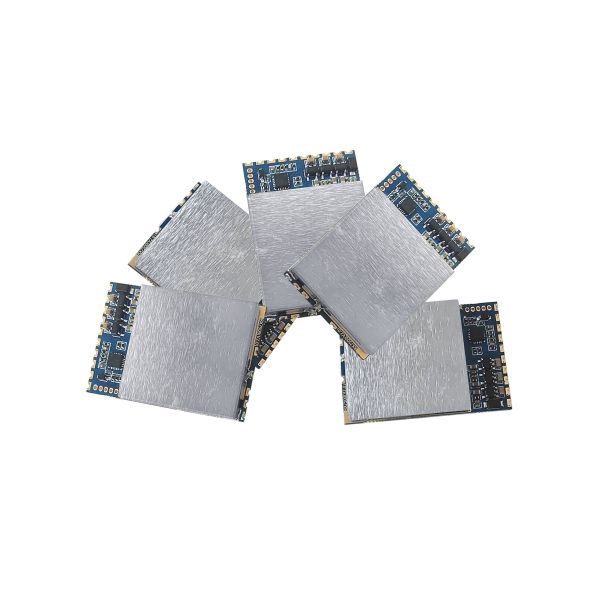

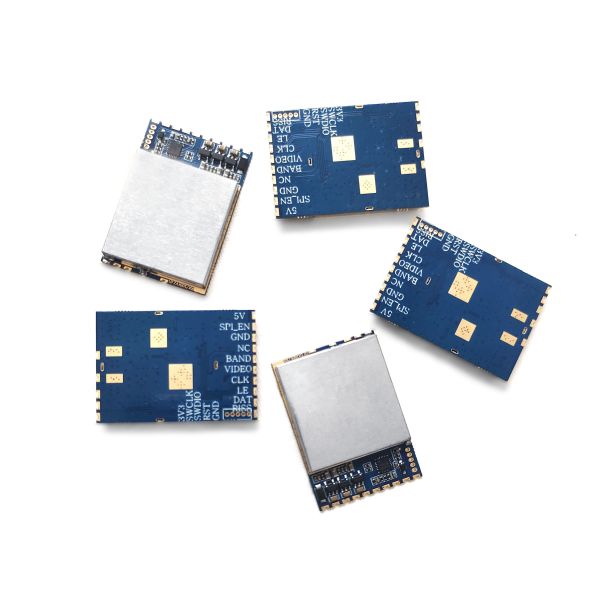

The RX7500 is a 7.2GHz video receiver module designed for FPV drones and wireless video transmission systems. It supports wideband reception from 6000 to 7500MHz with FM/PLL demodulation and provides CVBS analog video output. The module features dual control modes: DIP switches for quick selection of 16 preset channels, and SPI mode for fine frequency tuning in 1MHz steps (default 6150MHz). RSSI signal strength output is included for signal monitoring. Operating on a single 5V power supply, it is ideal for embedded video receiving applications.

7.2GHz Video Receiver Module RX7500 with CVBS Output and SPI/DIP Switch Control for FPV Drones7.2GHz Video Receiver Module RX7500 with CVBS Output and SPI/DIP Switch Control for FPV Drones


Product Features

  • 7.2GHz high-frequency reception covering 6000~7500MHz

  • Dual control modes: DIP switch (16 channels) and SPI (1MHz step, 6G~7.5G adjustable)

  • CVBS analog video output compatible with mainstream FPV goggles and monitors

  • High sensitivity of -95dBm for weak signal reception

  • RSSI output (0.6~1.2V corresponding to -90dBm~-30dBm)

  • Single 5V power supply with low power consumption (≤390mA)

  • Compact form factor for easy integration

Parameter Table



Parameter Specification
Model RX7500
Receiving Frequency Range 6000~7500MHz
Demodulation FM/PLL
IF Frequency 5400MHz
Receiving Sensitivity -95dBm
Input Level Range -95dBm ~ +5dBm
Video Output Impedance 75Ω
Video Output Level 1Vp-p
Video Polarity Negative
Power Supply DC 5.0V
Current Consumption ≤390mA
Antenna Impedance 50Ω
RSSI Output Voltage 0.6V (-90dBm) ~ 1.2V (-30dBm)
Channel Control DIP Switch (16 ch) / SPI (1MHz step)
Operating Temperature -10℃ ~ +65℃
Storage Temperature -30℃ ~ +85℃

Custom Attributes

  1. Model Number: RX7500

  2. Type: Video Receiver Module

  3. Frequency: 7.2GHz (6000-7500MHz)

  4. Input Voltage: 5V DC

  5. Video Output: CVBS (1Vp-p)

  6. Control Mode: DIP Switch/SPI

  7. Operating Temperature: -10~65℃

  8. Application: FPV Drone, Wireless Video Surveillance
