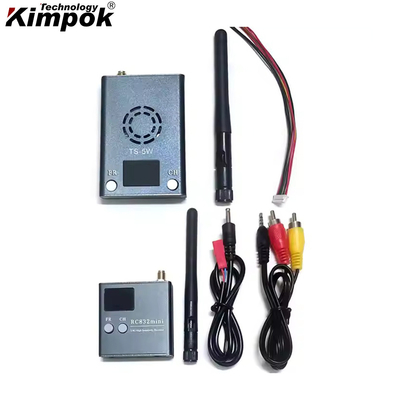

4.9G 5.8G 5W Video Transmitter Receiver System
Long range wireless AV link system with multi-channel air to ground transmission capability, designed for FPV drones and professional video transmission applications.
System Overview
This 4.9G/5.8G FPV VTX VRX 5W drone video transmitter system provides reliable 30km air-to-ground transmission with exceptional video quality and long-range performance.
Video Transmitter Specifications
| Specification |
Details |
| Modulation |
Wideband FM Modulate |
| Video Format |
NTSC/PAL |
| Antenna Connector |
SMA Connector |
| Dimensions |
72.5 * 50 * 18.5mm |
| Channels |
56 Channels |
| Transmit Power |
5W |
| Frequency |
4.9-5.8GHz |
Receiver Specifications
| Specification |
Details |
| Supply Current |
130mA |
| RF Input Matching |
50 ohm SMA |
| Video Output Voltage |
1.0Vp-p 75Ω |
| Audio Output Voltage |
1.0Vp-p 10KΩ |
| Dimensions |
50 * 50 * 15mm |
| Weight |
42.5g |
Key Features
- Long range transmission up to 30km
- Multi-channel operation with 56 channels
- High power 5W transmission capability
- Dual frequency support (4.9G/5.8G)
- Compact and lightweight receiver design
- Professional SMA antenna connectors
- Compatible with NTSC and PAL video formats
