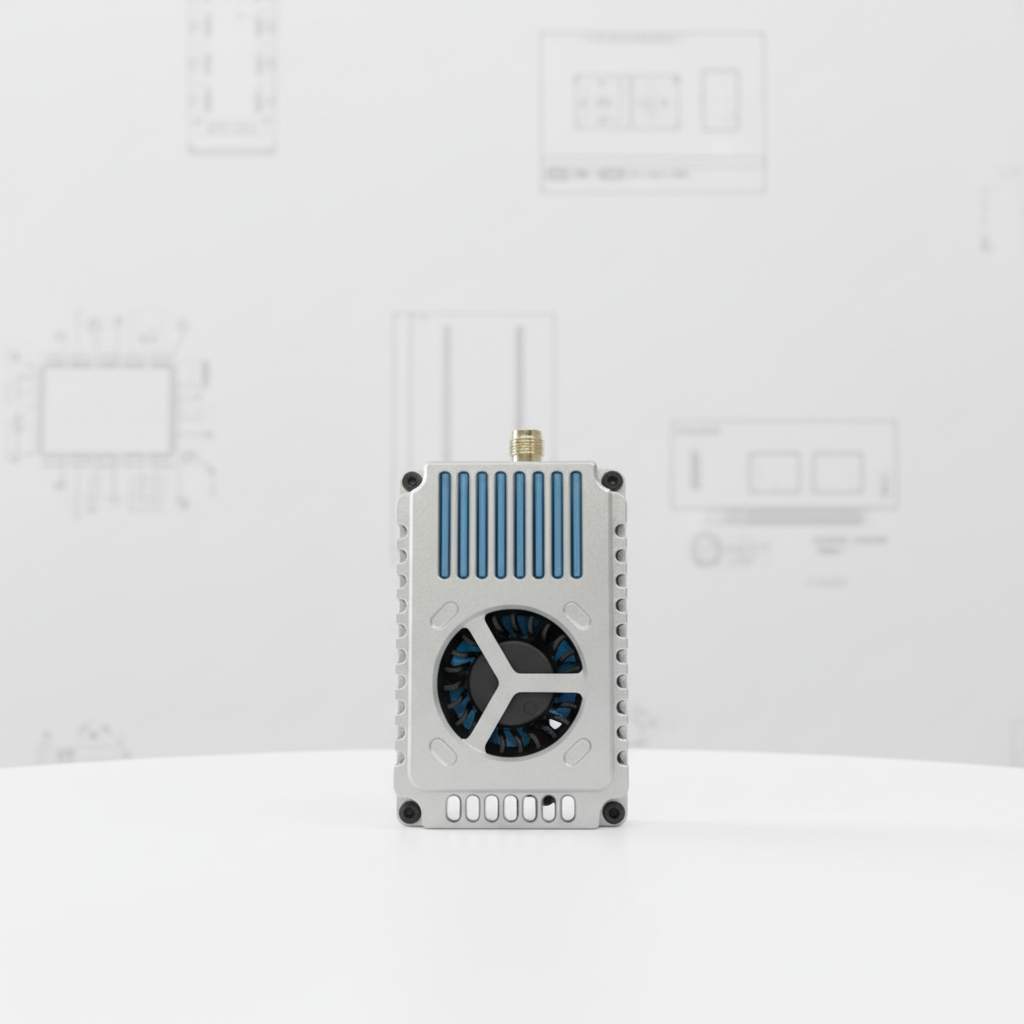

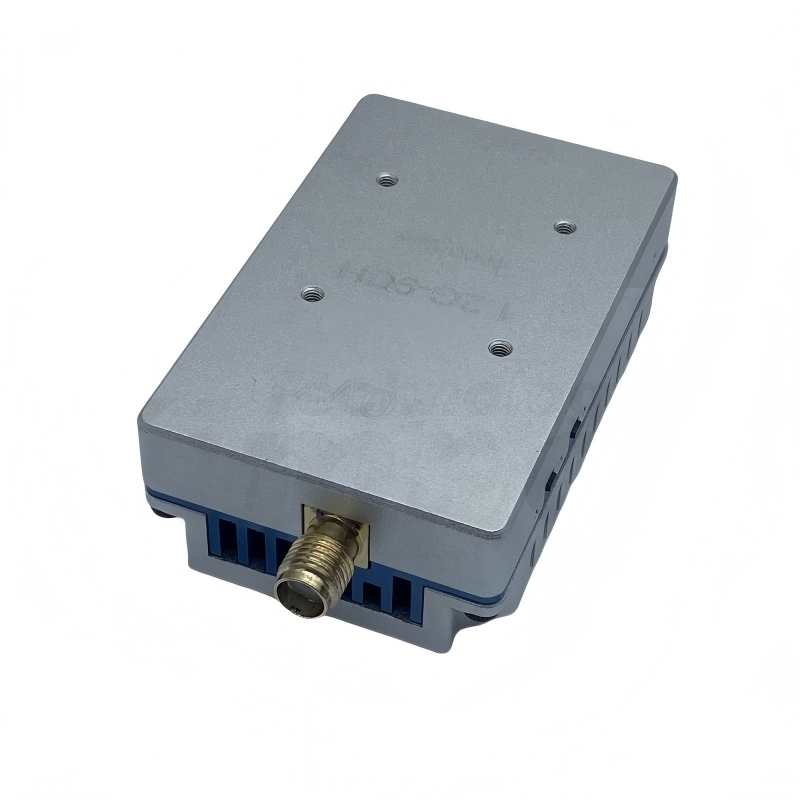

1.2GHz 10W High Power Wireless Video Transmitter 9CH Long Range FPV Image Transmission Module
1.2GHz 10W High Power Wireless Video Transmitter 9CH Long Range FPV Image Transmission Module
1.2GHz 10W High Power Wireless Video Transmitter 9CH Long Range FPV Image Transmission Module
1.2GHz 10W High Power Wireless Video Transmitter 9CH Long Range FPV Image Transmission Module
1.2GHz 10W High Power Wireless Video Transmitter 9CH Long Range FPV Image Transmission Module
1.2GHz 10W High Power Wireless Video Transmitter 9CH Long Range FPV Image Transmission Module
Specifications
Brand Name :
Kimpok
Model Number :
KP-T12A10
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
5,000 pieces per month
Delivery Time :
5-7 work days
Packaging Details :
International Standard Packing
Frequency :
1.2Ghz(1080M-1360M)
Type :
Analog Video Transmitter
Channel :
9 Channel
Protocol :
IRC Tramp
Power Supply :
DC 7-36V 2-8S
Description
1.2GHz 10W Wireless Video Transmitter 9CH High Power Long Range Image Transmission Module
This high-power wireless video transmitter module delivers reliable long-range image transmission with adjustable power output and comprehensive temperature protection.
Technical Specifications
Frequency Range 1.2GHz 9CH: 1080MHz-1360MHz
Maximum Power 10W (adjustable: 1W/2.5W/5W/7.5W/10W)
Input Voltage DC 15V-36V, supports 4-8S battery input
Antenna Connector SMA Female inner hole
Smart Audio IRC Tramp
Heat Dissipation Aluminum alloy shell with heat sink & fan
Hole Spacing 20mm*20mm/ø2mm
Dimensions 65.8mm * 37.3mm * 19.3mm
Weight 48.15g
Functional Features
  • Channel indicator: Red LED
  • Band indicator: Blue LED
  • Power indicator: Green LED
  • Band & Channel changer button
  • Power changer button
  • 1.0 6P Power connector
  • SMA Female inner hole antenna connector
Temperature Protection Note: This image transmission device includes temperature protection functionality. When the device temperature exceeds 100°C, the transmission power will automatically reduce by one level. If the temperature remains above 100°C, power will continue to decrease incrementally until reaching the minimum power level (25mW). Once the temperature drops to 95°C, the transmission power automatically returns to the originally set level.
