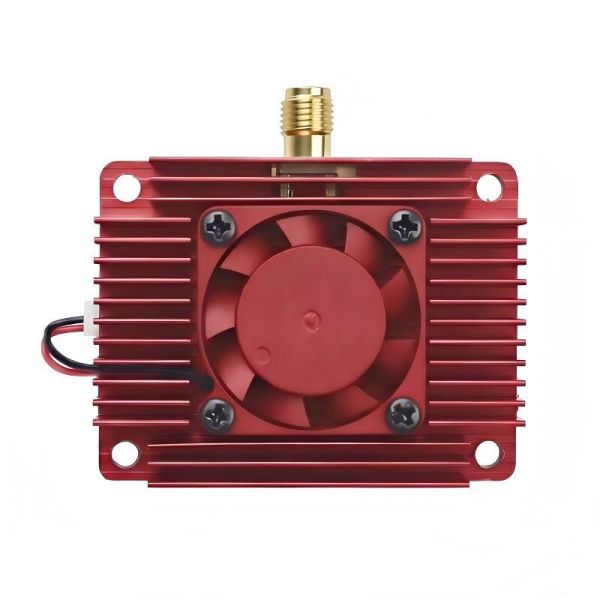

Kimpok Ultra Long Range 8.0–8.8GHz 4W Output Power 40CH FPV Video Transmitter with Smart Audio
Kimpok Ultra Long Range 8.0–8.8GHz 4W Output Power 40CH FPV Video Transmitter with Smart Audio
Kimpok Ultra Long Range 8.0–8.8GHz 4W Output Power 40CH FPV Video Transmitter with Smart Audio
Kimpok Ultra Long Range 8.0–8.8GHz 4W Output Power 40CH FPV Video Transmitter with Smart Audio
Kimpok Ultra Long Range 8.0–8.8GHz 4W Output Power 40CH FPV Video Transmitter with Smart Audio
Kimpok Ultra Long Range 8.0–8.8GHz 4W Output Power 40CH FPV Video Transmitter with Smart Audio
Specifications
Brand Name :
Kimpok
Model Number :
THOR T89
Certification :
CE Cerficatioin
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
L/C,Western Union,Paypal
Supply Ability :
3,000 piece per month
Delivery Time :
5-7 work days
Packaging Details :
International Standard Packing
Input voltage :
16V to 28V
Extra features :
Smart audio
Output power :
25MW\200MW\800MW\1W\4W
Antenna connector :
SMA
Cable connector :
JST, 6pin
Dimensions :
47 (W)x36 (D) mm, 41.5 x 30.5mm (hole)
Weight :
34g
Description
Kimpok Ultra Long Range 8.0–8.8GHz Thor T89 Video Transmitter
The PeakFPV T89 transmitter stands out as a highly specialized and powerful FPV video transmitter. Its unique combination of an ultra-high frequency band, extremely high power output, and advanced control makes it a formidable tool for specific applications.
Key Features
  • Ultra-Clean, Interference-Free Spectrum (8.0-8.8GHz)
  • Exceptional Power Output for Signal Dominance (4W / 4000mW Max)
  • Fine-Grained Power Control with 5 Selectable Levels
  • Smart Audio Protocol for Seamless Integration
  • 40 Channels for Clear Frequency Selection
  • Built-in Cooling Fan + Heat-Sink System
Technical Specifications
Brand Name PeakFPV
Model Thor T89
Transmitter Type Analog Video Transmitter
Frequency Range 8000MHz-8780MHz
Channels 40CH
Input Voltage 16-28V
Output Power 25mW / 200mW / 800mW / 1000mW / 4000mW
Antenna Connector SMA
Dimensions 47x36mm
Weight 34g
Material Aluminum
Frequency Table
Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band A 8020 8040 8060 8080 8100 8120 8140 8160
Band B 8180 8200 8220 8240 8260 8280 8300 8320
Band E 8340 8360 8380 8400 8420 8440 8460 8480
Band F 8500 8520 8540 8560 8580 8600 8620 8640
Band R 8660 8680 8700 8720 8740 8760 8780 8800
Application Benefits
Ultra-Clean, Interference-Free Spectrum
Operating in the 8.0-8.8GHz band provides exceptional signal clarity, free from common RF interference found in crowded 2.4GHz and 5.8GHz bands. Perfect for urban environments and multi-pilot events.
Exceptional Power Output
With maximum output of 4000mW (4W), the T89 delivers superior signal penetration and range, maintaining robust video links even at extended distances.
Smart Audio Integration
Change channels, bands, and power levels directly from your goggles' OSD menu via transmitter switches, enabling safe and convenient in-flight adjustments.
Package Contents
1x VTX, 1x Cable
