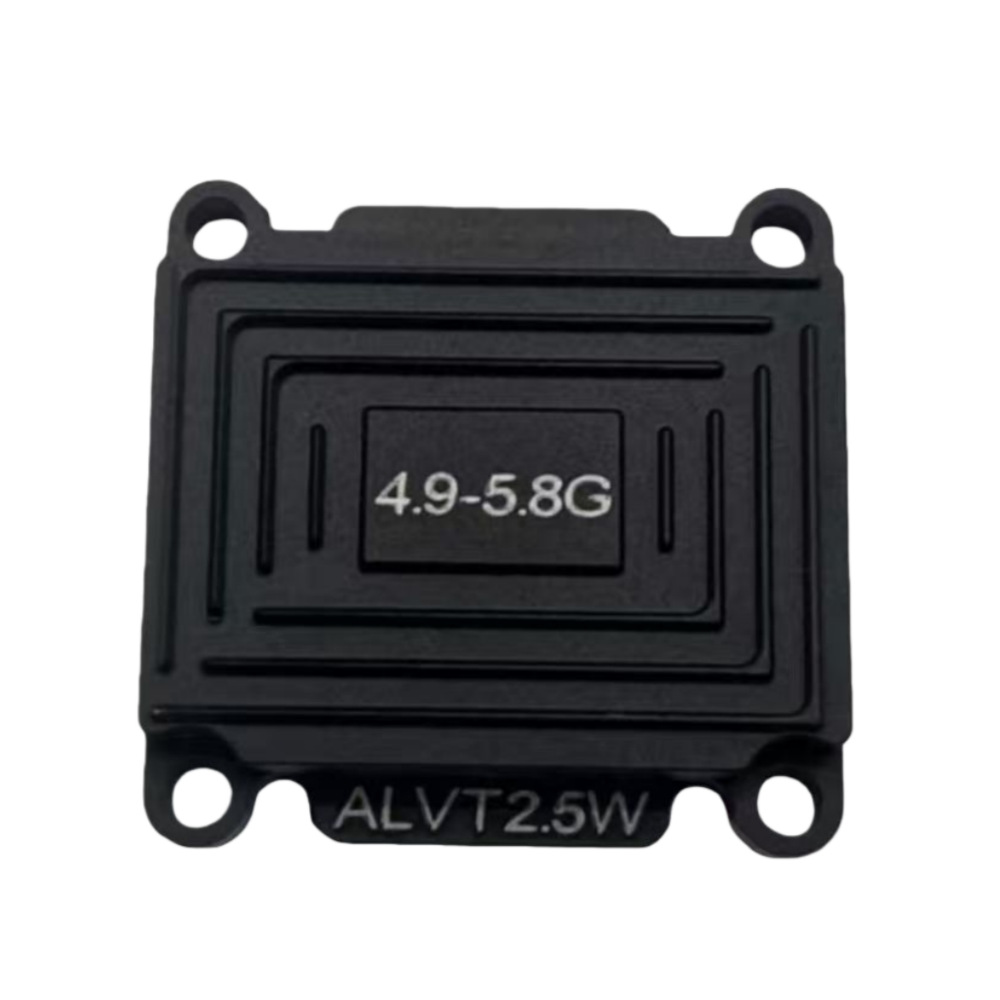

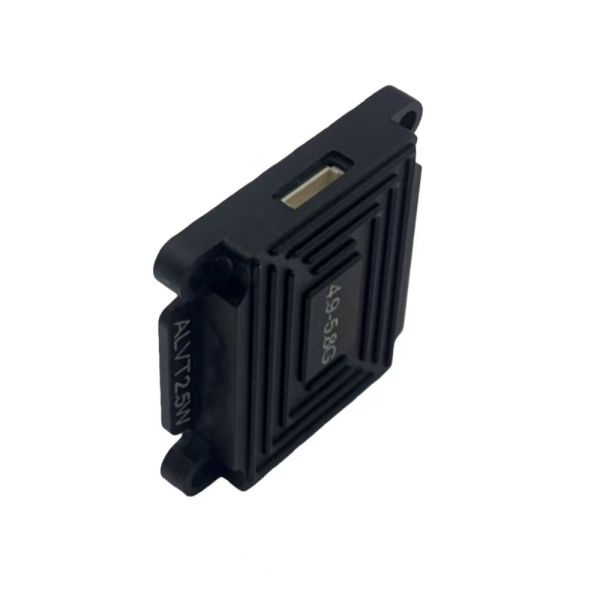

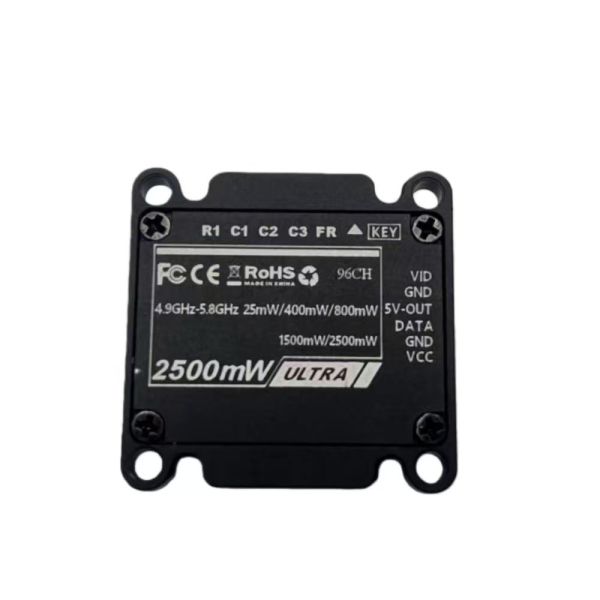

FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission
FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission
FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission
FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission
FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission
FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission
FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission
FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission
FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission
FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission
Specifications
Brand Name :
Kimpok Technology
Model Number :
ALVT2.5W
Place of Origin :
China
Packaging Details :
International standard packing
Supply Ability :
5000/month
Price :
Negotiation
Certification :
CE Cerfication
MOQ :
1 Piece
Payment Terms :
T/T, PayPal, Alipay
Delivery Time :
3-7 work days
Type :
Professional Amplifier
Frequency Range :
4.9-5.8G
Frequency :
64CH
RF Output Power :
2.5W
iInput voltage :
7-36V
Protocol :
IRC Tramp
Description

FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission

Engineered for extreme-distance FPV pilots and commercial drone operators, this high-power video transmitter unlocks unparalleled signal reach. Operating on the 3.3GHz band with a massive 7W output, it is designed for crystal-clear video at theoretical line-of-sight (LOS) ranges of 30-40 kilometers.

Its robust 64-channel frequency selection provides exceptional flexibility to find a clean signal in any environment. The integrated high-quality aluminum alloy heatsink is critical for managing the significant thermal load, ensuring stable performance and reliability during extended use. Housed in a lightweight yet durable package, this VTX is built to be the cornerstone of any serious long-range build.

Specification:

Input voltage 7-36V
RF power 2.5W (25mW/400mW/800mW/1500mW/2500mW)
Frequency 4884-6055Mhz
Channel 64CH

Current consumption

≤450mA@12V, 800mW

≤850mA@12V, 2500mW
Output voltage 5V
Extra Feature IRC-Tramp
Antenna connector MMCX
Cable connector JST-6 pin
Dimension 36*35*7mm; 30.5*30.5mm(hole)
Weight 18.2g

FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission

FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission

FPV VTX 4.9G-5.8G 2.5W Video Transmitter Lightweight 10km Drone Transmission

Package:

Transmitter*1pc

Antenna*1pc

6Pin SH1.0 Wire*1pc

Antenna connector*1pc
