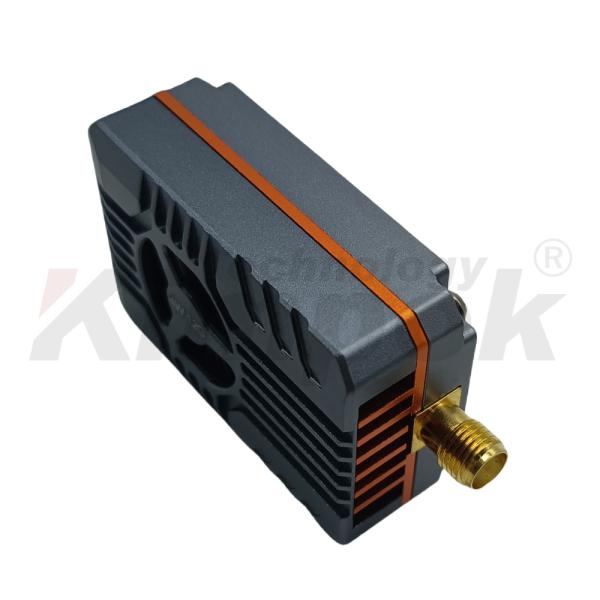

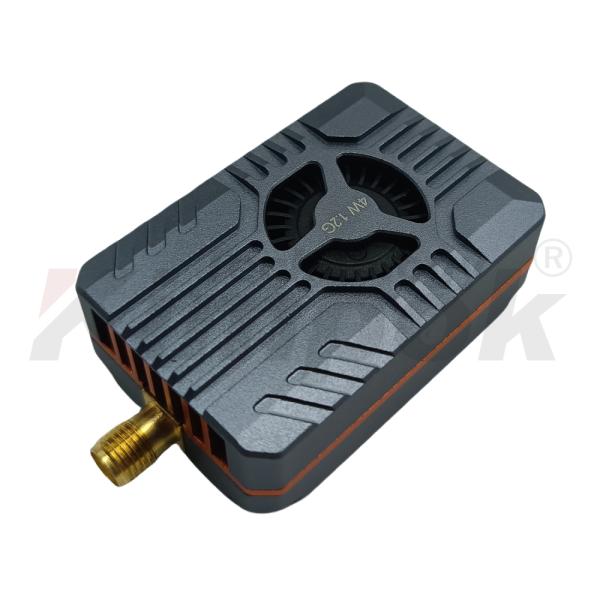

1.2GHz 4.5W FPV Video Transmitter 16CH Long-Range Analog VTX for Drones
1.2GHz 4.5W FPV Video Transmitter 16CH Long-Range Analog VTX for Drones
1.2GHz 4.5W FPV Video Transmitter 16CH Long-Range Analog VTX for Drones
1.2GHz 4.5W FPV Video Transmitter 16CH Long-Range Analog VTX for Drones
1.2GHz 4.5W FPV Video Transmitter 16CH Long-Range Analog VTX for Drones
1.2GHz 4.5W FPV Video Transmitter 16CH Long-Range Analog VTX for Drones
Specifications
Channel customer :
16
Profile dimension :
48.5mm(L) * 35mm(W) * 21.5mm(H)
Modulation type :
FM
Control Protocol :
IRC
Frequency band :
1080~1360MHz
Brand Name :
Kimpok
Model Number :
1.2G 4.5W
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,Western Union,Paypal
Supply Ability :
3,000 pieces per month
Delivery Time :
3-7 work days
Packaging Details :
Internation standard packing
Description
1.2GHz 4.5W FPV Video Transmitter 16CH Long-Range Analog VTX for Drones
Product Overview

The 1.2G 4.5W FPV Video Transmitter is engineered for long-range drone image transmission, delivering high power output with minimal latency and excellent anti-interference capabilities. Its integrated aluminum heat sink and cooling fan ensure stable performance during prolonged operation. With IRC protocol OSD parameter adjustment capability, this compact and lightweight transmitter is perfect for both professional pilots and drone enthusiasts.

Key Features
  • Adjustable Power Levels: PIT, 25mW, 200mW, 2W, and 4.5W output modes
  • 16 Selectable Channels: Frequency coverage from 1080MHz to 1360MHz
  • Low Latency & Strong Anti-Interference: Provides stable, clear image transmission
  • Wide Voltage Input: Supports DC 7V-30V for enhanced compatibility
  • Built-in Protection: Temperature control prevents overheating damage
  • Lightweight Design: Only about 38.8g, easy to mount on various drones
Performance Advantages
  • Long-Range Performance: 4.5W high-power output ensures reliable transmission over extended distances
  • High Reliability: Fan + heat sink combination improves stability and extends lifespan
  • Flexible Control: IRC protocol support for remote power and channel adjustment
  • Versatile Applications: Suitable for racing, aerial photography, industrial inspection, and outdoor use
Technical Specifications
Item Specification
Input Voltage DC 7V ~ 30V
Output Voltage DC 5V
Frequency Range 1080 ~ 1360 MHz
Channel Count 16CH (Band A/B)
Modulation Type FM
Frequency Control PLL
Frequency Stability ±100KHz (Typ.)
Frequency Accuracy ±200KHz (Typ.)
S/N Ratio >55dBc
Antenna Port SMA (50 Ohms)
Video Input CVBS 1Vp-p ±0.2V
Control Protocol IRC
Power Levels PIT / 25mW / 200mW / 2W / 4.5W
Dimensions 48.5 * 35 * 21.5 mm
Weight Approx. 38.8g
Operating Temp. -10℃ ~ +60℃
Product Images
1.2GHz 4.5W FPV Video Transmitter 16CH Long-Range Analog VTX for Drones
1.2GHz 4.5W FPV Video Transmitter 16CH Long-Range Analog VTX for Drones
1.2GHz 4.5W FPV Video Transmitter 16CH Long-Range Analog VTX for Drones
1.2GHz 4.5W FPV Video Transmitter 16CH Long-Range Analog VTX for Drones
Typical Applications
  • FPV drone racing
  • Aerial photography and videography
  • Industrial UAV inspection and mapping
  • Outdoor long-distance video transmission
