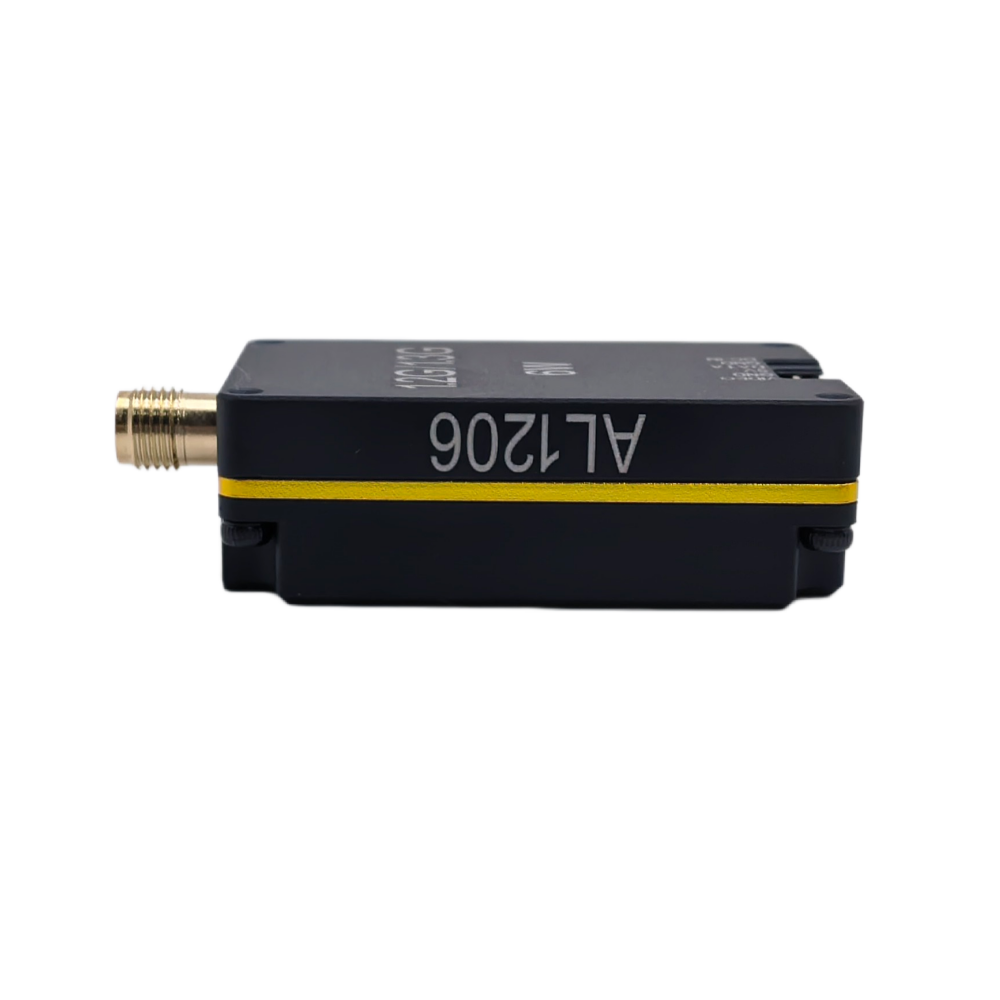

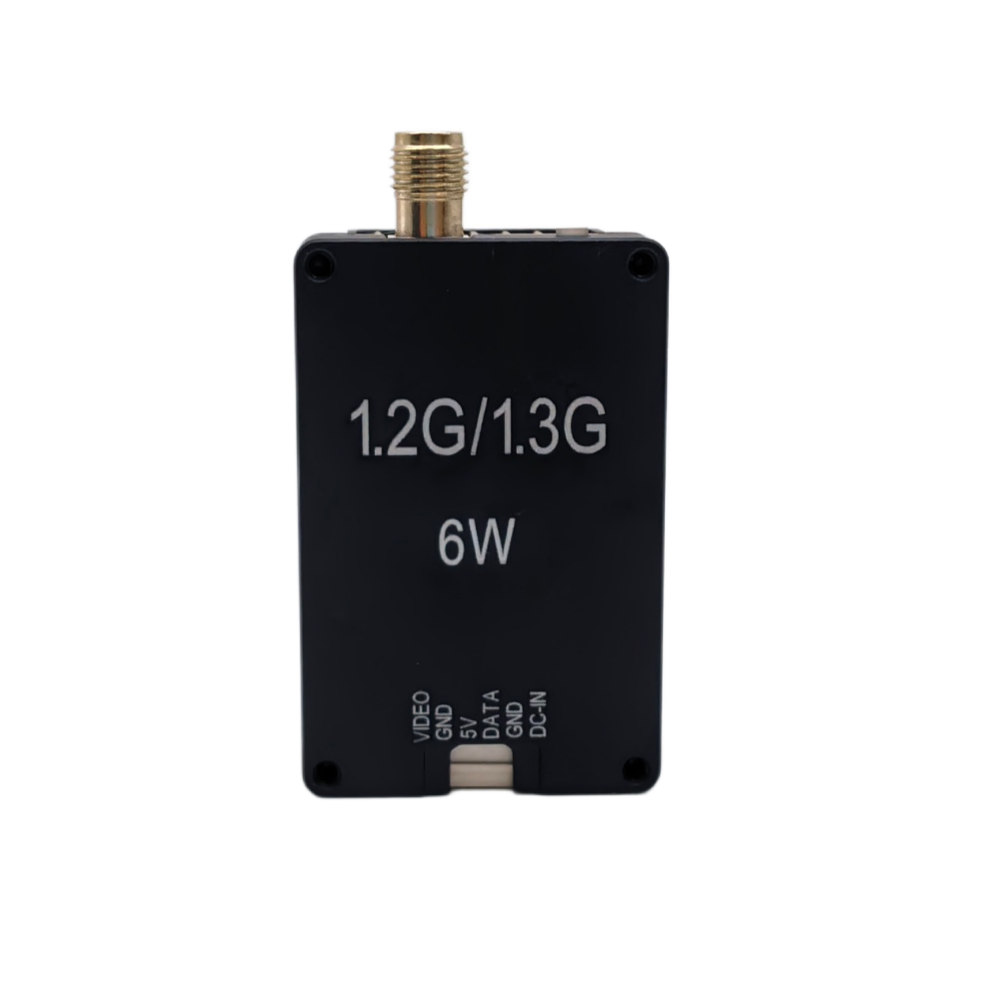

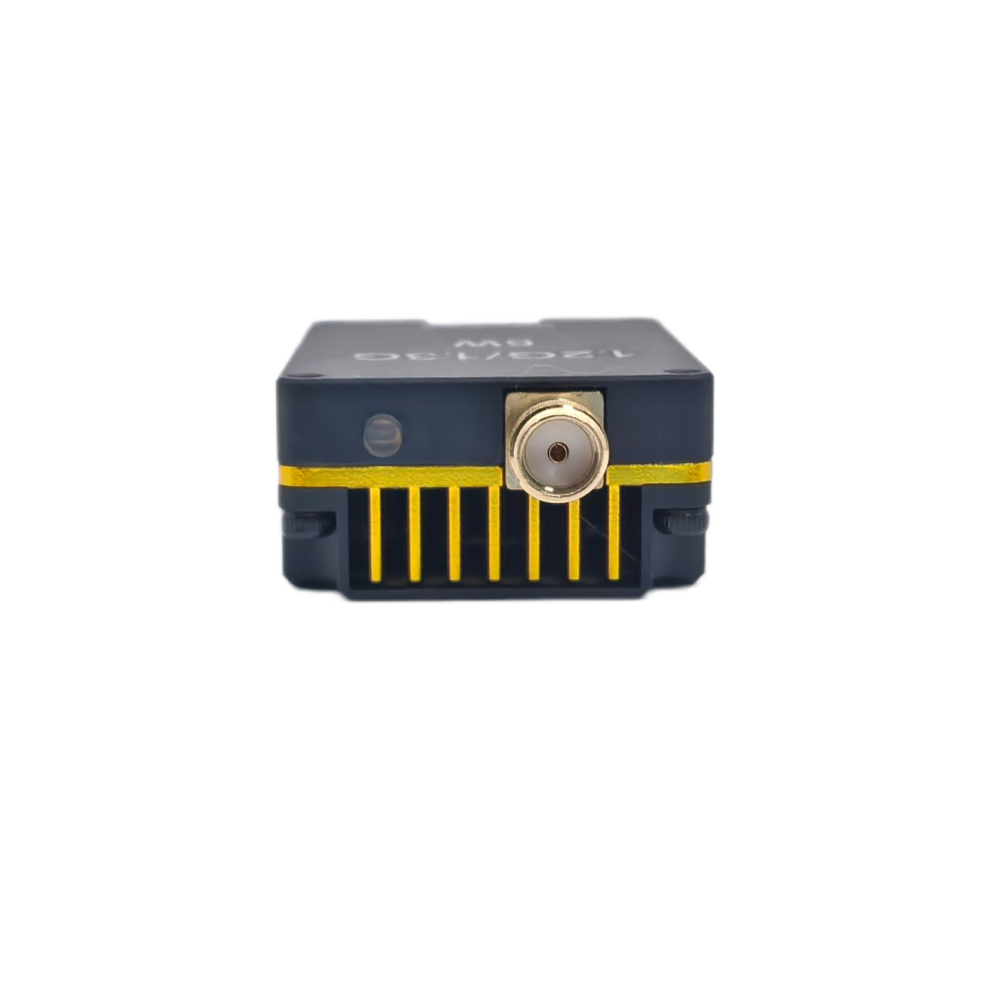

Kimpok AL1306 1.2GHz 1.3GHz 6W High Power Analog Video Transmitter Module Long Range Wireless Transmission

Product Introduction

The AirLink-T AL1306 is a high-performance 1.2GHz/1.3GHz wireless data transmission module designed for long-range analog signal transmission applications. Operating within the 1080–1360MHz frequency range, it provides up to 6W RF output power with multiple adjustable power levels, offering flexible solutions for various long-distance communication requirements.

Featuring advanced digital PLL frequency control technology, precise power calibration, and a durable three-layer aluminum alloy housing, the AL1306 delivers excellent frequency stability and reliable performance. The integrated high-speed centrifugal cooling fan ensures efficient heat dissipation during continuous high-power operation.

With support for 16 selectable channels and IRC Tramp protocol control, the AL1306 enables convenient configuration, accurate parameter adjustment, and easy integration into professional wireless transmission systems.

Key Features

1. High Power Output & Adjustable Power Levels

• Maximum RF output power up to 6W
• Multiple selectable power modes:
  • PIT Mode
  • 25mW
  • 200mW
  • 1W
  • 6W
• Designed for long-range analog signal transmission applications

2. Wide Frequency Range & Flexible Channel Selection

• Operating frequency: 1080MHz–1360MHz
• Supports 16 selectable channels
• Provides flexible frequency configuration for different environments

3. High Stability PLL Frequency Control

• Integrated digital PLL synthesizer technology
• Frequency accuracy: ±200KHz
• Maintains stable frequency output with minimal drift during continuous operation

4. Efficient Thermal Management Design

• Rugged three-layer aluminum alloy enclosure
• Built-in high-speed centrifugal cooling fan
• Optimized heat dissipation for reliable high-power performance

5. Smart Control & Easy Integration

• Supports IRC Tramp control protocol
• Allows convenient parameter adjustment through compatible controllers
• Simplifies system setup and maintenance

Applications

• Long-range wireless video transmission
• Analog signal communication systems
• Industrial monitoring systems
• Remote communication equipment
• Professional wireless transmission solutions
