FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
Specifications
Brand Name :
Kimpok
Model Number :
KP-22VTX16W
Certification :
CE certificate
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,L/C,Paypal,Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
3-7 working days
Packaging Details :
International standard packing
Description
FPV 2.2G 1.6W VTX 2.2Ghz Video Transmitter and Receiver
Product Overview
High-performance drone video transmitter and receiver system for clear audio/video transmission with multiple power output options.
Key Specifications
Brand:
Kimpok
Model:
KP-22VTX16W
Certification:
CE Certification
Type:
Wireless Video Transmitter
Channels:
8 Channels
Modulation:
FM
System:
FPV System
Main Features
  • 8-channel frequency selection
  • Supports IRC Tramp protocol with OSD parameter tuning
  • Adjustable power output: PIT 25mW, 200mW, 1600mW
  • Wide voltage input: 7-36V DC (2-6S)
  • 5V voltage output capability
  • Standard 30.5×30.5mm mounting pattern (M3 holes)
Transmitter Specifications
Parameter Value
Input Voltage 7-36V DC (2-6S)
Output Voltage 5V/0.5A
Weight 22g (without antenna)
Dimensions 37×46×17.5mm (including SMA head, fan)
Video Format PAL/NTSC
Frequency Range 2000MHz to 2280MHz (8 channels)
Transmission Power 33dBm±1dBm (Max)
Power Output 25mW, 200mW, 1600mW
Antenna Interface SMA (outer tooth inner hole)
Receiver Features
  • 8-channel compatibility
  • Direct connection to VR headsets (FatShark, Skyzone) and analog displays
  • High sensitivity reception (-97dBm)
  • 7-36V power input range
  • 5V voltage output
  • Touch switch for quick channel changes

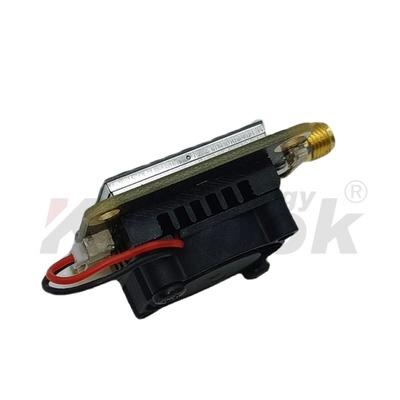

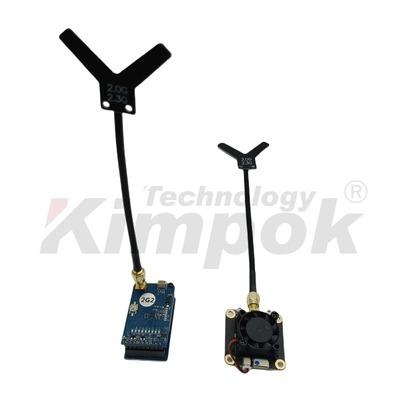

Product Images
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
FPV 2.2G 1.6W VTX Video Transmitter 25mW 200mW 1600mW
Trading Information
Minimum Order:
1 piece
Packaging:
International standard
Delivery Time:
3-7 work days
Payment Terms:
Western Union, PayPal, T/T
Supply Capacity:
5000 pieces/month
