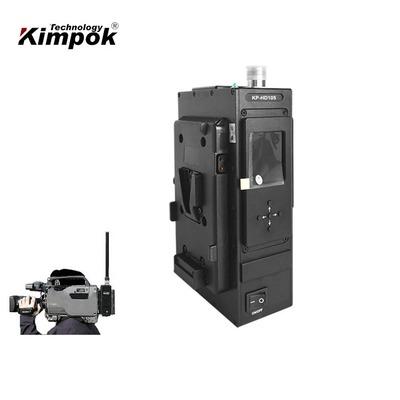

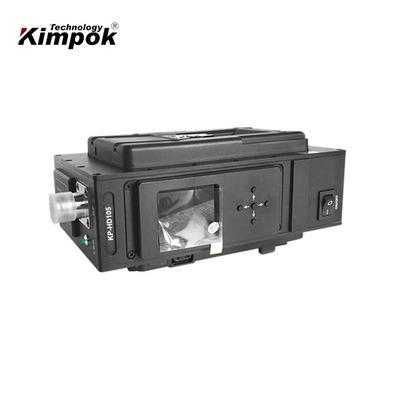

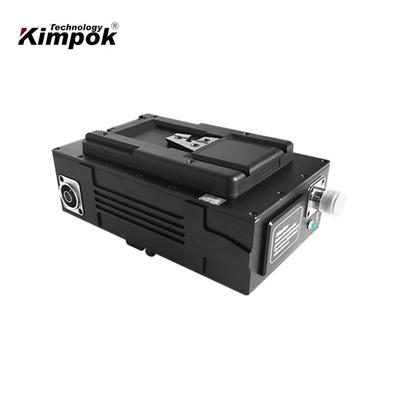

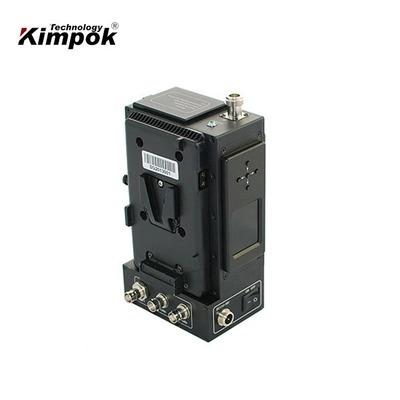

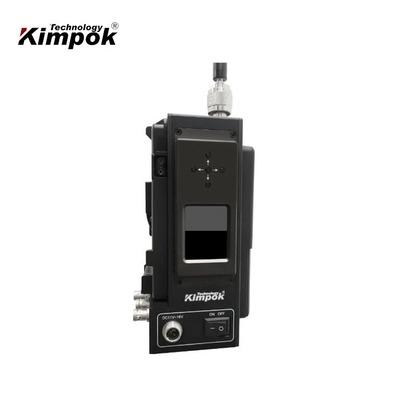

5W COFDM Wireless Video Transmitter 300-900MHz 10-15km Range
5W COFDM Wireless Video Transmitter 300-900MHz 10-15km Range
5W COFDM Wireless Video Transmitter 300-900MHz 10-15km Range
5W COFDM Wireless Video Transmitter 300-900MHz 10-15km Range
5W COFDM Wireless Video Transmitter 300-900MHz 10-15km Range
5W COFDM Wireless Video Transmitter 300-900MHz 10-15km Range
5W COFDM Wireless Video Transmitter 300-900MHz 10-15km Range
5W COFDM Wireless Video Transmitter 300-900MHz 10-15km Range
5W COFDM Wireless Video Transmitter 300-900MHz 10-15km Range
5W COFDM Wireless Video Transmitter 300-900MHz 10-15km Range
Specifications
Brand Name :
Kimpok
Model Number :
KP-HD105
Certification :
CE certificate
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
International standard packing
Description
Detail Information
Place of Origin:
China
Brand Name:
Kimpok Technology
Certification:
CE Cerfication
Model Number:
KP-HD105
Modulation::
COFDM
RF Power::
5W
Video Encoding::
H.264/H.265
Frequency::
300-900Mhz Or Other Band Customized
Distance::
10~15km LOS; 2~5km NLOS
Encryption::
AES128/256bits
Highlight:

cofdm video transmitter

,

cofdm transmitter

,

cofdm wireless video transmitter

Trading Information
Minimum Order Quantity:
1 Piece
Price:
Negotiation
Packaging Details:
International standard packing
Delivery Time:
3-7 work days
Payment Terms:
T/T, PayPal, Alipay
Supply Ability:
5000/month
Product Description

Kimpok Broadcast HD Video Transmitter 5W COFDM Wireless Video Sender Real Time Transmission


1080P Full HD COFDM Transmitter Feature:

  • COFDM modulation, stability signal
  • HD and BNC input
  • Bandwidth 2/2.5/4/8MHz adjustable
  • Balanced stereo audio input.
  • Dual V battery mounts
  • 1~5W RF power output adjustable
  • Live broadcasting, low delay time
  • H.264/H.265 video coding

Specifications:

Power supply
DC Input DC11-16V
Working Current 1.9A@12V
Output Power 1~5Watt
Video transmission:
Frequency range Output

300-900MHz(optional),

1.0-1.4G/2.3-2.5G/4-4.4GHz(customized)
Modulation COFDM,2K ,QPSK
RF bandwidth 4/8MHz(adjustable)
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K,8K
Flatness Full band≤2dB,8MHz≤0.5dB
AV input BNC: D1 standard definition
H-D-M-I: HD1080i/1080P, 720P, 576, 480
SDI:HD1080i/1080P, 720P, 576, 480
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB
Audio transmission
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
Audio channel Stereo L/R audio channel
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
Encoding
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution

Minimum 1280*720@50i

Maximum 1920×1080P/I@60hz
Video coding H.264/H.265
Video rate 500kbps-16.68Mbps(autoadaptation)
Max speed rate 450km/h
Format YCbCr4:2:2
Working Environment
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Appearance
Dimension 180*110*85mm(with dual V mounts)
Weight 1.6kg
