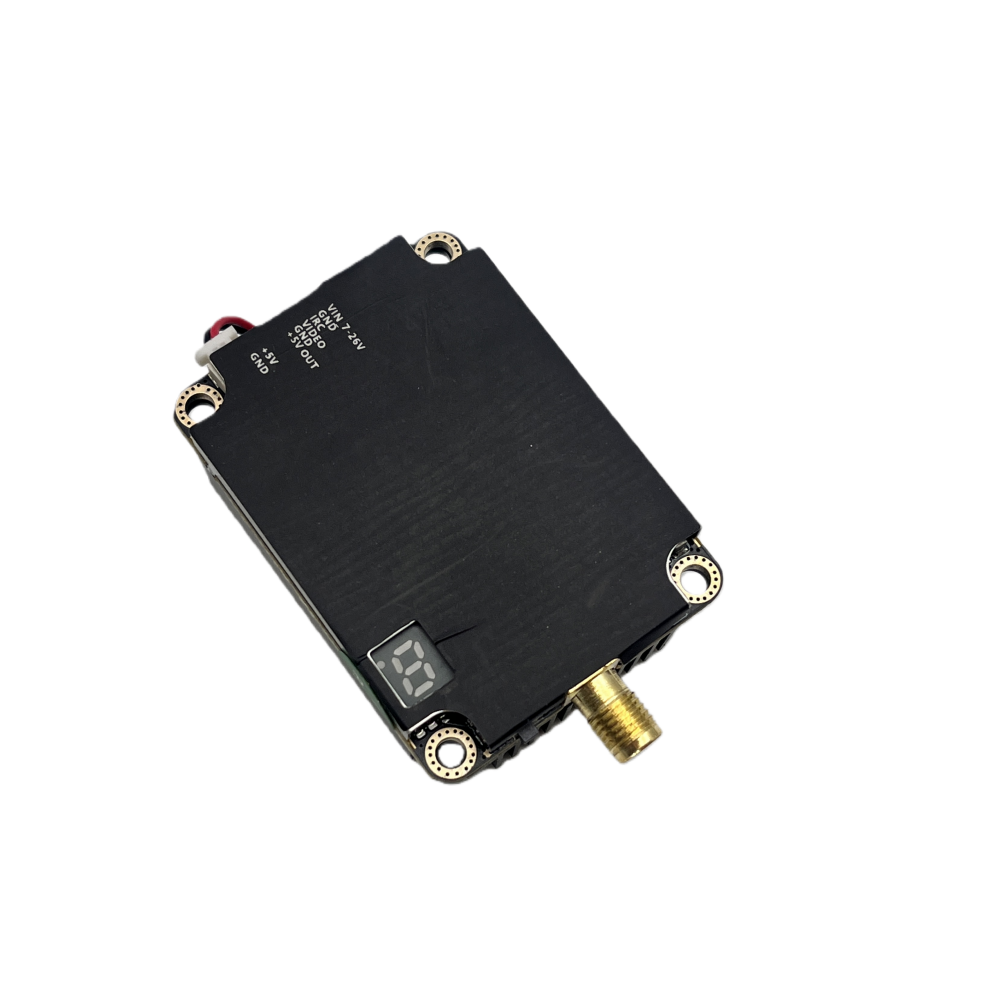

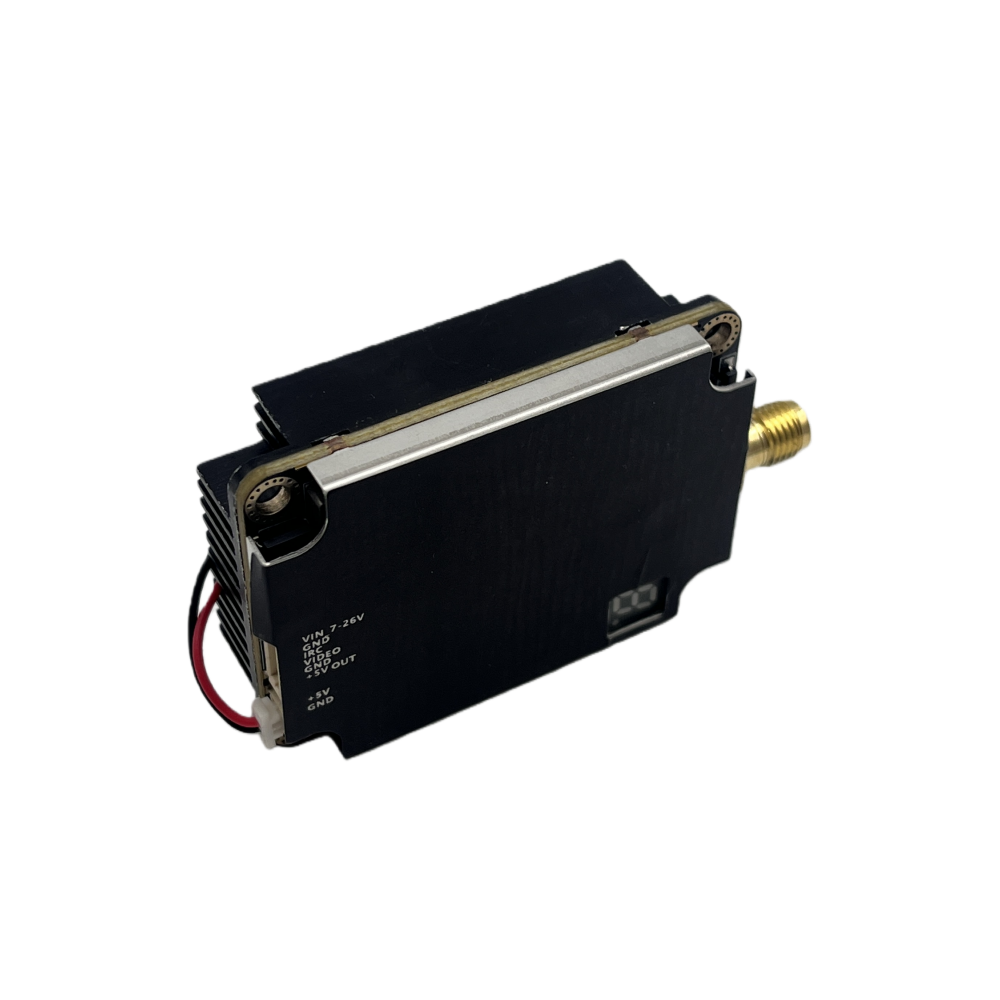

3.3GHz 7W High Power Long-Range Video Transmitter 64CH for FPV VTX and Drone Applications
3.3GHz 7W High Power Long-Range Video Transmitter 64CH for FPV VTX and Drone Applications
3.3GHz 7W High Power Long-Range Video Transmitter 64CH for FPV VTX and Drone Applications
3.3GHz 7W High Power Long-Range Video Transmitter 64CH for FPV VTX and Drone Applications
3.3GHz 7W High Power Long-Range Video Transmitter 64CH for FPV VTX and Drone Applications
3.3GHz 7W High Power Long-Range Video Transmitter 64CH for FPV VTX and Drone Applications
Specifications
Brand Name :
Kimpok
Model Number :
ALV3307AC
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
L/C,Western Union,Paypal
Supply Ability :
1,000 pieces per month
Delivery Time :
5-7 work days
Packaging Details :
International Standard Packing
Channel :
64 Channel
Frequency :
3.3G
Antenna Connector :
SMA
RF Power :
7 Walt
Input Voltage :
7-26V
Description

3.3GHz 7W High Power Long-Range Video Transmitter 64CH 3060–3500MHz

Product Specifications

Item Specification
Input Voltage 7–26V
Output Power 2000mW / 7000mW (Switchable)
Frequency Range 3060–3500MHz
Channels 64CH
IRC Support Yes
Camera Power Output 5V @ max 500mA
Microphone Not supported
Antenna Connector SMA
Cable Connector JST, 6Pin
Dimensions 50 × 36 × 16 mm (30 × 44.5 mm mounting holes)
Weight 40.4 g
Kit Contents 1× VTX, 1× Cable, 1× Antenna

Key Features

  • Full IRC data transmission support

  • Switchable output power: 2000mW / 7000mW

  • Integrated cooling fan for enhanced thermal management

  • OSD configuration via IRC protocol

  • Wide 7–26V input voltage range with stable 5V camera output

  • Button-based control for channel, band, and power selection

Button Control Operation

Channel Selection

  • Short press to cycle through 8 channels within the selected band

Band Selection

  • Press and hold for 2 seconds until the LED displays a band letter

  • Short press to select from 8 bands (A–H)

Power Selection

  • Press and hold for 4 seconds until the LED flashes rapidly

  • Short press to select power level:

    • 1 = 2000mW

    • 2 = 7000mW

Pit Mode (P Mode)

  • Press and hold for 5 seconds until the LED displays “P” (0dBm output)

  • Press and hold again for 5 seconds to exit Pit Mode

Protection & Safety Features

Slow Power-On Protection

  • 3-second delayed power amplifier activation reduces the risk of damage from instantaneous power surges

Thermal Protection

  • Active cooling system ensures reliable and stable operation under sustained 7W high-power output

Pit Mode Support

  • Full IRC control with dedicated Pit Mode for safe setup and testing in multi-device environments

Frequency Channels (3060–3500MHz)

Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A 3360 3380 3400 3420 3440 3460 3480 3500
B 3200 3220 3240 3260 3280 3300 3320 3340
C 3330 3350 3370 3390 3410 3430 3450 3470
D 3170 3190 3210 3230 3250 3270 3290 3310
E 3320 3345 3370 3395 3420 3445 3470 3495
F 3310 3330 3355 3380 3405 3430 3455 3480
G 3220 3240 3260 3280 3300 3320 3340 3360
H 3060 3080 3100 3120 3140 3160 3180 3200
