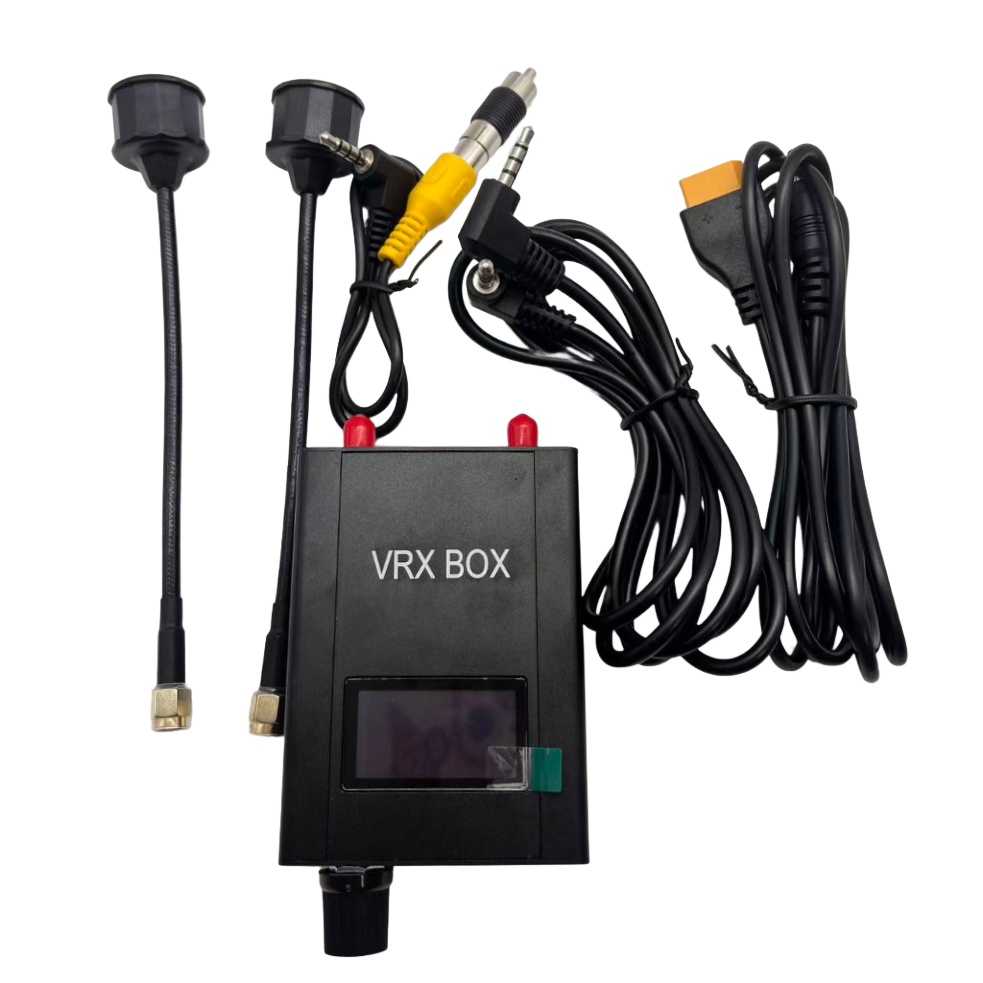

Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver
Specifications
Place of Origin :
China
Brand Name :
Kimpok
Model Number :
KP-R7200
Price :
Contact Us
Certification :
CE Cerfication
MOQ :
1 pieces
Payment Terms :
T/T, Western Union, PayPal, Alipay, Wechat Pay
Supply Ability :
5000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
International standard packing
Frequency :
6.1-7.2G
Frequency Range :
6110MHz-7210MHz
Input Voltage :
7-35V
Warranty :
1 Year
Dimension :
83X61X25mm
Receiving Sensitivity :
95dBm
Weight :
120g
Receiver Type :
Analog Video Receiver
Channel :
64CH
Description

Ultra Long Range 6.1-7.2Ghz 6110MHz-7210MHz 64CH VRX FPV Video Receiver

(1)Wide Frequency Coverage: Works across 6.1-7.2GHz, a less crowded band with strong resistance to common 2.4GHz/5.8GHz interference.

(2)64 Frequency Channels: 64 tunable channels for flexible frequency selection, minimizing co-channel interference and supporting multi-system coexistence.

(3)High Sensitivity: Typical sensitivity of -95dBm to -96dBm, maintaining stable reception even with weak signals over long distances.

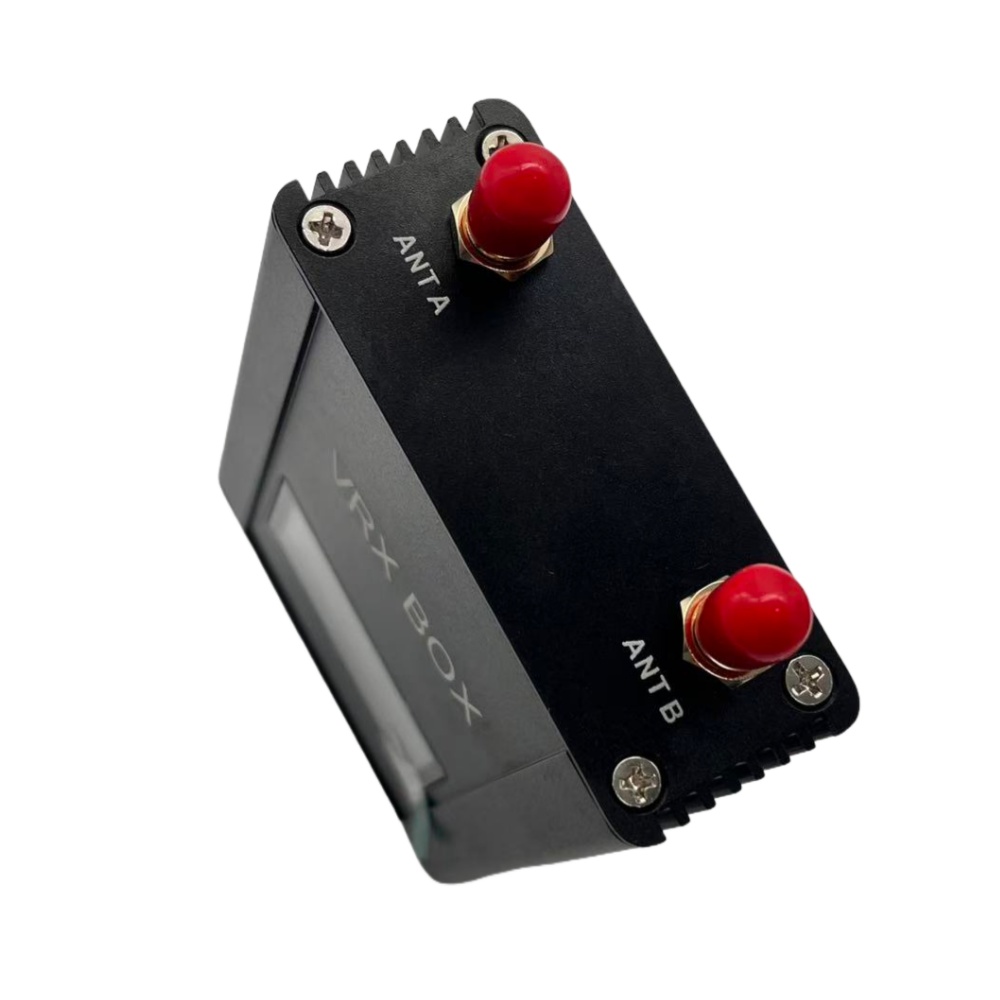

(4)Strong Anti-Interference: Uses PLL frequency control for high precision; many models support dual-antenna diversity to enhance signal stability.

(5)Clean Real-Time Video: FM/PLL demodulation delivers clear, low-noise analog video output.

(6)Wide Compatibility: Supports 7-35V wide voltage input, matching 2S-6S drone batteries.

(7)Compact & Lightweight: Small size ideal for FPV drones, mobile ground stations, and portable systems.

(8)Easy Operation: Equipped with OLED/LED displays for real-time band, channel, and RSSI monitoring; simple channel switching.

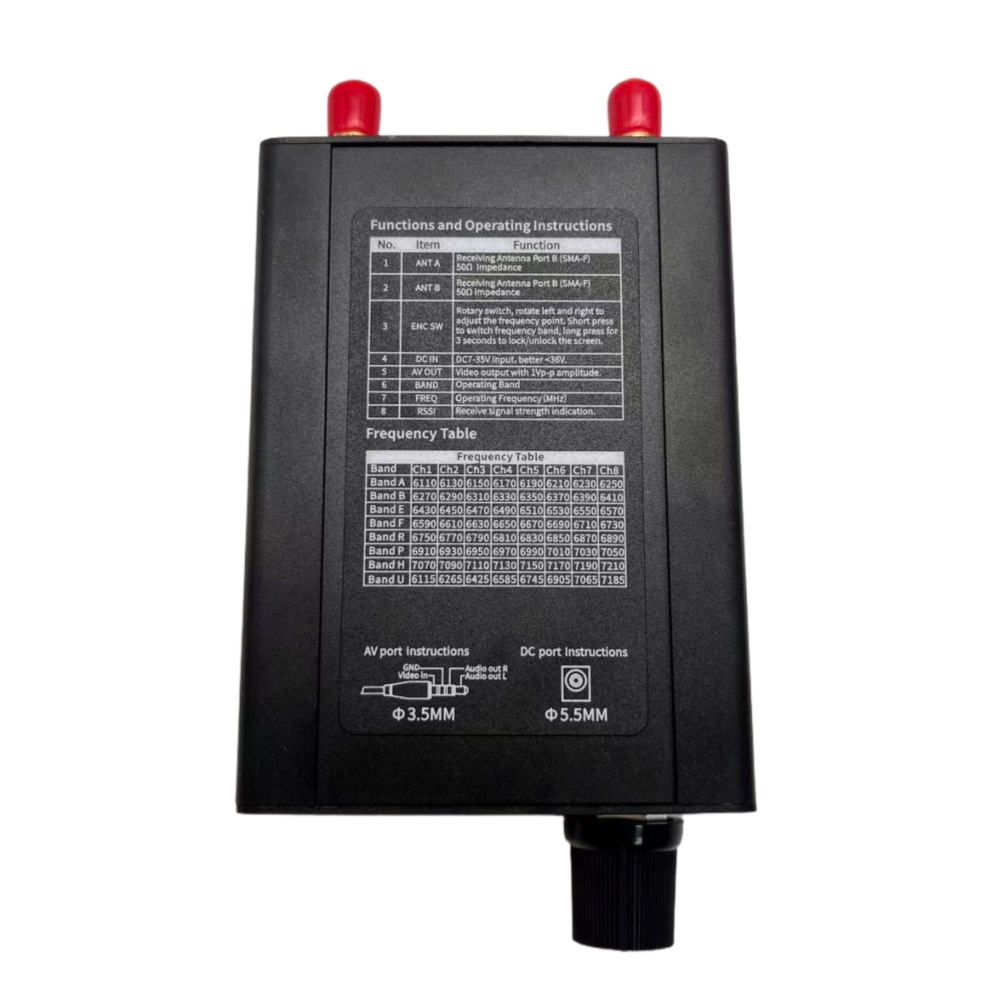

Frequency Table(6.1-7.2GHz, 64CH)
Channel Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
BANDA 6110 6130 6150 6170 6190 6210 6230 6250
BANDB 6270 6290 6310 6330 6350 6370 6390 6410
BANDE 6430 6450 6470 6490 6510 6530 6550 6570
BANDF 6590 6610 6630 6650 6670 6690 6710 6730
BANDR 6750 6770 6790 6810 6830 6850 6870 6890
BANDP 6910 6930 6950 6970 6990 7010 7030 7050
BANDH 7070 7090 7110 7130 7150 7170 7190 7210
BANDU 6115 6265 6425 6585 6745 6905 7065 7185
