Specifications
Model Number :
Thor T35
Frequency Range: :
3000MHz-4938MHz
MOQ :
10 pieces
Delivery Time :
5 work days
Output Power: :
3W(25mW\200mW\500mW\1000mW\3000mW)
Packaging Details :
International standard packing
Payment Terms :
T/T, Western Union, PayPal, Alipay, Wechat Pay
Certification :
CE/FCC
Channel: :
64CH
Brand Name :
PeakFPV
Transmitter Type: :
Analog Video Transmitter
Place of Origin :
Shenzhen, China
Input Voltage: :
9-28V DC
Price :
Contact Us
Extra Feature: :
Smart Audio(OSD Configuration Using Smart Audio)
Supply Ability :
50000pcs/month
Description

Product Description:


Brand Name: PeakFPV
Material: Aluminum
Private mold: Yes
place of origin: Shenzhen, China
Model: Thor T35
Transmitter Type: Analog Video Transmitter
Frequency: 3-4.9GHz
Frequency Range: 3000MHz-4938MHz
Channel: 64CH
Input Voltage: 9-28V
Output Power: 25mW200mW500mW1000mW3000mW
Extra Feature: Smart Audio(OSD Configuration Using Smart Audio)

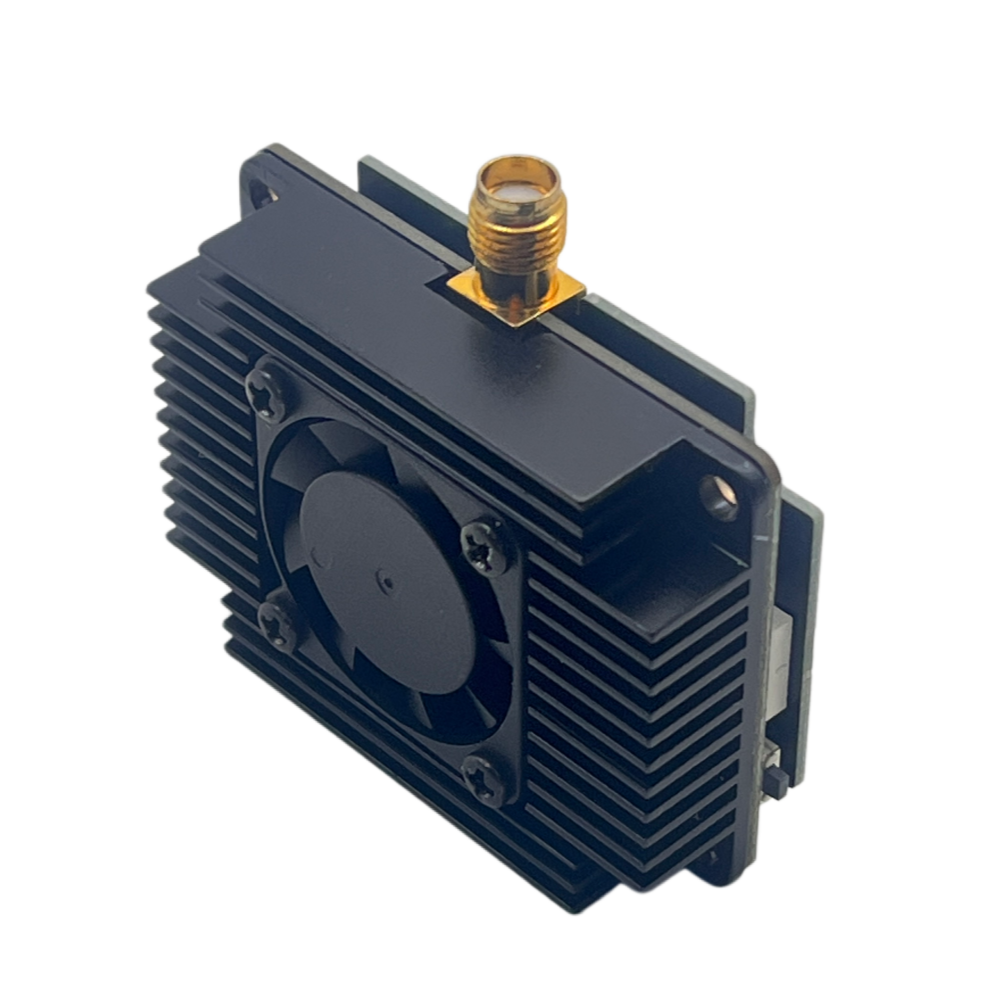

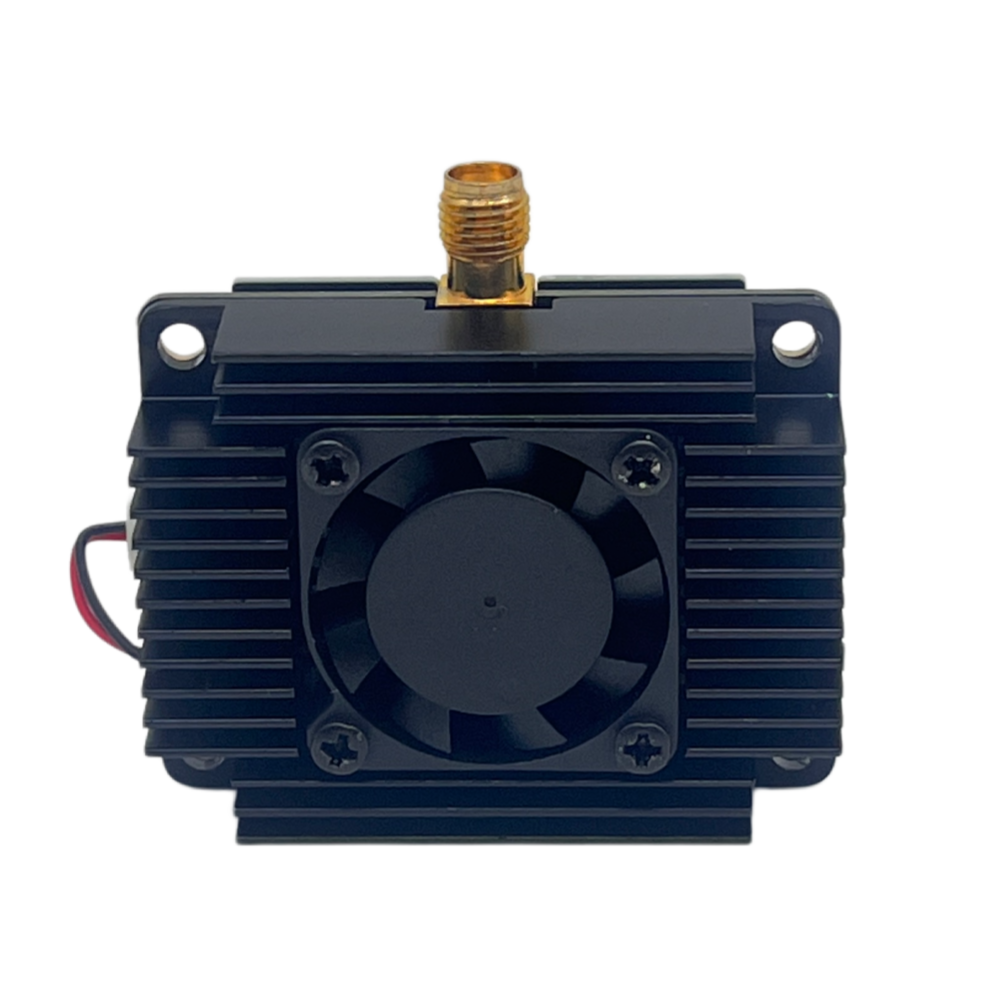

Heat Dissipation System: Built-in Cooling Fan+Heat-Sink
Antenna Connector: SMA
Dimension: 47x36mm
Weight: 34g

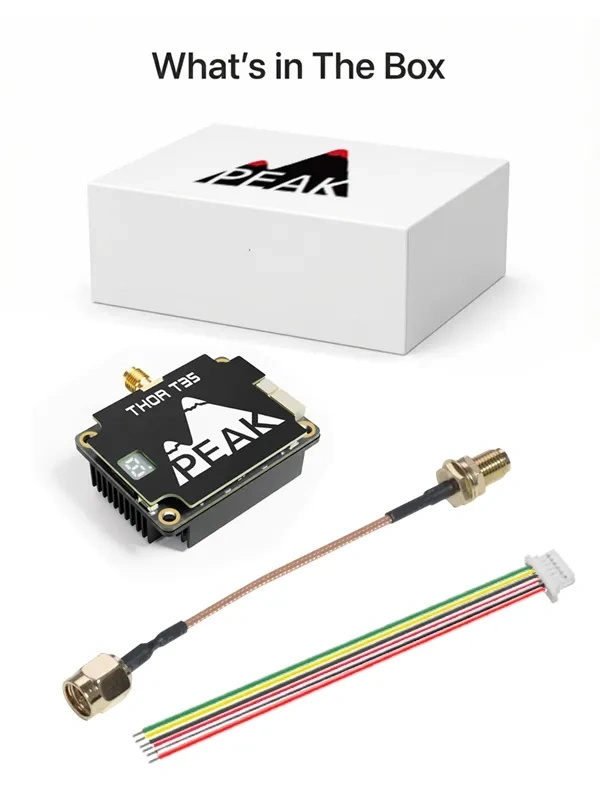

Kit Contents: 1x VTX,1x Cable
Warranty: 1 Year

Frequency Table

Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band A 3000 3030 3060 3090 3120 3150 3180 3210
Band b 3240 3270 3300 3330 3370 3400 3430 3470
Band E 3500 3530 3560 3590 3620 3650 3680 3710
Band F 3740 3770 3800 3830 3860 3890 3920 3950
Band r 3980 4010 4040 4070 4100 4130 4160 4190
Band P 4220 4250 4280 4310 4340 4370 4400 4430
Band H 4470 4500 4530 4560 4590 4620 4650 4680
Band U 4710 4740 4770 4812 4839 4872 4911 4938

The PeakFPV THOR T35 3-4.9GHz VTX is a specialized, high-performance video transmitter designed to provide a superior analog FPV experience by operating in a less congested portion of the RF spectrum. It combines a unique frequency band with high power output and intelligent control, offering distinct advantages for discerning pilots. Here is a detailed breakdown of its key benefits.
