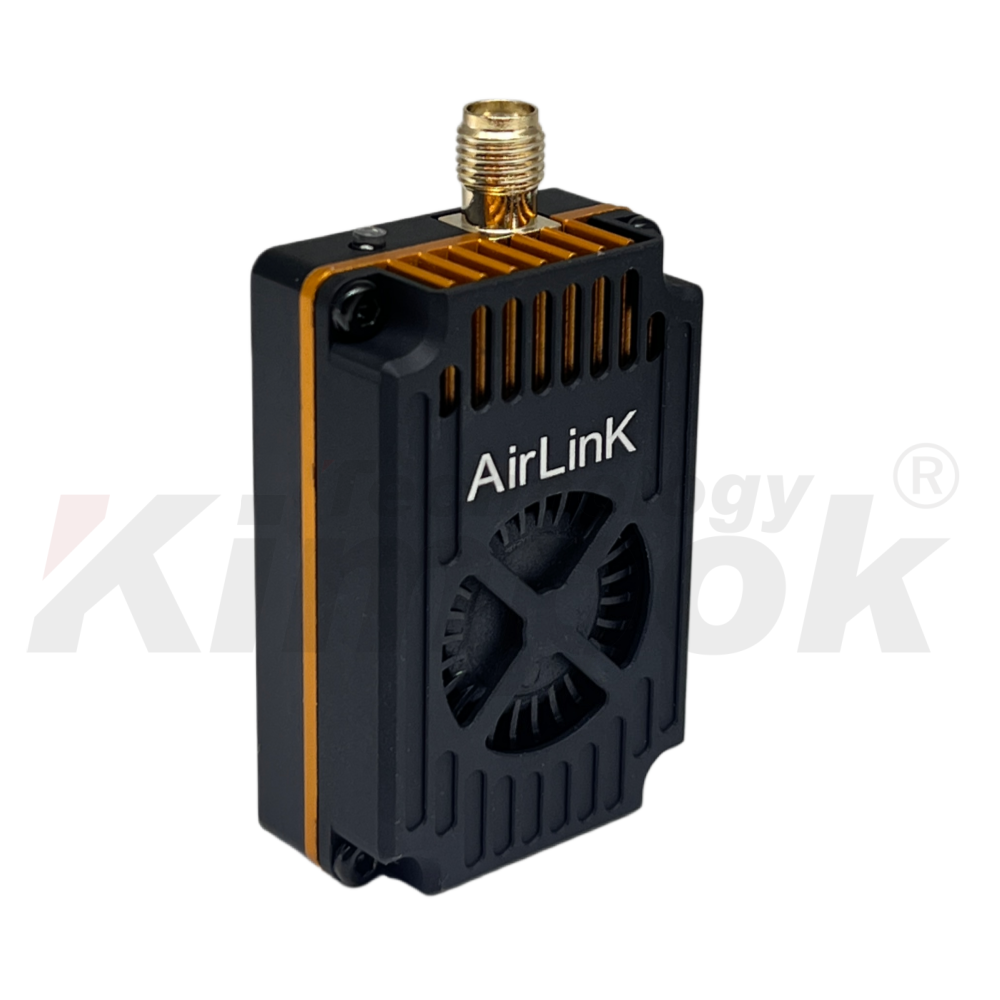

1.2G 1.3GHz 6 Watt FPV Video Transmitter High Power FPV VTX Module AL1306

Product Introduction

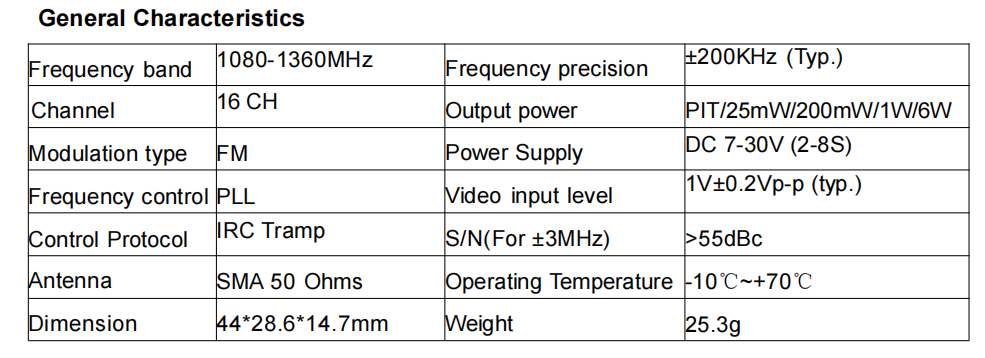

The Airlink-T AL1306 is a high-power wireless data transmission module designed for long-range analog signal transmission applications. Operating across the 1080-1360MHz frequency range, it delivers up to 6W RF output power with multiple adjustable power levels to suit different deployment requirements.

Equipped with advanced PLL frequency control technology, efficient power calibration circuitry, and a rugged three-layer aluminum alloy housing with an integrated centrifugal cooling fan, the AL1306 ensures stable signal transmission and reliable operation in demanding environments. The module supports 16 selectable channels and IRC Tramp protocol control for convenient configuration and system integration.

Key Features

1. High Power Output

• Adjustable output power levels:

  • PIT Mode

  • 25mW

  • 200mW

  • 1W

  • 6W

• Suitable for extended-range transmission applications.

2. Wide Frequency Coverage

• Operating frequency range:

  • 1080MHz – 1360MHz

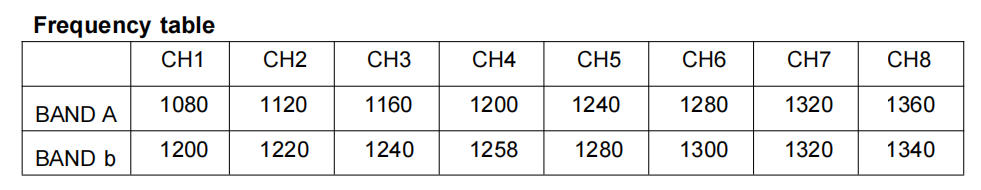

• Supports 16 selectable channels.

3. Stable PLL Frequency Control

• Digital PLL synthesizer design.

• High frequency accuracy of ±200KHz.

• No frequency drift during continuous operation.

4. Advanced Cooling System

• Three-layer aluminum alloy housing.

• Built-in high-speed centrifugal cooling fan.

• Maintains stable performance under high-power operation.

5. Smart Protocol Support

• Compatible with IRC Tramp control protocol.

• Easy parameter adjustment through external controllers.

Product Advantages

• Long-range analog signal transmission capability.

• Up to 6W high RF output power.

• Excellent frequency stability and channel consistency.

• fficient heat dissipation for continuous operation.

• Compact and lightweight design.

• Wide DC input voltage range (7-30V).

• Reliable signal quality with low interference.

• Easy integration into wireless communication systems.
