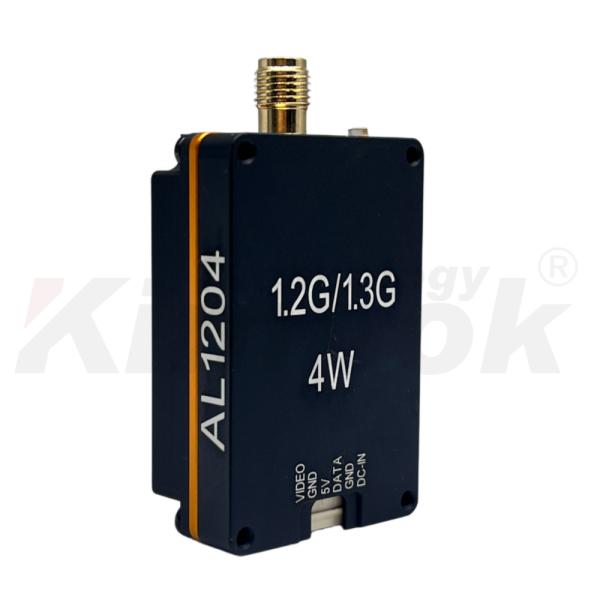

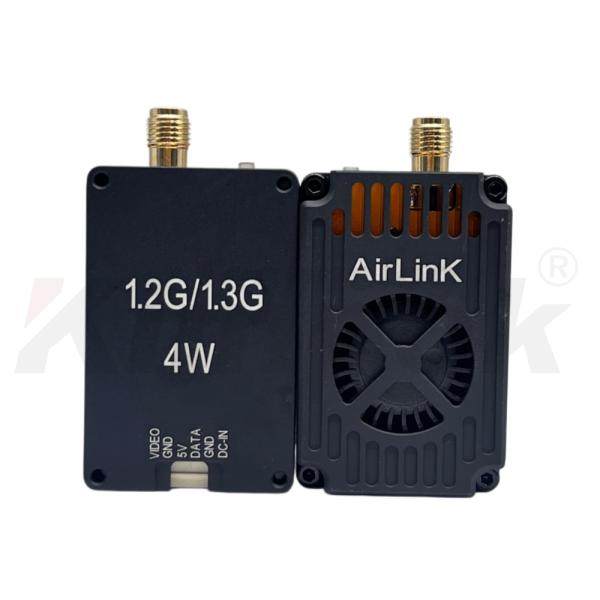

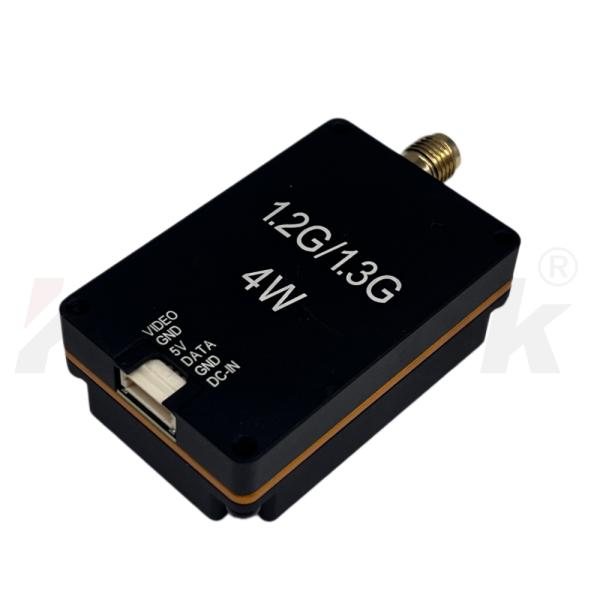

Kimpok AirLink AL1304 1.2GHz/1.3GHz 4W High-Power Wireless Video Data Transmission Module | Long Distance Analog Signal Sender
Kimpok AirLink AL1304 1.2GHz/1.3GHz 4W High-Power Wireless Video Data Transmission Module | Long Distance Analog Signal Sender
Kimpok AirLink AL1304 1.2GHz/1.3GHz 4W High-Power Wireless Video Data Transmission Module | Long Distance Analog Signal Sender
Kimpok AirLink AL1304 1.2GHz/1.3GHz 4W High-Power Wireless Video Data Transmission Module | Long Distance Analog Signal Sender
Kimpok AirLink AL1304 1.2GHz/1.3GHz 4W High-Power Wireless Video Data Transmission Module | Long Distance Analog Signal Sender
Kimpok AirLink AL1304 1.2GHz/1.3GHz 4W High-Power Wireless Video Data Transmission Module | Long Distance Analog Signal Sender
Specifications
Model Number :
AL1304
Channel Quantity :
16 CH
MOQ :
1
Delivery Time :
5-7 work days
Protocol Support :
IRC Tramp
Payment Terms :
L/C,T/T,Paypal
Certification :
CE Cerfication
RF Output Power :
PIT / 25mW / 200mW / 1W / 4W
Brand Name :
Kimpok
Operating Frequency :
1080MHz–1360MHz
Price :
Negotiation
RF Connector :
SMA Female
Supply Ability :
6,000 piece per month
Place of Origin :
China
Input Voltage :
DC 9V–36V
Packaging Details :
International Standard Packing
Description

Kimpok AirLink AL1304 1.2GHz/1.3GHz 4W High-Power Wireless Video Data Transmission Module | Long Distance Analog Signal Sender


Product Description

Product Introduction

The AL1304 is a high-performance wireless video and data transmission module designed for long-range analog signal applications. Operating within the 1080MHz–1360MHz frequency range, it delivers up to 4W RF output power with multiple adjustable power levels, providing flexible deployment for different operational environments.

Built with advanced PLL frequency synthesis technology and precision power control circuitry, the AL1304 ensures stable frequency locking, low signal drift, and consistent transmission performance. Its robust aluminum alloy housing combined with active cooling design effectively improves heat dissipation, enabling reliable operation during long-duration use.

With a compact structure, wide voltage input compatibility, and IRC Tramp protocol support, the AL1304 is well-suited for professional wireless transmission systems requiring stability, efficiency, and long-distance signal performance.

Key Features

1. Long-Range Transmission Capability

Supports up to 4W RF output power, providing strong signal penetration and extended transmission distance with stable performance.

2. Wide Frequency Range & Channel Flexibility

Operates across 1080MHz–1360MHz with 16 selectable channels, allowing flexible frequency planning and reduced interference in complex environments.

3. Adjustable Power Output

Multiple power levels available to adapt to different application scenarios:

  • PIT Mode
  • 25mW
  • 200mW
  • 1W
  • 4W
