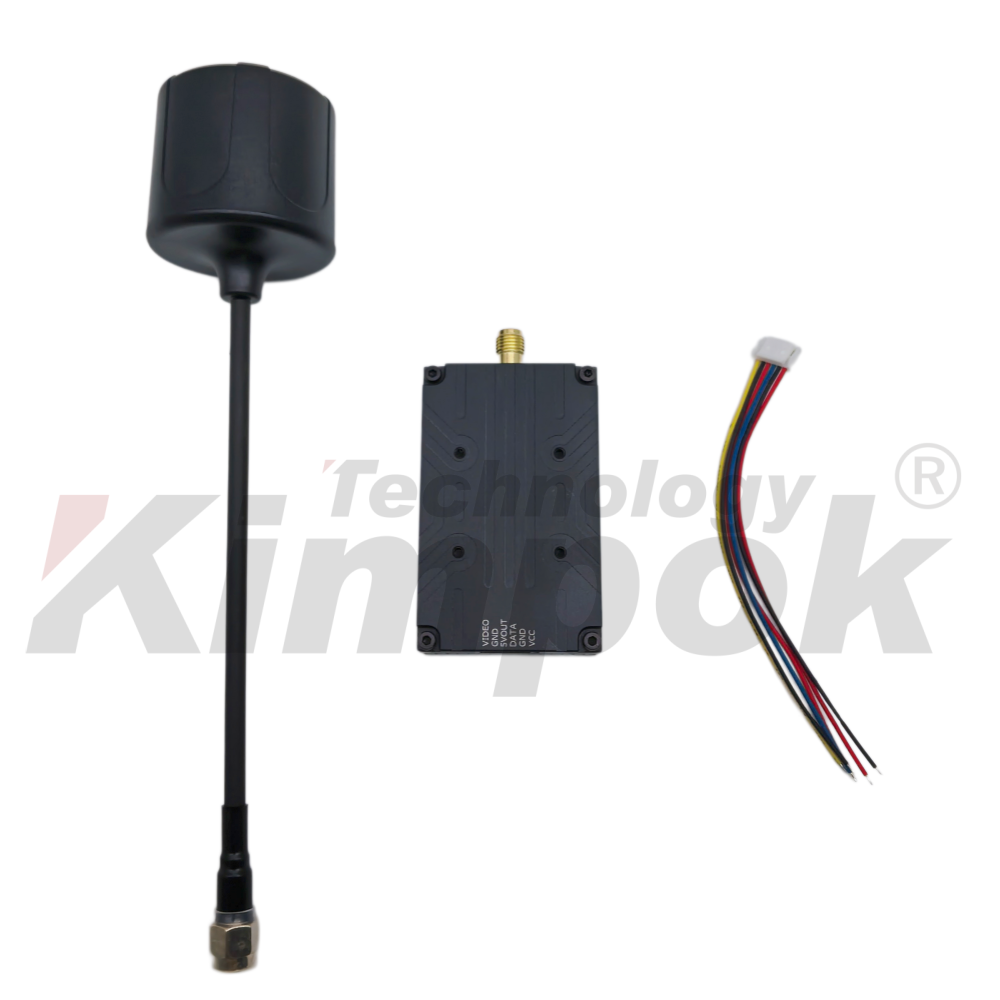

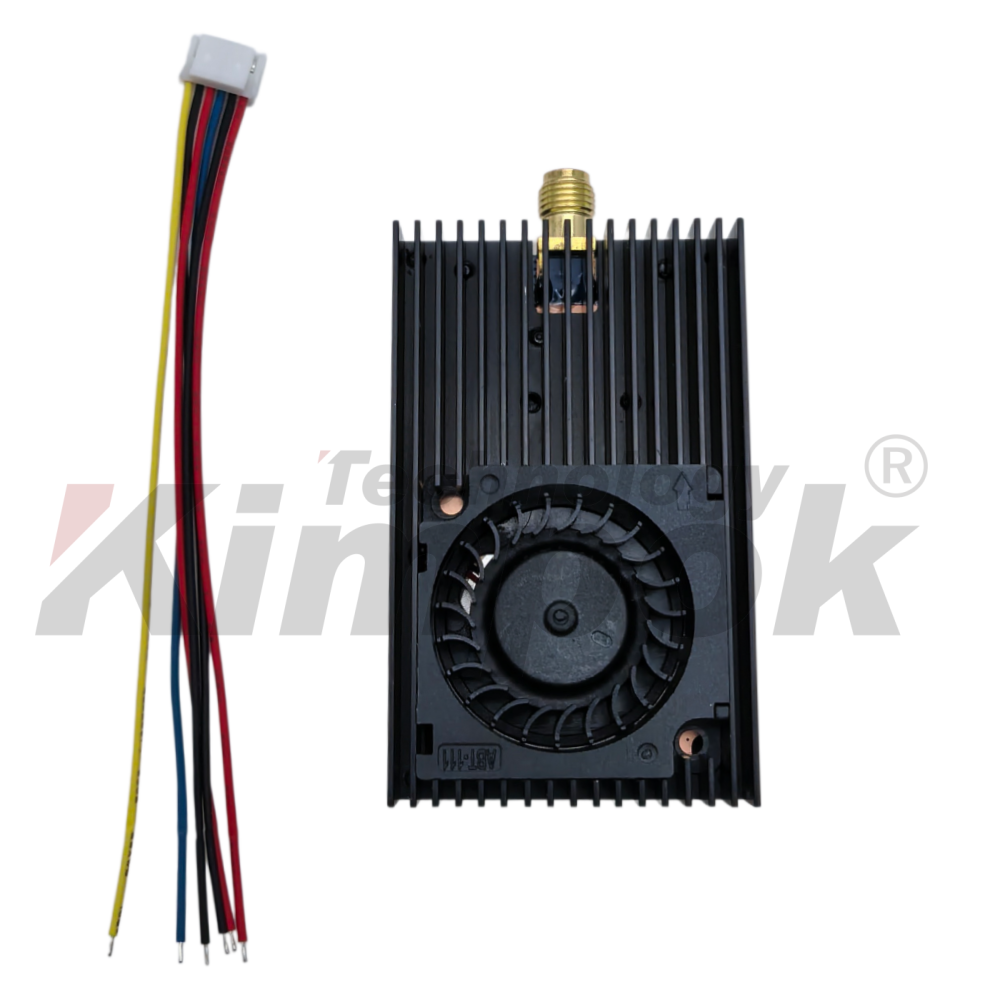

AirLinK-T AL3310 3.0-3.8GHz 10W High Power 80CH VTX Video Transmitter with IRC Tramp Protocol for Long Range Drone
AirLinK-T AL3310 3.0-3.8GHz 10W High Power 80CH VTX Video Transmitter with IRC Tramp Protocol for Long Range Drone
AirLinK-T AL3310 3.0-3.8GHz 10W High Power 80CH VTX Video Transmitter with IRC Tramp Protocol for Long Range Drone
AirLinK-T AL3310 3.0-3.8GHz 10W High Power 80CH VTX Video Transmitter with IRC Tramp Protocol for Long Range Drone
AirLinK-T AL3310 3.0-3.8GHz 10W High Power 80CH VTX Video Transmitter with IRC Tramp Protocol for Long Range Drone
AirLinK-T AL3310 3.0-3.8GHz 10W High Power 80CH VTX Video Transmitter with IRC Tramp Protocol for Long Range Drone
Specifications
RF power :
PIT/2.5W/5W/7W/10W
Model Number :
AL3310
Weight :
36.8g
Price :
Negotiation
Packaging Details :
International Standard Packing
Supply Ability :
3,0000 piece per month
Frequency band :
3060-3840MHz
Brand Name :
AirLink-T
Channel :
80CH
MOQ :
1
Payment Terms :
L/C
Power Supply :
DC 12-36V
Certification :
CE Cerfication
Delivery Time :
5-7 work days
Description

AirLinK-T AL3310 3.0-3.8GHz 10W High Power 80CH VTX Video Transmitter with IRC Tramp Protocol for Long Range Drone


Key Features
- With an ultra-wide frequency range spanning 3060–3840
MHz and support for 80 channels, it offers exceptional
flexibility for diverse operating environments.
- Ultra-Lightweight: Weighs only 36.8g with a compact
thermal design that sustains stable maximum power output.
- High-Efficiency RF: Next-gen fully integrated on-chip PA
delivers broad frequency range with superior RF
performance.
- Precision Control: Proprietary digital PLL plus fully
closed-loop detection ensures accurate frequency tuning and
flat power response.
- Quality Assurance: Full aging and power calibration
processes applied to every unit, ensuring exceptional
batch-to-batch consistency

General Characteristics
Frequency band 3060-3840MHz
RF power PIT/2.5W/5W/7W/10W
Channel 80 CH
Power Supply DC 12-36V
Modulation FM
Frequency precision ±200KHz (Typ.)
Frequency control PLL
Video input level 1V±0.2Vp-p (typ.)
Control Protocol IRC Tramp
S/N(For ±3MHz) >55dBc
Dimension 58*36*16mm
Operating Temperature -10℃~+70℃
Hole 20*20mm
Weight 36.8g
