Specifications
Frequency :
3060-3495MHz
Model Number :
AL3306
Payment Terms :
D/P
Control Protocol :
IRC Tramp
Price :
Negotiate
Channel :
64CH
Certification :
CE
Power supply :
DC 7-30V (2-8S)
MOQ :
1pcs
Delivery Time :
7 working days
Supply Ability :
5000pcs/month
Type :
FPV Video Transmitter
Brand Name :
Kimpok
Output power :
PIT/25mW/200mW/1W/6W
Place of Origin :
China
Packaging Details :
International Standard Packing
Description

3.3G FPV VTX 6W High Power Drone Video Transmitter 64CH FPV RC Accessories 3.3Ghz VTX Module

I.Features

- Designed for long-range flights, up to 6W transmitting power, and provide multi-level adjustment.
- Efficient PA and power calibration to ensure power consistency across all channels.
- Customized digital PLL circuit, chip level integration, no frequency drift.

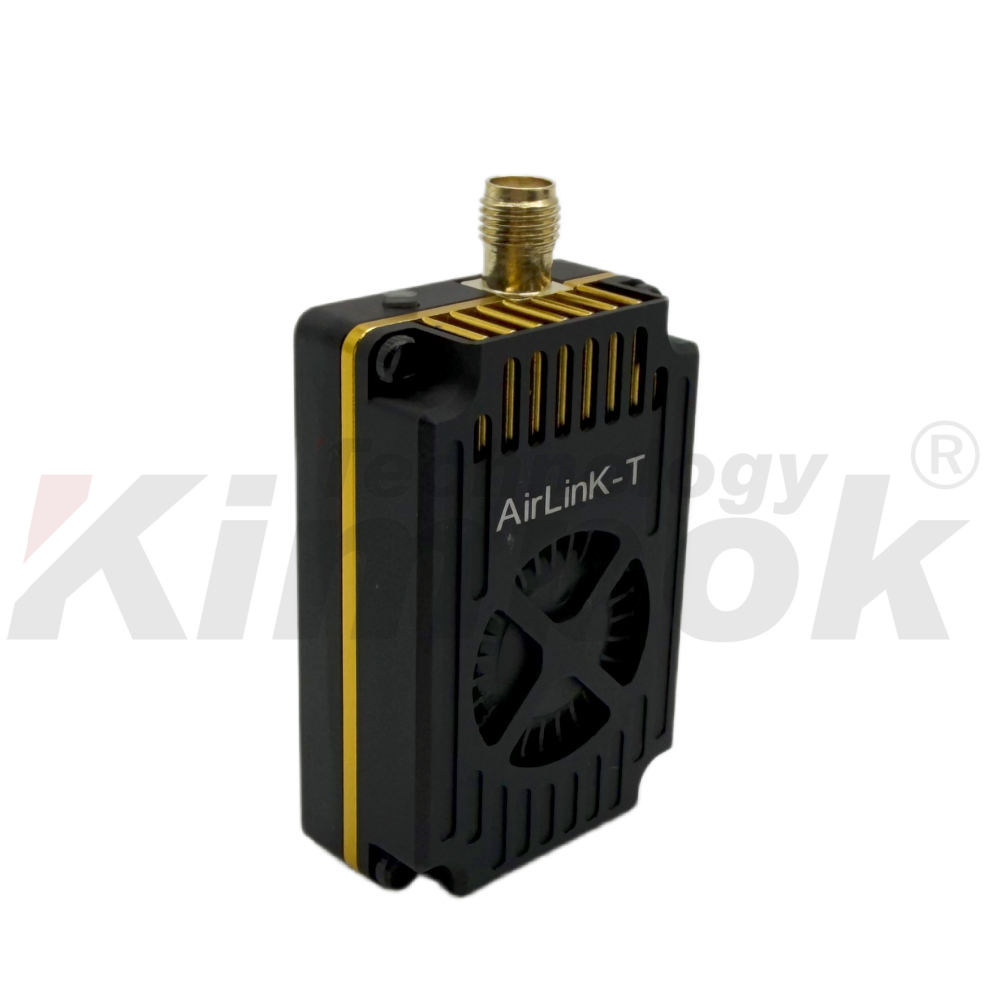

- Aluminum alloy three-layer shell structure and large centrifugal fan provide sufficient heat dissipation to ensure stable output of transmitting power.
II.General Characteristics
Frequency band: 3060-3495MHz
Frequency precision:±200KHz (Typ.)
Channel:64 CH
Output power:PIT/25mW/200mW/1W/6W
Modulation type: FM
Power Supply:DC 7-30V (2-8S)
Frequency control: PLL
Video input level:1V±0.2Vp-p (typ.)
Control Protocol: IRC Tramp
S/N(For ±3MHz):>55dBc
Antenna:SMA 50 Ohms
Operating Temperature: -10℃~+70℃
Dimension:44*28.6*14.7mm
Weight:25.3g

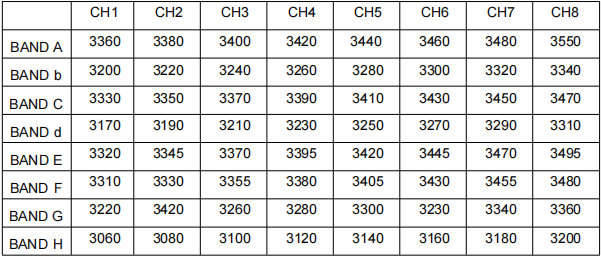

III.Frequency Table

3.3G FPV VTX 6W High Power Drone Video Transmitter 64CH FPV RC Accessories 3.3Ghz VTX Module

IV.Settings
Controlled using a single button, the button integrates RGB lighting, blue for band, red for channel, and green for power level.
When there is no operation, the RGB LED blinks cyclically, the number of times the RGB blinks
represents the current VTX status (when the green LED is always on, the VTX enters PITMODE).
Long press the button to enter VTX setting, at this time the RGB lights are lit alternately,release the button under the corresponding color light to enter the corresponding function setting. At this time, short press the button to adjust the value.

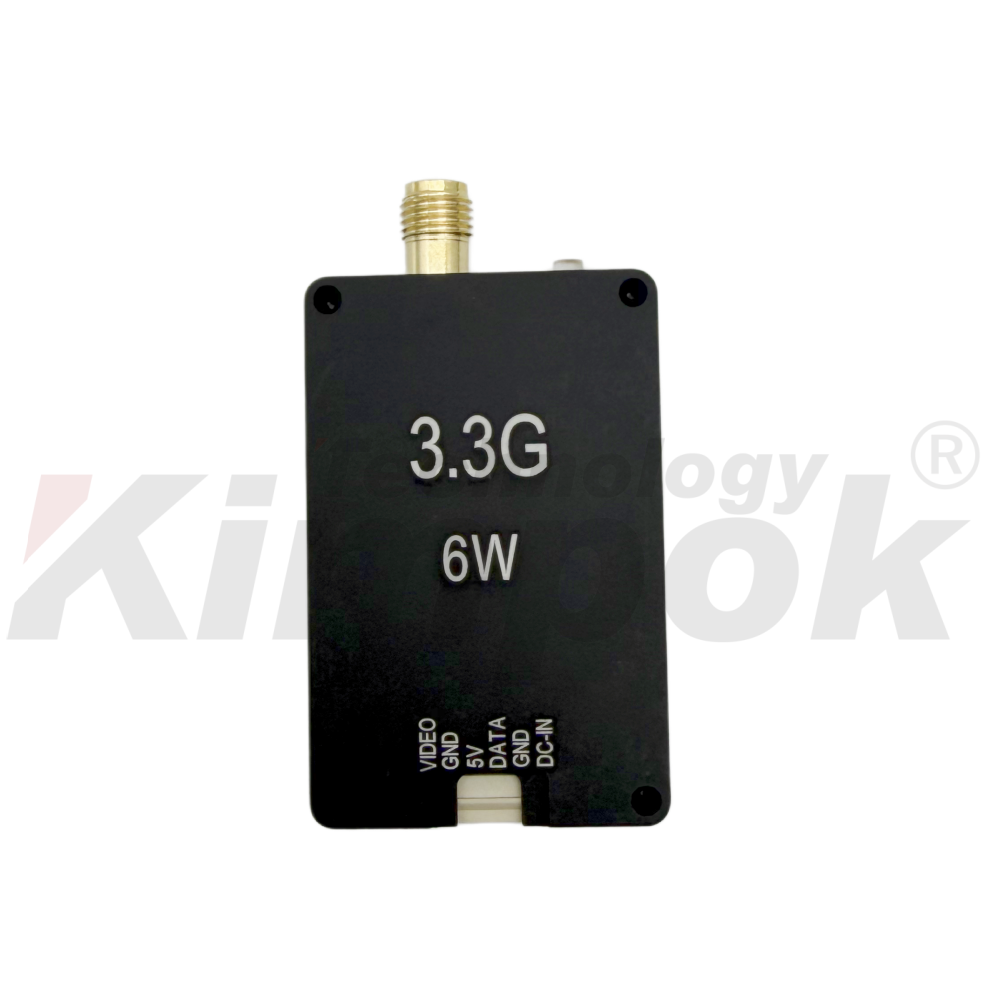

For setup via the flight controller, connect the DATA pin and use the IRC Trump protocol.
