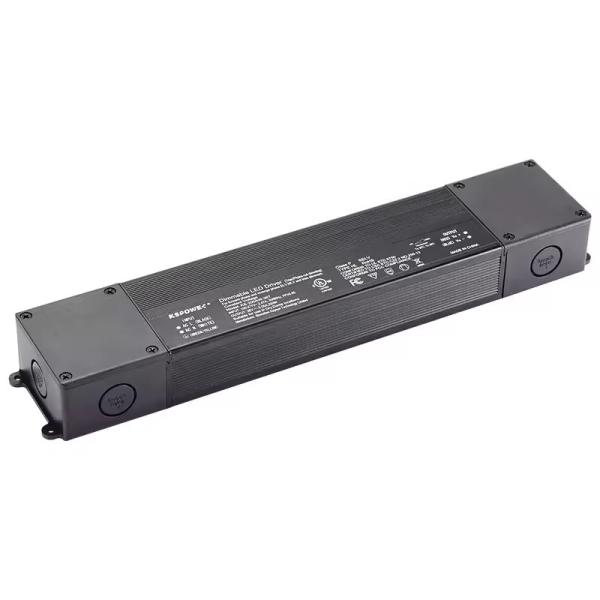

12V 150W IP65 Rated LED Driver High Power PWM Dimmable LED Power Transformer for Lighting Solutions
12V 150W IP65 Rated LED Driver High Power PWM Dimmable LED Power Transformer for Lighting Solutions
12V 150W IP65 Rated LED Driver High Power PWM Dimmable LED Power Transformer for Lighting Solutions
12V 150W IP65 Rated LED Driver High Power PWM Dimmable LED Power Transformer for Lighting Solutions
12V 150W IP65 Rated LED Driver High Power PWM Dimmable LED Power Transformer for Lighting Solutions
12V 150W IP65 Rated LED Driver High Power PWM Dimmable LED Power Transformer for Lighting Solutions
12V 150W IP65 Rated LED Driver High Power PWM Dimmable LED Power Transformer for Lighting Solutions
12V 150W IP65 Rated LED Driver High Power PWM Dimmable LED Power Transformer for Lighting Solutions
12V 150W IP65 Rated LED Driver High Power PWM Dimmable LED Power Transformer for Lighting Solutions
12V 150W IP65 Rated LED Driver High Power PWM Dimmable LED Power Transformer for Lighting Solutions
Specifications
Place of Origin :
Guangdong, China
Brand Name :
KSPOWER
Model Number :
KS-150#-12
Certification :
UL cUL RoHS
MOQ :
2 pieces
Price :
$42.80/pieces 2-199 pieces
Payment Terms :
T/T
Supply Ability :
300000pcs/month
Delivery Time :
20 business days
Packaging Details :
Brown box and Carton
Lighting solutions service :
Lighting and circuitry design
Output Power :
150W
Input Voltage :
100-277V
Product Name :
12V 150W LED Power Transformer
Application :
LED Lighting
Warranty :
5 Years
Color :
White Black
Efficiency :
95%
Output :
12V
Type :
Constant Voltage
Material :
Aluminium Case
IP Rate :
IP65
Description

Waterproof 12V 150W LED Power Transformer 12V 150W AC/DC LED Power 12V150W Waterproof triac dimming LED Driver


FEATURES:

− Universal AC input voltage 100-277VAC

− Efficiency up to 90%

− Built-in active PFC function

− Single channel & constant voltage mode and PWM style output

− Protection: OCP, OVP, SCP, OTP

− Limited Power Source

− UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

− Function options:

1. Non-dimmable

2. Triac/Phase-cut Dimmable

3. 4 in 1 dimmable (0-10V,1-10V,PWM,resistance)

4. 5 in 1 dimmable (0-10V,1-10V,TRIAC,PWM,resistance)

− Typical lifetime > 50000 hours

− 5 years warranty

− Available with or without integrated Junction Box

− IP65 Rated Enclosure for Indoor and Outdoor Use

− Wiring Compartments with Knock-Outs for Clean and Easy Installation

SPECIFICATION:

Input Voltage 100~277V AC 47~63Hz
Power Factor PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC, full load
Output Voltage VDC 12VDC VDC VDC
Rated Current A 12.5A A A
Rated Power 150W
Ripple & Noise (max.) 200mVp-p 250mVp-p 250mVp-p 250mVp-p
Dimenion
322*58*36mm(L*W*H)


DIMMING CONNECT DRAWING:

12V 150W IP65 Rated LED Driver High Power PWM Dimmable LED Power Transformer for Lighting Solutions

PACKAGE


Package Piece/Carton Dimension/Carton Dimension/Brown Box Piece Weight Gross Weight/Carton
OEM package 15pcs 400 x 400 x 165mm 382 x 74 x 45mm 1.4kg 21kg

12V 150W IP65 Rated LED Driver High Power PWM Dimmable LED Power Transformer for Lighting Solutions
OUR SERVICES

  • Our sample delivery time is 3 days.
  • Our warranty is 3 years.
  • Our product defect rate is 3%.More than 3% of defective products will be refilled.
  • OEM&ODM, any your custo mized lightings we can help you to design and put into product.
  • Distributoership are offered for your unique design and some our current models,Protection of your sales area, ideas of design and all your private informatio.
  • Your inquiry related to our products or prices will be replied in 24hrs.Well-trained and experienced staffs to answer all your enquires in fluent English.
  • The delivery time of 100-500PCS is 7 workdays, the delivery time of 500-1000PCS is 10 workdays, the delivery time of 1000-2000PCS is 12 workdays, and the delivery time of 5000PCS is 20 workdays.
    Dimming Type Series Power Model
    (xx=output voltage)    		 Output voltage&
    Output current    		 Input voltage Size
    12V 24V 36V 48V
    5 in 1 dimming HPJ 40W KS-40AW-xxP 3.3A 1.67A 1.11A 0.83A 100~277V
    50/60Hz    		 297*58*36mm
    60W KS-60AW-xxP 5A 2.5A 1.67A 1.25A
    80W KS-80AW-xxP 6.67A 3.33A 2.22A 1.67A
    96W KS-96AW-24P / 4A / / 322*58*36mm
    100W KS-100AW-xxP 8.33A 4.16A 2.78A 2.08A
    120W KS-120AW-xxP 10A 5A 3.33A 2.5A
    150W KS-150AW-xxP 12.5A 6.25A 4.16A 3.13A
    180W KS-180AW-12P 15A / / / 343*68*41mm
    200W KS-200AW-xxP 16.66A 8.33A 5.55A 4.16A
    240W KS-240AW-xxP 20A 10A 6.66A 5A 367*68*41mm
    300W KS-300AW-24P / 12.5A / /
    320W KS-320AW-xxP / 13.33A 8.88A 6.66A
