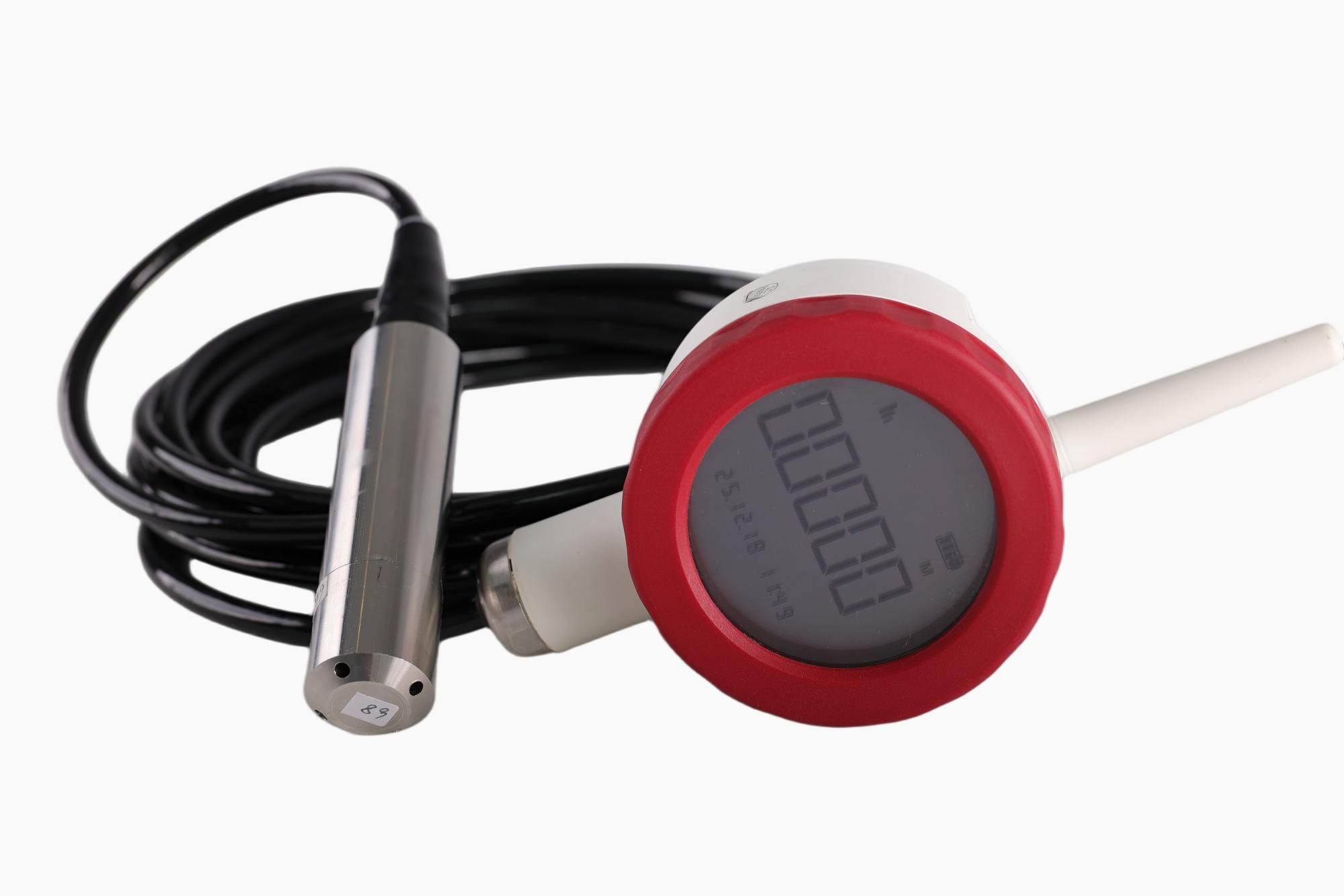

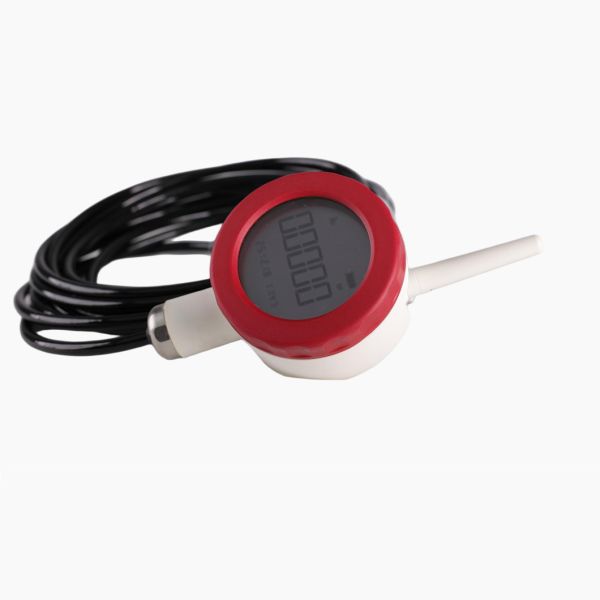

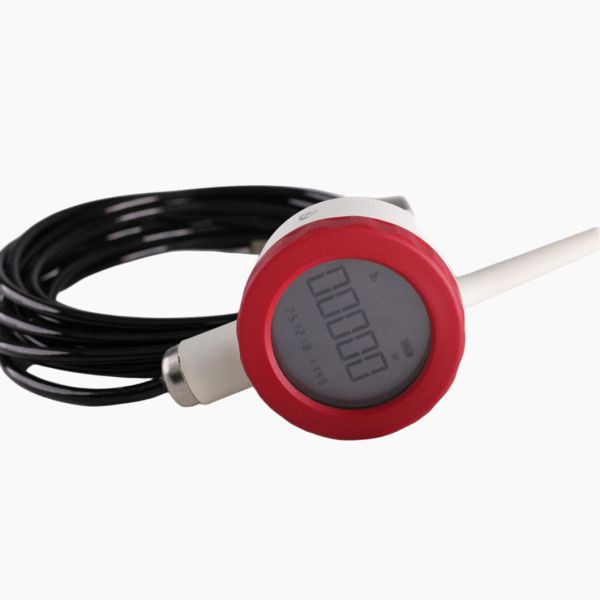

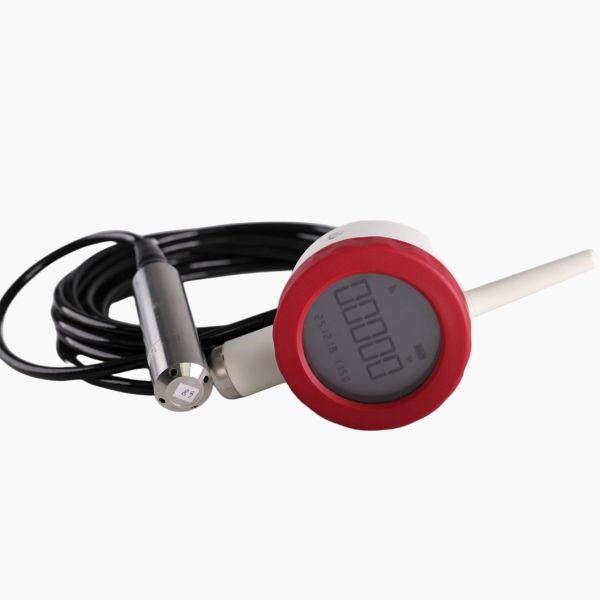

High Accuracy Liquid Level & Water Pressure Transmitter Sensor Wireless
High Accuracy Liquid Level & Water Pressure Transmitter Sensor Wireless
High Accuracy Liquid Level & Water Pressure Transmitter Sensor Wireless
High Accuracy Liquid Level & Water Pressure Transmitter Sensor Wireless
High Accuracy Liquid Level & Water Pressure Transmitter Sensor Wireless
High Accuracy Liquid Level & Water Pressure Transmitter Sensor Wireless
High Accuracy Liquid Level & Water Pressure Transmitter Sensor Wireless
High Accuracy Liquid Level & Water Pressure Transmitter Sensor Wireless
High Accuracy Liquid Level & Water Pressure Transmitter Sensor Wireless
High Accuracy Liquid Level & Water Pressure Transmitter Sensor Wireless
Specifications
Brand Name :
TOPRIE
Model Number :
TP2403
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 piece
Price :
USD195.00~USD 225.00
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100 pieces per day
Delivery Time :
5-8 workdays
Packaging Details :
Packed in paper carton
Keyword :
Water level sensor
Material :
Housing:ABS Sensor:PU+Stainless steel
Range :
0-50m
Accuracy :
0.5%F.S
Unit :
mm/m
Communication :
4G,WiFi,LoRa,LoRaWAN,GSM,GPRS
Protocol :
MQTT,TCP/IP, Private protocol
Configuration :
USB,Bluetooth
Battery capacity :
17000mAh non rechargeable battery
Uploaded information :
Water level,temperature,battery pecent, signal,sim card information
Battery lifespan :
4G,WiFi data was uploaded to server an hour last 2-2.5 years, LoRa,LoRaWAN last 4-5 years
Description

OEM GPRS GSM 4G Water Level Sensor Wireless Fuel Level Measuring Instruments


Smart Wireless Level pressure transmitter, It supports 4G,GSM,NB-IoT,LoRa & LORaWAN network connection to the platform and mobile APP, USB configuration, data export (in PDF and CSV formats), limit alarm (immediate reporting when exceeding limits), and sensor value correction.

High Accuracy Liquid Level & Water Pressure Transmitter Sensor Wireless

Range 0……50m……70m
Accuracy 0.5%F.S
Battery Capacity 17000mAh non rechargeable lithium battery
Protection Level IP66
Display TFT
Power Consumption Standby current ≤80uA, average data transmission current ≤150mA
Communication 4G,WiFi,LoRaWAN,LoRa,NB-IoT
Antenna External
Installation Vertical,Horizontal
Sampling Interval Time 10 sec~2550 sec
Uploaded Interval Time 1 Min~1440Mins, the shorter of Uploaded time you setup, the shorter lifetime of battery
Configuration USB C,Bluetooth
Wake-up Mode Button,timing
Uploaded Data Information Liquid level,Temperature, Battery Level, Signal, SIM card
Material Housing part Aluminum alloy, Sensor part: SS304
Process connection NPT1/2,M20*1.5,BSP1/2 ect..

Advantage


Water level pressure Sensor

Accurately collect level deepth data information

Support IoT remote data transmission

Adapt to harsh industrial environments

Low power consumption and long endurance



Application


Smart wireless level gauge is widely used in fire water systems, tap water supply networks, gas systems, fire protection networks, drainage networks, air conditioning water cooling systems, etc.
