Wireless Liquid Level transmitter 0.5 Grade For Fire Water Tank Monitoring
Wireless Liquid Level transmitter 0.5 Grade For Fire Water Tank Monitoring
Specifications
Supply Ability :
100 pieces per day
Range :
0-50m
Model Number :
TP2403
Uploaded information :
Water level,temperature,battery pecent, signal,sim card information
MOQ :
1 piece
Delivery Time :
5-8 workdays
Configuration :
USB,Bluetooth
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Accuracy :
0.5%F.S
Protocol :
MQTT,TCP/IP, Private protocol
Price :
USD195.00~USD 225.00
Unit :
mm/m
Communication :
4G,WiFi,LoRa,LoRaWAN,GSM,GPRS
Brand Name :
TOPRIE
Certification :
CE,ROHS
Packaging Details :
Packed in paper carton
Place of Origin :
China
Description

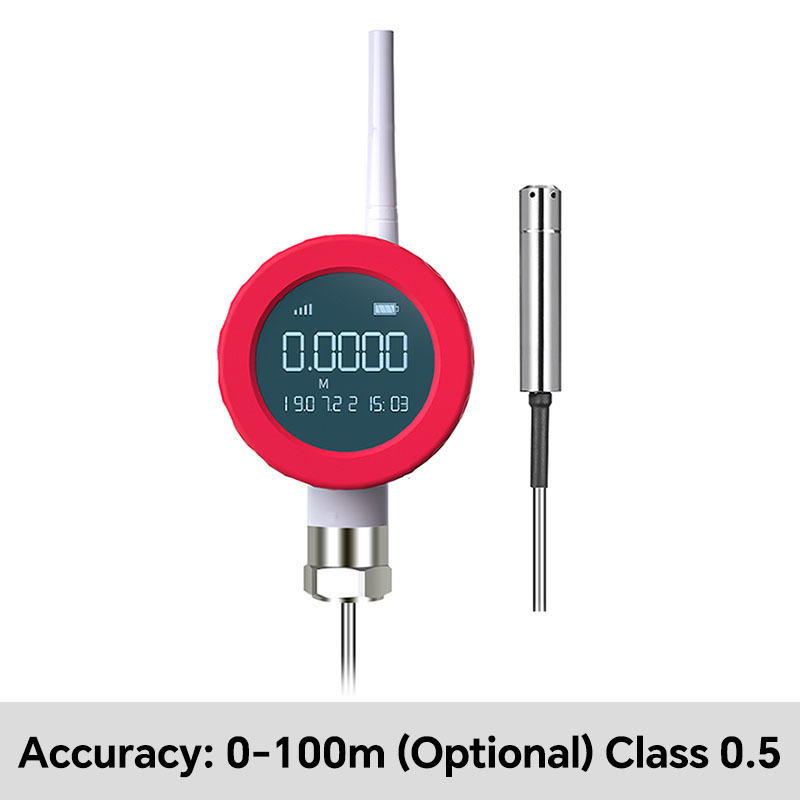

Wireless Liquid Level transmitter 0.5 Grade For Fire Water Tank Monitoring


The TP2403 Wireless Waterproof Level Gauge provides accurate and reliable liquid level monitoring for water tanks, fire protection systems, and industrial applications. With 0.5% FS accuracy, a measuring range of up to 0–100 m, and support for NB-IoT, 4G, and LoRa, it enables convenient remote monitoring. Its large 2.4-inch LCD display, waterproof design, breakpoint data transmission, and up to 5-year battery life make it an ideal solution for long-term, low-maintenance level monitoring.

Wireless Liquid Level transmitter 0.5 Grade For Fire Water Tank Monitoring

Range 0……50m……70m
Accuracy 0.5%F.S
Battery Capacity 17000mAh non rechargeable lithium battery
Protection Level IP66
Display TFT
Power Consumption Standby current ≤80uA, average data transmission current ≤150mA
Communication 4G,WiFi,LoRaWAN,LoRa,NB-IoT
Antenna External
Installation Vertical,Horizontal
Sampling Interval Time 10 sec~2550 sec
Uploaded Interval Time 1 Min~1440Mins, the shorter of Uploaded time you setup, the shorter lifetime of battery
Configuration USB C,Bluetooth
Wake-up Mode Button,timing
Uploaded Data Information Liquid level,Temperature, Battery Level, Signal, SIM card
Material Housing part Aluminum alloy, Sensor part: SS304
Process connection NPT1/2,M20*1.5,BSP1/2 ect..

Advantage


High Precision Measurement: Accurate to 0.5% Full Scale for reliable readings.

TFT LCD Display: Clear 2.4-inch screen for easy viewing.
IP66 Protection: Dustproof and waterproof for outdoor use.
Over Limit Alarm: Alerts you when levels exceed limits.

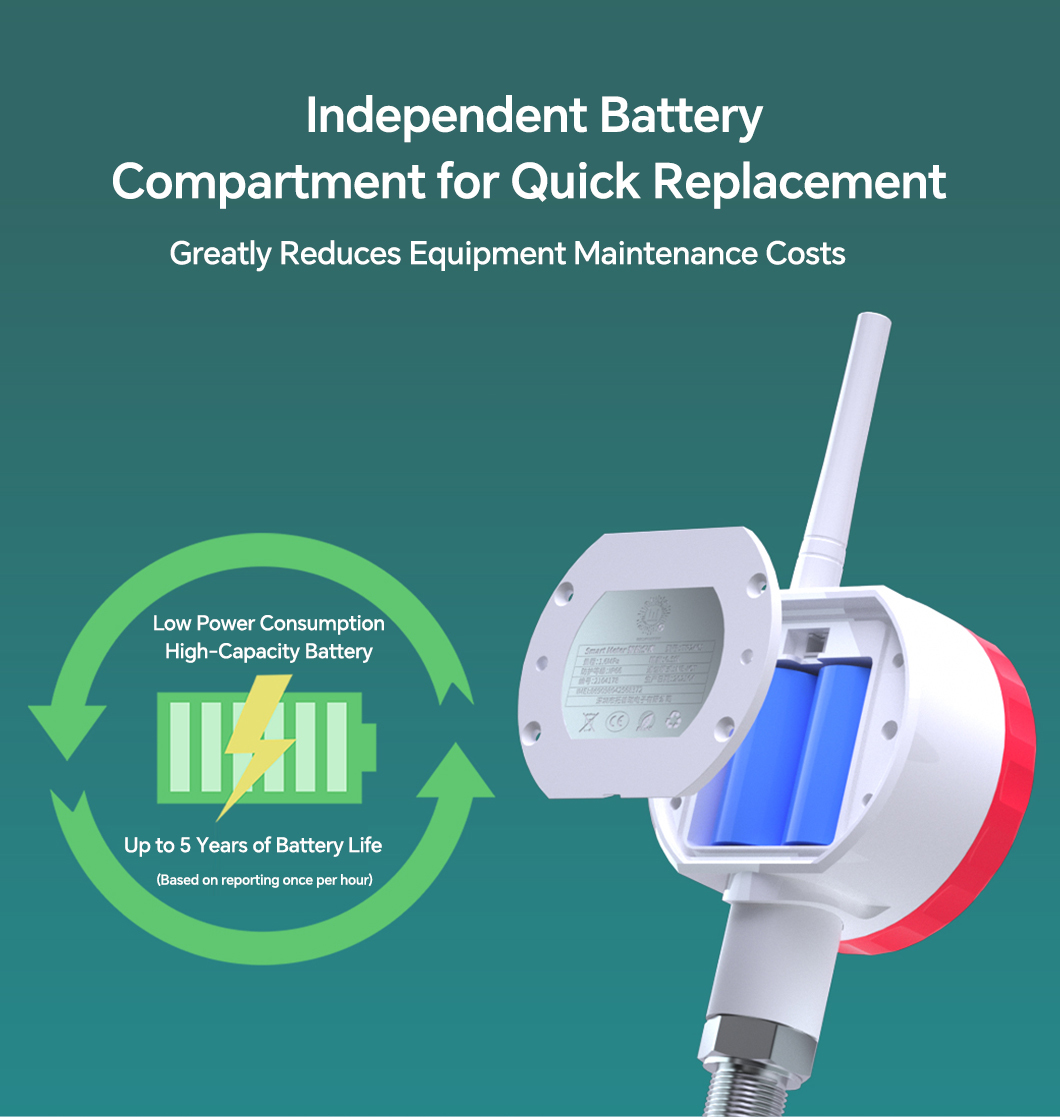

Long Battery Life: Up to 5 years with hourly data transmission.



Application


The TP2403 Wireless Waterproof Level Gauge is suitable for a wide range of liquid level monitoring applications, including fire water tanks, water supply tanks, industrial storage tanks, agricultural irrigation, and water treatment systems. With NB-IoT, 4G, and LoRa communication options, it enables reliable remote monitoring in locations where wired installation is difficult. Its low-power design, long battery life, and waterproof construction make it an ideal solution for long-term and low-maintenance liquid level monitoring.
