Battery Operated Wireless Level transmitter 0‑100M Submersible Probe
Battery Operated Wireless Level transmitter 0‑100M Submersible Probe
Battery Operated Wireless Level transmitter 0‑100M Submersible Probe
Battery Operated Wireless Level transmitter 0‑100M Submersible Probe
Specifications
Supply Ability :
100 pieces per day
Range :
0-50m
Model Number :
TP2403
Battery capacity :
17000mAh non rechargeable battery
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Accuracy :
0.5%F.S
Protocol :
MQTT,TCP/IP, Private protocol
Price :
USD195.00~USD 225.00
Unit :
m
Communication :
Lora
MOQ :
1 piece
Delivery Time :
5-8 workdays
Configuration :
USB
Certification :
CE,ROHS
Place of Origin :
China
Packaging Details :
Packed in paper carton
Brand Name :
TOPRIE
Battery lifespan :
4G,WiFi data was uploaded to server an hour last 2-2.5 years, LoRa,LoRaWAN last 4-5 years
Description

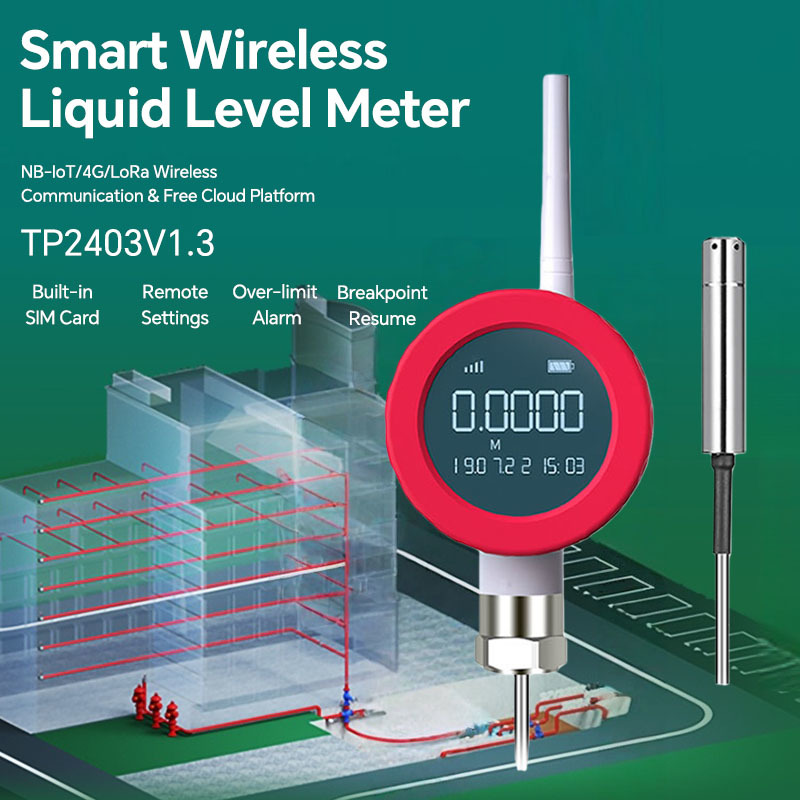

Wireless IoT Level Monitor IP66 CE ROHS For Storage Tank Remote Data Collection

Monitor Smarter. Maintain Less. The TP2403 Wireless Waterproof Level Gauge delivers accurate liquid level measurement and reliable remote monitoring wherever you need it. With 0.5% FS accuracy, NB-IoT/4G/LoRa connectivity, a 2.4-inch LCD display, breakpoint data transmission, and up to 5 years of battery life, the TP2403 makes liquid level monitoring smarter, easier, and more efficient.

Technical Specifications
Range 0……50m……70m
Accuracy 0.5%F.S
Battery Capacity 17000mAh non rechargeable lithium battery
Protection Level IP66
Display TFT
Power Consumption Standby current ≤80uA, average data transmission current ≤150mA
Communication 4G,WiFi,LoRaWAN,LoRa,NB-IoT
Antenna External
Installation Vertical,Horizontal
Sampling Interval Time 10 sec~2550 sec
Uploaded Interval Time 1 Min~1440Mins, the shorter of Uploaded time you setup, the shorter lifetime of battery
Configuration USB C,Bluetooth
Wake-up Mode Button,timing
Uploaded Data Information Liquid level,Temperature, Battery Level, Signal, SIM card
Material Housing part Aluminum alloy, Sensor part: SS304
Process connection NPT1/2,M20*1.5,BSP1/2 ect..
Advantages
  • High Precision Measurement: Accurate to 0.5% Full Scale for reliable readings.
  • TFT LCD Display: Clear 2.4-inch screen for easy viewing.
  • IP66 Protection: Dustproof and waterproof for outdoor use.
  • Long Battery Life: Up to 5 years with hourly data transmission.
  • Over Limit Alarm: Alerts you when levels exceed limits.
Application

The TP2403 Wireless Waterproof Level Gauge is suitable for a wide range of liquid level monitoring applications, including fire water tanks, water supply tanks, industrial storage tanks, agricultural irrigation, and water treatment systems. With NB-IoT, 4G, and LoRa communication options, it enables reliable remote monitoring in locations where wired installation is difficult. Its low-power design, long battery life, and waterproof construction make it an ideal solution for long-term and low-maintenance liquid level monitoring.

FAQs
Are you a factory/manufacturer?
Yes, We are professional factory/manufacturer of paperless recorder,humidity and temperature logger,gas detector,wireless smart sensor,sound level meter,liquid level meter, IoT gateway,thermal imaging camera,power quality meter/analyzer ect
What's the main communication method?
We often accord client's requirements to meet their demands. such as GPRS,4G,WIFI,LoRa ect
Can I customized my logo and different communication methods?
Yes,For customized logo that will be okay,but there is a small MOQ.For communication method,please keep us informed in advance.we will prepare a quotation for you quickly as your requirements.
What's the delivery time?
Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your order quantity.
May I know your warranty?
Yes, usually it's 1 year. We can send you detailed warranty document if needed.
