Specifications
Color :
Yellow
Model Number :
TP2403Vx.5-Ex
Certificates :
CE CNEX RHOS
Price :
USD 170.00~USD210.00
Warranty :
12 months
Supply Ability :
100 pcs per day
Range :
0-5m......50m
MOQ :
1 piece
Delivery Time :
5-8 working days
Accuracy :
0.5%F.S
Payment Terms :
Western Union,D/P,T/T,D/A,L/C
Communication :
4G/WIFI/LoRaWAN/LoRa/GSM
Protocol :
MQTT/TCP/IP/Private protocol
Certification :
CE ROHS IP67
Brand Name :
OEM
Packaging Details :
Packed in Paper carton
Place of Origin :
Shenzhen
Description

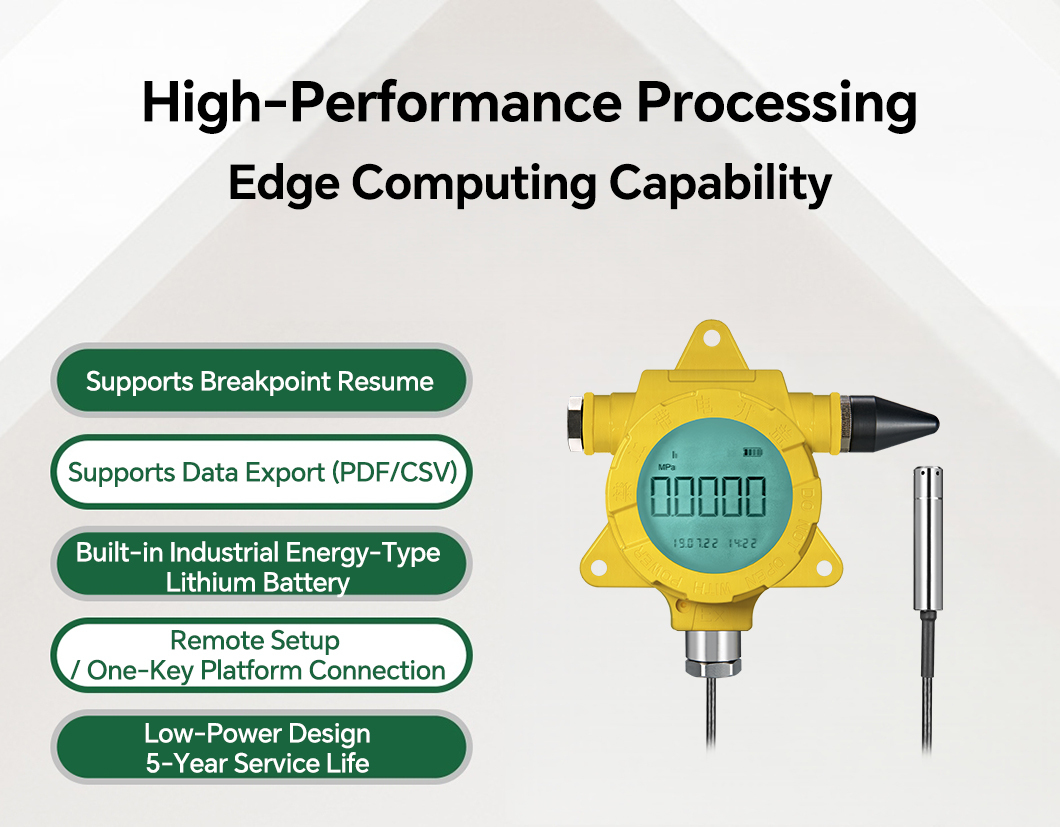

Low Power Explosion Proof Liquid Level transmitter For Storage Tank

The TP2403 Intelligent Level Transmitter is a wireless solution for remote level monitoring in industrial applications. Supporting 4G, LoRa, and LoRaWAN communication, it provides accurate level measurement and real-time data transmission. Its durable design, long-life battery, and easy installation make it suitable for long-term field deployment. Integrated with an IoT platform and mobile APP, the TP2403 enables convenient remote monitoring and data management. It is widely applicable to water tanks, wastewater treatment, oil & gas fields, and other industrial applications.

Low Power Explosion Proof Liquid Level transmitter  For Storage Tank

Product Parameters
Product Name Wireless level sensor
Working power Battery powered waterproof version 3.6V, 17Ah; explosion-proof version 3.6V, 19Ah
(External power supply and rechargeable version need to be specified)
Battery life NB-IOT/ LoRa communication: 5-6 years (data is uploaded once an hour, with a stable signal)
4G communication: 2-2.5 years (data is uploaded once an hour, with a stable signal)
Battery model (non-rechargeable batteries, replaceable batteries)
Display TFT LCD screen
Power consumption Standby current ≤80uA, average data transmission current ≤150mA1
Network Standard WIFI, 4G(SIM card), LoRa (Need use our LoRa gateway), RS485,LoRaWAN, NB-IOT, GPRS optional
Antenna External antenna
Sampling interval Configurable time is 10S~2550S
Configuration Configurable time is 1min~1440min. Note: The shorter of configurable time, the shorter usage of battery life
Data transmit interval USB configuration operation, server remote configuration, Bluetooth configuration
Wake-up mode Button, timing, alarm
Upload information level, temperature, battery level, signal, card number
Operating temperature -30°C~70°C,Humidity<90%
Measuring range 0-5M (default); (0-100M optional), Support customize.
Measurement accuracy 0.5% F.S
Temperature Effect 0.015%F.S/°C
Overload Effect 200%F.S
Interface specifications Submersible
Data storage Support data storage function, data re-issuance function
Protection level Waterproof model IP66; explosion-proof model IP68
Advantage
  • Fast respond,abnormal pressure value alarm
  • Low power consumption,durable, long lifespan
  • Real-time monitor solution
  • Free IoT platform and mobile APP remote monitor
  • Large capacity non rechargeable battery 19000mA
About US

Shenzhen Toprie Electronics Co., Ltd. is a leading Chinese manufacturer specializing in industrial automation and IoT instrumentation. Established in 2009, Toprie focuses on the R&D, manufacturing, and supply of IIoT smart pressure transmitters, data loggers, energy meters, Modbus gateways, dust particle counters, and other intelligent measurement solutions.

With 6 mass-production lines, Toprie has an annual production capacity of up to 1.2 million pressure transmitters and 400,000 energy meters. Our product portfolio includes more than 100 models, covering pressure, temperature, level, gas detection, energy measurement, and IoT wireless monitoring.

Our products support various communication technologies, including 4G, Wi-Fi, LoRa, NB-IoT, LoRaWAN, and Zigbee, as well as protocols such as Modbus RTU, Modbus TCP/IP, MQTT, CAN FD, and proprietary protocols, enabling flexible integration with industrial automation and IoT systems.

With a team of 130+ professionals, Toprie provides reliable OEM, customized, and system integration solutions to customers worldwide. Our products are currently sold in more than 90 countries and regions across the Americas, Europe, Asia, Africa, and Oceania.

Toprie is committed to providing reliable industrial measurement and IoT solutions and becoming your trusted long-term partner.

FAQs

Are you a factory/manufacturer?
-----Yes, We are professional factory/manufacturer of paperless recorder,humidity and temperature logger,gas detector,wireless smart sensor,sound level meter,liquid level meter, IoT gateway,thermal imaging camera,power quality meter/analyzer ect

What's the main communication method?
-----We often accord client's requirements to meet their demands. such as GPRS,4G,WIFI,LoRa ect

Can I customized my logo and different communication methods?
-----Yes,For customized logo that will be okay,but there is a small MOQ.For communication method,please keep us informed in advance.we will prepare a quotation for you quickly as your requirements.

What's the delivery time?
------Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your order quantity.

May I know your warranty?
-------Yes, usually it's 1 year. We can send you detailed warranty document if needed.
