NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-1200
Place of Origin :
Wenzhou China
MOQ :
1
Price :
20200$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
1200 capsules/min
No.of segment bores :
9
Suitable fof capsule :
00#-5#
Total power :
5.6Kw(standard)
Overall weight :
1100Kgs
Overall diemensions :
870(+339)mm*940(+339)mm*2000mm
Description

Overview of the machine:

Automatic Capsule Filling Machine NJP-1200C Introduction Of Product Capsule Production Equipment

The NJP-1200 series capsule filling machine designed and produced by our factory has been improved and innovated for many times, and is the preferred equipment for hospitals and small and medium-sized pharmaceutical factories, replacing the original semi-automatic capsule filling equipment.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and capsule filling, and can be equipped with automatic bag delivery machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 1200Capsules/min
No.of segment bores3 3
Suitable fof capsule 00#-5#
Total power 5.6Kw(Standard configuration)
Overall weight90 900Kgs
Overall diemensions 760(+304)mm*780mm(+304)*1900mm
Noise ≤75DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤6m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

The process of capsule filling:

NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line



Closed station turntable:

1.Use the imported silicone sealing ring to reduce the condition that the powder is brought into the turntable due to the expansion of the movement axis, and smooth operation, high accuracy;
2.It solves the complicated problem of installing and dismantling the mold, reduces the labor intensity of the staff, and strengthens the service life of the station rotary table.

NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line

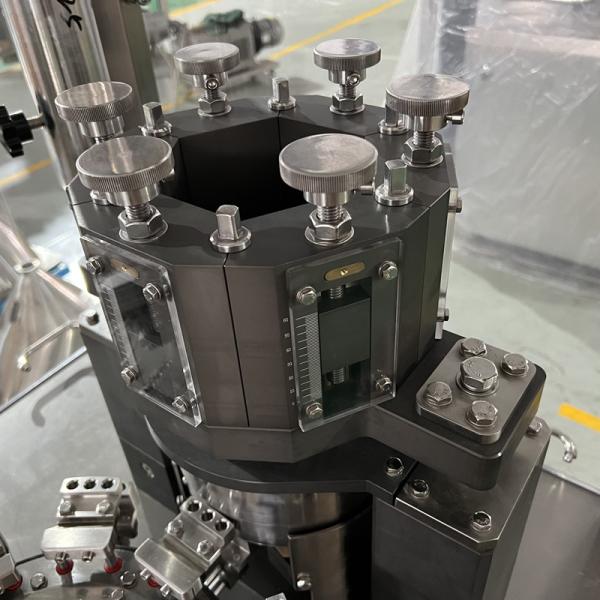

Three-dimensional adjustment mechanism:

1.Eliminate the metering plate, copper ring natural deformation degree, uniform clearance, reduce the phenomenon of powder leakage;
2.Easy to disassemble and disassemble, easy to clean;
3.Ensure device differences.
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line

Copper collar:

NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
1.Hard column: stable particle weight, loading amount close to the maximum value, one or two groups of filling rods have obvious beating, the adjustment range is too small, the machine load is large, the corresponding parts wear fast.
2.Soft column: stable grain weight, large adjustment range, small load, small wear of parts.
Half column: sometimes appear puff powder particle weight and light.
3.Scattered sand: leakage, dirty machine table, installation difference. The gap type copper ring can be replaced with the sealing type.
NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line According to the material situation, the company provides the optional replacement copper ring

Vacuum separation mechanism:

NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line

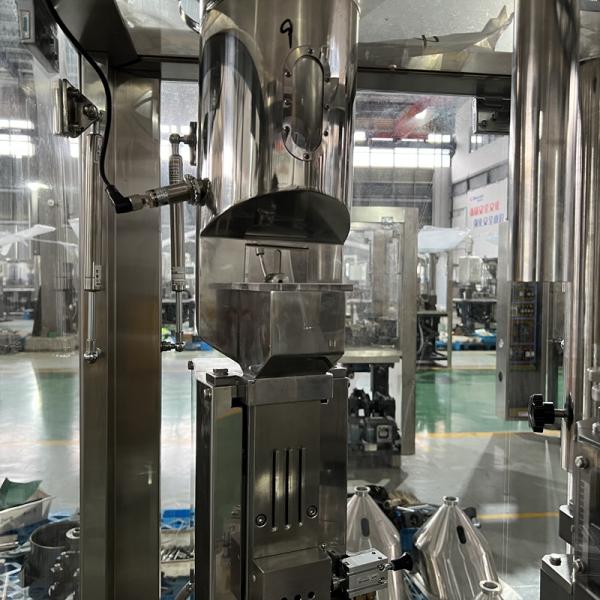

Modular powder filling mechanism:

NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line

Other performance:

NJP-1200C Pharma Capsules Pellet Filling Machine Capsule Filling Line
