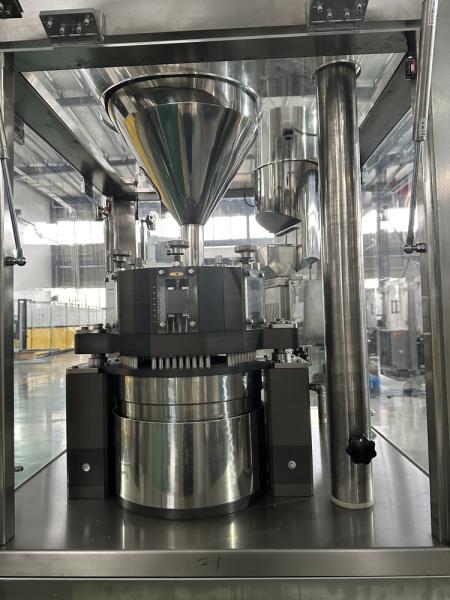

Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-1200
Place of Origin :
Wenzhou China
MOQ :
1
Price :
20200$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
1200 capsules/min
No.of segment bores :
9
Total power :
5.6Kw(standard)
Overall weight :
1100Kgs
Overall diemensions :
870(+339)mm*940(+339)mm*2000mm
Noise :
≤75DB（A）
Description

Overview of the machine:

High Quality Capsule Filling Machine Hard Capsule Filling Machine Filling Machine Capsule Filling Capsule Device

The NJP-1200 series capsule filling machine designed and produced by our factory has been improved and innovated for many times, and is the preferred equipment for hospitals and small and medium-sized pharmaceutical factories, replacing the original semi-automatic capsule filling equipment.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and capsule filling, and can be equipped with automatic bag delivery machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 1200Capsules/min
No.of segment bores3 3
Suitable fof capsule 00#-5#
Total power 5.6Kw(Standard configuration)
Overall weight90 900Kgs
Overall diemensions 760(+304)mm*780mm(+304)*1900mm
Noise ≤75DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤6m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

Body cap separation of the empty capsule:

principle
When the empty capsule enters the module hole, the vacuum suction seat rises and is tightened with the lower module. Because the diameter of the small hole of the upper and lower module steps is less than the diameter of the capsule cap and the capsule body respectively; when the vacuum is connected, the capsule body is sucked into the lower module hole, the steps in the upper module die hole block the capsule cap down, and the empty capsule cap is separated.
Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
Filling-type metering filling:
A-f represents the punching rod of each group, during the interval after the interval time the angle. The powder in the measuring plate mold hole is compacted by each group punching rod once. When the charging rod is lifted from the die hole, the powder box rotates, and the powder on the metering plate will automatically fill the remaining space in the die hole. Fill once, compaction once, until the sixth time, the punching rod will poke the powder column in the mold hole out of the measuring plate, so that it will fall into the empty capsule below, complete the filling work.
Use the relative movement between the scraping powder block and the measuring plate to scrape the excess powder on the surface of the measuring plate to ensure the measurement requirements of the powder column.
The characteristics of the packing-type measurement method
1. The loading amount is accurate, and the difference of the loading amount of> 0.3g is controlled within ± 3%.
2. Adjust the lifting height of the punching rod to fine-tune the dose of drug filling.

Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device

Modular powder filling mechanism:

Quantitative Hard Pellet Filling Machine Rotary Capsule Filling Device
