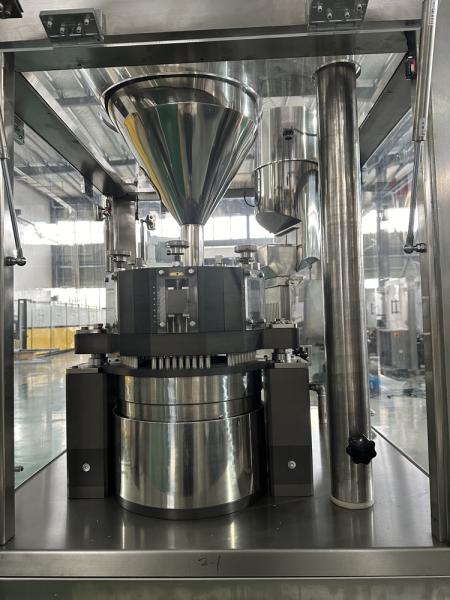

5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-1200
Place of Origin :
Wenzhou China
MOQ :
1
Price :
20200$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
1200 capsules/min
No.of segment bores :
9
Suitable fof capsule :
00#-5#
Total power :
5.6Kw(standard)
Overall weight :
1100Kgs
Overall diemensions :
870(+339)mm*940(+339)mm*2000mm
Description

Overview of the machine:

High-Tech Pharmaceutical Machine Pharmaceutical Machine Capsule Powder Fill

The NJP-1200 series capsule filling machine designed and produced by our factory has been improved and innovated for many times, and is the preferred equipment for hospitals and small and medium-sized pharmaceutical factories, replacing the original semi-automatic capsule filling equipment.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and capsule filling, and can be equipped with automatic bag delivery machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 1200Capsules/min
No.of segment bores3 3
Suitable fof capsule 00#-5#
Total power 5.6Kw(Standard configuration)
Overall weight90 900Kgs
Overall diemensions 760(+304)mm*780mm(+304)*1900mm
Noise ≤75DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤6m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

The process of capsule filling:

5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment

Expansion diagram of the working principle:

5.6Kw Pellet Capsule Filling Machine Types Pharmaceutical equipment
