Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
CFK-3500
Place of Origin :
Wenzhou China
MOQ :
1
Price :
49500$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
3500 Capsules/min
No.of segment bores :
25
Suitable fof capsule :
00#-5#
Total power :
11.5Kw(standard)
Overall weight :
2200Kgs
Overall diemensions :
1435(+550)mm×1248(+280)mm×1960mm
Description

Overview of the machine:

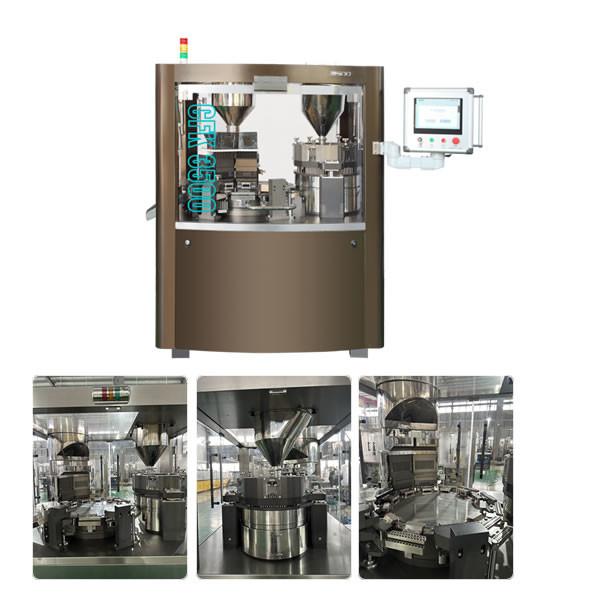

Hard Capsule Filling Machine Capsule Factory Medical Capsule Filling Machine

CFK-3500 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 3500Capsules/min
No.of segment bores 25
Suitable fof capsule 00#-5#
Total power 11.5Kw(Standard configuration)
Overall weight 2200Kgs
Overall diemensions 1435(+550)mm×1248(+280)mm×1960mm
Noise ≤80DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤12m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

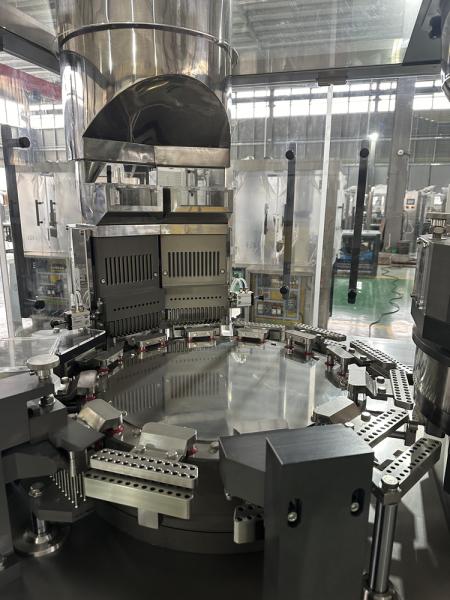

Locking unit:
1.The front slope can make the capsule ready to lock settle down in advance to avoid the phenomenon of the old locking device cutting cap and flying cap.
2.Added the locking cleaning device, locking while locking the sac cleaning block to work, remove the fine dust raised between the upper and lower molds.
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment

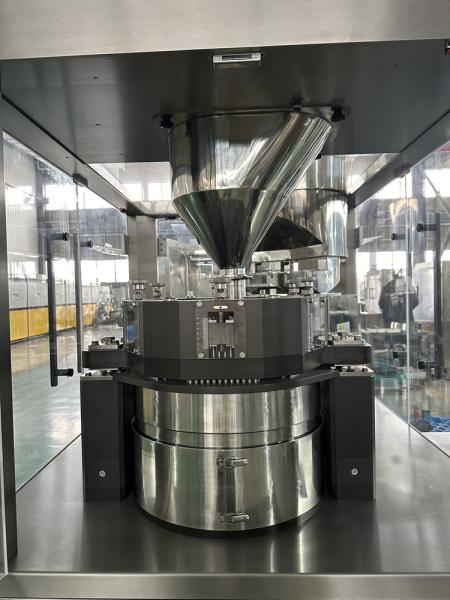

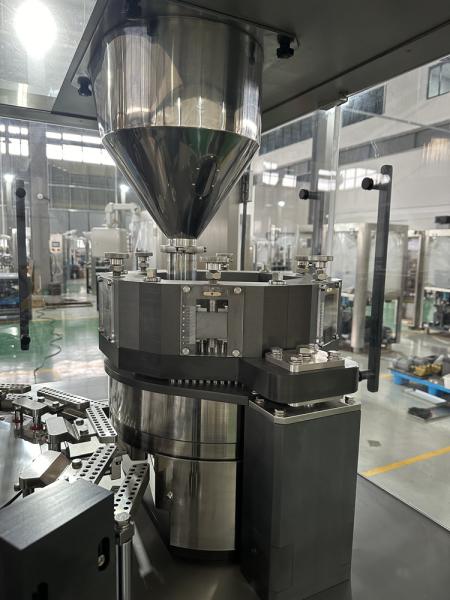

Easy to remove the hopper:

Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment The old hopper, loosen the hand wheel on the supporting column when disassembly and cleaning, and stretch on the long pressure spring in the column. Most of the hopper must be extended out of the upper Plexiglass to be removed. During the installation, the pressure spring needs to be squeezed to the bottom before tightening the hand wheel, and the employees need to spend a lot of effort to operate.
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment A screw was added to the supporting post, the screw passed through the panel, the top connecting the hopper support, and the motor and turbine box were installed at the bottom. During hopper disassembly and installation, the whole lifting process can be operated on the PLC operation panel. Due to the use of a single screw support, the work when there is a slight shaking phenomenon.
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment The split structure is directly fixed on the lower plane of the roof, with simple structure, stable and reliable when working, and convenient hopper disassembly. Release the fast interface of the material cylinder, then loosen the four screws on the hopper, then rotate out the small pin on the paddle, you can horizontally pan out of the filling part.

Copper collar:

Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment
1.Hard column: stable particle weight, loading amount close to the maximum value, one or two groups of filling rods have obvious beating, the adjustment range is too small, the machine load is large, the corresponding parts wear fast.
2.Soft column: stable grain weight, large adjustment range, small load, small wear of parts.
Half column: sometimes appear puff powder particle weight and light.
3.Scattered sand: leakage, dirty machine table, installation difference. The gap type copper ring can be replaced with the sealing type.
Medical Hard Pill Capsule Filling Machine Pharmaceutical equipment According to the material situation, the company provides the optional replacement copper ring
