Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-800
Place of Origin :
Wenzhou China
MOQ :
1
Price :
19500$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
800 Capsules/min
No.of segment bores :
6
Suitable fof capsule :
00#-5#
Total power :
4.5Kw(standard)
Overall weight :
1000Kgs
Overall diemensions :
840(+339)mm×820(+339)mm×2000mm
Description

Overview of the machine:

Industry Capsule Filling Machine High-Tech Pharmaceutical Machine Pharmaceutical Machine

The NJP-800 series capsule filling machine designed and produced by our factory has been improved and innovated for many times, and is the preferred equipment for hospitals and small and medium-sized pharmaceutical factories, replacing the original semi-automatic capsule filling equipment.

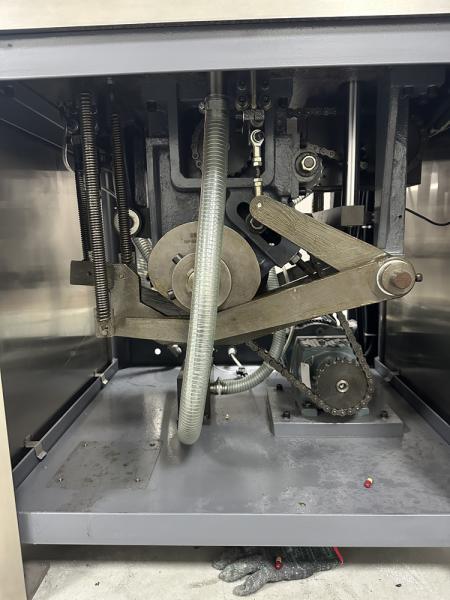

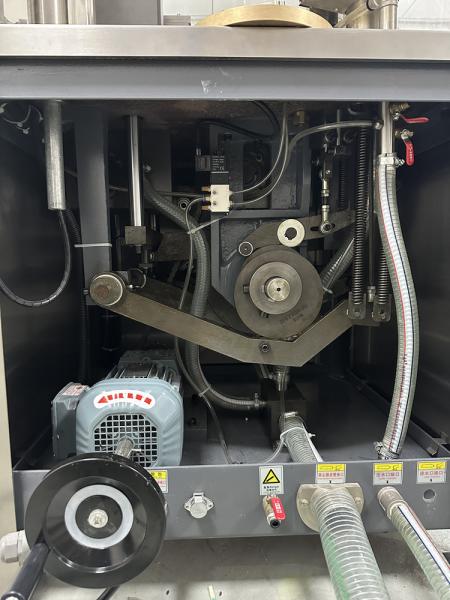

The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and capsule filling, and can be equipped with automatic bag delivery machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 800Capsules/min
No.of segment bores36 6
Suitable fof capsule 00#-5#
Total power 4.5Kw(Standard configuration)
Overall weight90 1000Kgs
Overall diemensions
840(+339)mm×820(+339)mm×2000m
Noise ≤75DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤6m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

Material feeding method:

Industry Auto Pharmaceutical Capsule Machine 4.5Kw Empty Capsules Filler Industry Auto Pharmaceutical Capsule Machine 4.5Kw Empty Capsules Filler Industry Auto Pharmaceutical Capsule Machine 4.5Kw Empty Capsules Filler
Manual feeding Lifter feeder(option)
Vacuum feeder (option)
1.Add the material to the hopper manually.
2.Large dust, high labor intensity.
3.No cost, to adapt to the smaller batch production
1.Through the transition feeding pipe, with a soft connection.
2.The feeding process is closed, no dust overflow, safety and health.
3.Adapt to the mixture of materials, can control to solve the problem of material stratification.
1.Compact structure, tight, no dust pollution, safety and health, low noise.
2.Simple installation, easy to operate, the transport is well adapted to the requirements of the filling machine.
3.Applicable to the 2.7m storey-high clean workshop.

Capsule feeding method:

Industry Auto Pharmaceutical Capsule Machine 4.5Kw Empty Capsules Filler

Feeding manually:

1.The capsule was manually added to the capsule bucket.
2.Applicable for smaller batch production

Industry Auto Pharmaceutical Capsule Machine 4.5Kw Empty Capsules Filler
Automatic transfer of empty capsule(option)

The bottom capsule delivery tube is connected to the compressed air, and the automatic capsule delivery machine delivers the capsule to the capsule bucket, without the need for manual capsule addition.
Automatic bag delivery machine is easy to operate, can automatically start and stop feeding, to ensure the continuity of the machine operation.

Finished capsule polisher:
Industry Auto Pharmaceutical Capsule Machine 4.5Kw Empty Capsules Filler Industry Auto Pharmaceutical Capsule Machine 4.5Kw Empty Capsules Filler Industry Auto Pharmaceutical Capsule Machine 4.5Kw Empty Capsules Filler
Capsule polisher(option) Capsule polisher with sorter(option) Vertical capsule polisher(option)

1.Capsule special polishing equipment, can remove the dust and static electricity on the surface of the capsule, improve the surface smooth.

2.Using infinite speed regulating motor, hopper height adjustable.

1.In addition to dust and polishing, eliminate static electricity, can also automatically remove the loading, shell, debris and body separation capsules.

2.Using frequency conversion speed regulation, sensitive and reliable speed can withstand a large start torque, synchronous belt output power to achieve low noise operation.

1.With capsule polishing, sorting, and improved functions, leaving high space for connecting to subsequent devices.

2.The entrance and exit can be adjusted by 360° circumference to facilitate production and save floor space.

3.The use of fast assembly connection structure makes the disassembly and installation of the machine more convenient and quick.

Other anxiliry machines:

Industry Auto Pharmaceutical Capsule Machine 4.5Kw Empty Capsules Filler

Metal detector(option)
Metals in separable materials
The integrated metal foreign body rapid removal system can be detected even if the metal is sealed in the product
A variety of caliber is optional, models to meet all practical applications
Compact structure and easy to install

Industry Auto Pharmaceutical Capsule Machine 4.5Kw Empty Capsules Filler

Industrial dust collector
 It is used to remove and collect the residual dust under the capsule filling machine, the residual waste in the mold hole, etc
