Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-5000
Place of Origin :
Wenzhou China
MOQ :
1
Price :
67000$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
5000 Capsules/min
No.of segment bores :
36 (three rows)
Suitable fof capsule :
00#-5#
Total power :
15Kw(standard)
Overall weight :
3200Kgs
Overall diemensions :
1605(+530)mmX1285(+285)mmX2091mm
Description

Overview of the machine:

Hard Capsule Filling Machine Medical Pharmaceutical Machine Electric Pharmaceutical Machine Pharmaceutical Technology

NJP-5000 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

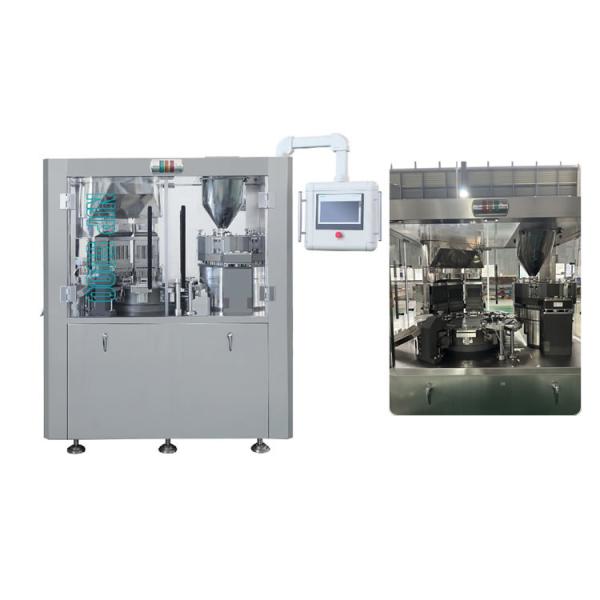

Display diagram for the reference:

Medical Pharmaceutical Capsule Machine Electric Hard Capsule Machine Factory

Technical parameters:

Output 5000Capsules/min
No.of segment bores 36(Three rows)
Suitable fof capsule 00#-5#
Total power 15Kw(Standard configuration)
Overall weight 3200Kgs
Overall diemensions 1605(+530)mmX1285(+285)mmX2091mm
Noise ≤80DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤15m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±3%~±7%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

Expansion diagram of the working principle:

Medical Pharmaceutical Capsule Machine Electric Hard Capsule Machine Factory

Sort of empty capsule:
principle
The seeding tube is equipped with multiple circular holes and communicate with the capsule hopper, and the channel is equipped with capsule tablets.
The seeding sac tube slides up and down to drop the empty capsule into the pore channel. When the seeding capsule tube goes up, the capsule piece will jam the capsule. When the seeding tube falls down, the capsule holder rotates and drives the capsule to release the capsule, and the capsule falls out of the hole.
 Medical Pharmaceutical Capsule Machine Electric Hard Capsule Machine Factory

Orientation of the empty capsule:

Broadcast description
The capsule head always acts in the middle of the capsule body, and the capsule head pushes the capsule to make a U-turn movement, which always pushes the capsule body to the edge of the capsule comb, and then presses the capsule head down to turn the capsule over and push it vertically into the module hole.
principle
1. The thrust point of the capsule head is on the capsule body;
2. The width of the chute is smaller than the outer diameter of the capsule cap, which is larger than the outer diameter of the capsule body. It only has a tightness effect on the capsule cap and does not contact with the capsule body.
Orientation of the empty capsule

Medical Pharmaceutical Capsule Machine Electric Hard Capsule Machine Factory
