Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-5000
Place of Origin :
Wenzhou China
MOQ :
1
Price :
67000$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
5000 Capsules/min
No.of segment bores :
36 (three rows)
Overall weight :
3200Kgs
Overall diemensions :
1605(+530)mmX1285(+285)mmX2091mm
Noise :
≤80DB（A）
Pressure :
0.4 ~ 0.7Mpa
Description

Overview of the machine:

Automatic Capsule Filling Machine High-Tech Pharmaceutical Machine Capsule Powder Fill

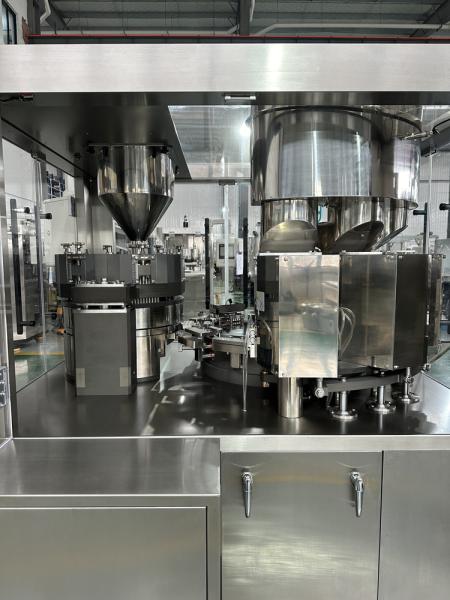

NJP-5000 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 5000Capsules/min
No.of segment bores 36(Three rows)
Suitable fof capsule 00#-5#
Total power 15Kw(Standard configuration)
Overall weight 3200Kgs
Overall diemensions 1605(+530)mmX1285(+285)mmX2091mm
Noise ≤80DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤15m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±3%~±7%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

Expansion diagram of the working principle:

High Tech Pharmaceutical Capsule Machine 15Kw low noise Capsule Filling Machine

Material feeding method:

High Tech Pharmaceutical Capsule Machine 15Kw low noise Capsule Filling Machine High Tech Pharmaceutical Capsule Machine 15Kw low noise Capsule Filling Machine High Tech Pharmaceutical Capsule Machine 15Kw low noise Capsule Filling Machine
Manual feeding Lifter feeder(option)
Vacuum feeder (option)
1.Add the material to the hopper manually.
2.Large dust, high labor intensity.
3.No cost, to adapt to the smaller batch production
1.Through the transition feeding pipe, with a soft connection.
2.The feeding process is closed, no dust overflow, safety and health.
3.Adapt to the mixture of materials, can control to solve the problem of material stratification.
1.Compact structure, tight, no dust pollution, safety and health, low noise.
2.Simple installation, easy to operate, the transport is well adapted to the requirements of the filling machine.
3.Applicable to the 2.7m storey-high clean workshop.
