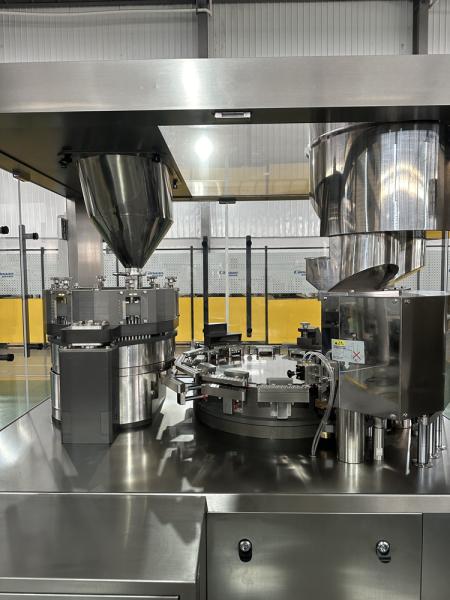

Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
CFK-3500
Place of Origin :
Wenzhou China
MOQ :
1
Price :
49500$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
3500 Capsules/min
No.of segment bores :
25
Suitable fof capsule :
00#-5#
Total power :
11.5Kw(standard)
Overall weight :
2200Kgs
Overall diemensions :
1435(+550)mm×1248(+280)mm×1960mm
Description

High-Tech Pharmaceutical Machine Capsule Filling Machine Manufacturer Powder Capsule Filling Machine

Display diagram for the reference:

Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine

Technical parameters:

Output 3500Capsules/min
No.of segment bores 25
Suitable fof capsule 00#-5#
Total power 11.5Kw(Standard configuration)
Overall weight 2200Kgs
Overall diemensions 1435(+550)mm×1248(+280)mm×1960mm
Noise ≤80DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤12m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.



Cleaning station:

Use
The cleaning unit cleans the module for access to the next cycle.
Principle
When the upper and lower modules are dragged under the main working plate and parked at the cleaning station, they are placed at the gap of the cleaning device. At this time, the compressed air is opened, and the powder in the mold hole and the broken skin are blown out of the mold hole from the lower direction of the lower module. The vacuum suction system placed above the mold hole draws it into the vacuum cleaner to keep the mold hole clean and to facilitate the next cycle operation.
 Pharmaceutical Automatic Pill Filling Machine Mini Capsule Filling Machine
