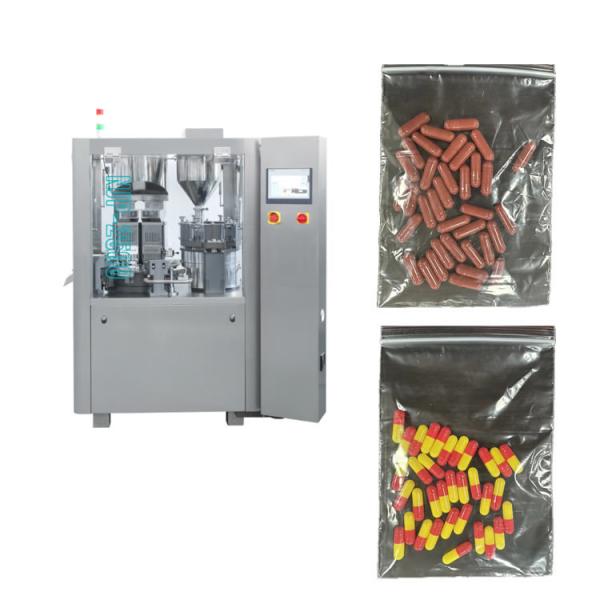

Industrial Powder Capsule Filling Machine 8Kw standard configuration
Industrial Powder Capsule Filling Machine 8Kw standard configuration
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-2500
Place of Origin :
Wenzhou China
MOQ :
1
Price :
38000$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
2500（Capsules/min）
No.of segment bores :
18
Suitable fof capsule :
00#-5#
Total power :
8Kw(standard)
Overall weight :
1650Kgs
Overall diemensions :
1230mm×1175(+382)mm×1955mm
Description

Overview of the machine:

Industrial High Speed Capsule Filling Machine Automatic Capsule Filler Medical Capsule Filling Machine

NJP-2500 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 2500Capsules/min
No.of segment bores 18
Suitable fof capsule 00#-5#
Total power 8Kw(Standard configuration)
Overall weight 1650Kgs
Overall diemensions 1230mm×1175(+382)mm×1955mm
Noise ≤75DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤9m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

Orientation of the empty capsule:

Broadcast description
The capsule head always acts in the middle of the capsule body, and the capsule head pushes the capsule to make a U-turn movement, which always pushes the capsule body to the edge of the capsule comb, and then presses the capsule head down to turn the capsule over and push it vertically into the module hole.
principle
1. The thrust point of the capsule head is on the capsule body;
2. The width of the chute is smaller than the outer diameter of the capsule cap, which is larger than the outer diameter of the capsule body. It only has a tightness effect on the capsule cap and does not contact with the capsule body.
Orientation of the empty capsule

Industrial Powder Capsule Filling Machine 8Kw standard configuration

Filling-type metering filling:
A-f represents the punching rod of each group, during the interval after the interval time the angle. The powder in the measuring plate mold hole is compacted by each group punching rod once. When the charging rod is lifted from the die hole, the powder box rotates, and the powder on the metering plate will automatically fill the remaining space in the die hole. Fill once, compaction once, until the sixth time, the punching rod will poke the powder column in the mold hole out of the measuring plate, so that it will fall into the empty capsule below, complete the filling work.
Use the relative movement between the scraping powder block and the measuring plate to scrape the excess powder on the surface of the measuring plate to ensure the measurement requirements of the powder column.
The characteristics of the packing-type measurement method
1. The loading amount is accurate, and the difference of the loading amount of> 0.3g is controlled within ± 3%.
2. Adjust the lifting height of the punching rod to fine-tune the dose of drug filling.

Industrial Powder Capsule Filling Machine 8Kw standard configuration
