Automated Powder Capsule Filling Machine Production low noise
Automated Powder Capsule Filling Machine Production low noise
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-2500
Place of Origin :
Wenzhou China
MOQ :
1
Price :
38000$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
2500（Capsules/min）
No.of segment bores :
18
Suitable fof capsule :
00#-5#
Total power :
8Kw(standard)
Overall weight :
1650Kgs
Overall diemensions :
1230mm×1175(+382)mm×1955mm
Description

Overview of the machine:

Automated Capsule Filling Machine Manufacturer Hard Capsule Filling Machine Capsule Production Equipment

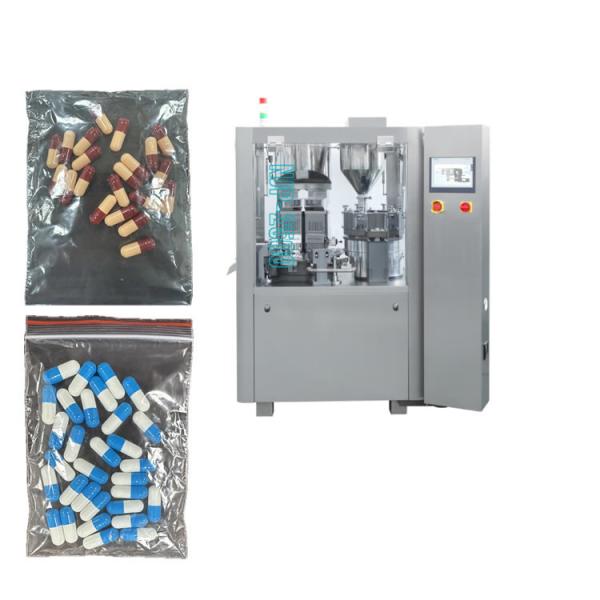

NJP-2500 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 2500Capsules/min
No.of segment bores 18
Suitable fof capsule 00#-5#
Total power 8Kw(Standard configuration)
Overall weight 1650Kgs
Overall diemensions 1230mm×1175(+382)mm×1955mm
Noise ≤75DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤9m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

Sort of empty capsule:
principle
The seeding tube is equipped with multiple circular holes and communicate with the capsule hopper, and the channel is equipped with capsule tablets.
The seeding sac tube slides up and down to drop the empty capsule into the pore channel. When the seeding capsule tube goes up, the capsule piece will jam the capsule. When the seeding tube falls down, the capsule holder rotates and drives the capsule to release the capsule, and the capsule falls out of the hole.
 Automated Powder Capsule Filling Machine Production low noise

Body cap separation of the empty capsule:

principle
When the empty capsule enters the module hole, the vacuum suction seat rises and is tightened with the lower module. Because the diameter of the small hole of the upper and lower module steps is less than the diameter of the capsule cap and the capsule body respectively; when the vacuum is connected, the capsule body is sucked into the lower module hole, the steps in the upper module die hole block the capsule cap down, and the empty capsule cap is separated.
Automated Powder Capsule Filling Machine Production low noise
