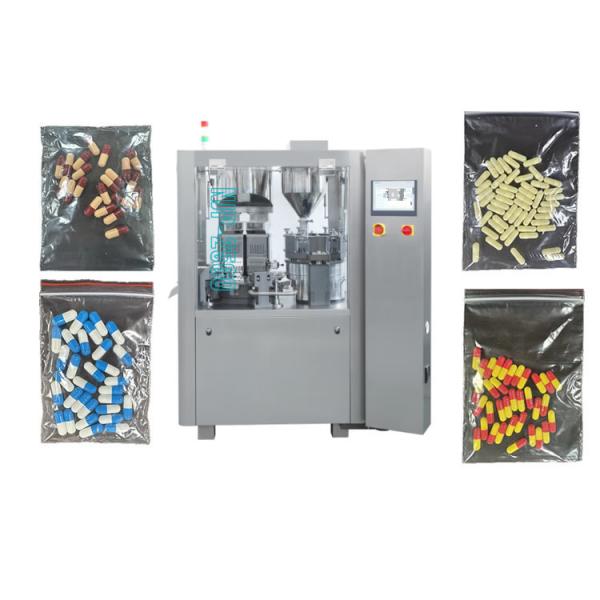

Pharmaceutical Powder Capsule Filling Machine High Speed automatic
Pharmaceutical Powder Capsule Filling Machine High Speed automatic
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-2500
Place of Origin :
Wenzhou China
MOQ :
1
Price :
38000$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
2500（Capsules/min）
No.of segment bores :
18
Suitable fof capsule :
00#-5#
Total power :
8Kw(standard)
Overall weight :
1650Kgs
Overall diemensions :
1230mm×1175(+382)mm×1955mm
Description

Overview of the machine:

Capsule Filling Pharmaceutical Machine High Speed Pharmaceutical Technology Pellet Filling Machine

NJP-2500 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 2500Capsules/min
No.of segment bores 18
Suitable fof capsule 00#-5#
Total power 8Kw(Standard configuration)
Overall weight 1650Kgs
Overall diemensions 1230mm×1175(+382)mm×1955mm
Noise ≤75DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤9m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.


Closed station turntable:

1.Use the imported silicone sealing ring to reduce the condition that the powder is brought into the turntable due to the expansion of the movement axis, and smooth operation, high accuracy;
2.It solves the complicated problem of installing and dismantling the mold, reduces the labor intensity of the staff, and strengthens the service life of the station rotary table.

Pharmaceutical Powder Capsule Filling Machine High Speed automatic

Locking unit:
1.The front slope can make the capsule ready to lock settle down in advance to avoid the phenomenon of the old locking device cutting cap and flying cap.
2.Added the locking cleaning device, locking while locking the sac cleaning block to work, remove the fine dust raised between the upper and lower molds.
Pharmaceutical Powder Capsule Filling Machine High Speed automatic
