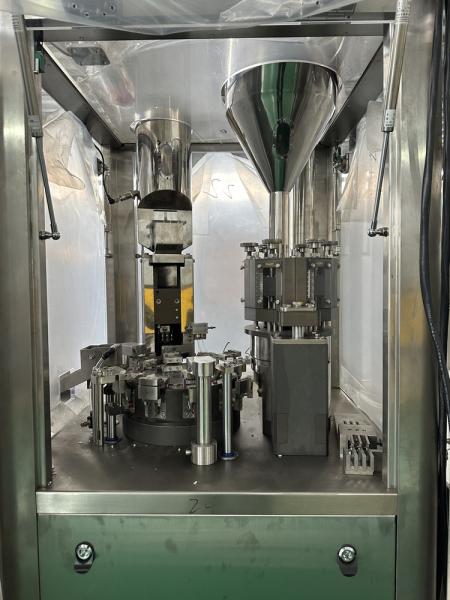

220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-400
Place of Origin :
Wenzhou China
MOQ :
1
Price :
18000$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Power Supply :
220V/50Hz
Material :
Stainless Steel
Control System :
PLC
Capsule Orientation :
Automatic
Safety Features :
Emergency Stop Button, Fault Alarm System
Description

Overview of the machine:

Powder Fill Filling High-Tech Pharmaceutical Machine

The NJP-400 series capsule filling machine designed and produced by our factory has been improved and innovated for many times, and is the preferred equipment for hospitals and small and medium-sized pharmaceutical factories, replacing the original semi-automatic capsule filling equipment.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and capsule filling, and can be equipped with automatic bag delivery machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 400Capsules/min
No.of segment bores36 3
Suitable fof capsule 00#-5#
Total power 4Kw(Standard configuration)
Overall weight90 900Kgs
Overall diemensions 760(+304)mm*780mm(+304)*1900mm
Noise ≤75DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤6m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

Three-dimensional adjustment mechanism:

1.Eliminate the metering plate, copper ring natural deformation degree, uniform clearance, reduce the phenomenon of powder leakage;
2.Easy to disassemble and disassemble, easy to clean;
3.Ensure device differences.
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment

Copper collar:

220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment
1.Hard column: stable particle weight, loading amount close to the maximum value, one or two groups of filling rods have obvious beating, the adjustment range is too small, the machine load is large, the corresponding parts wear fast.
2.Soft column: stable grain weight, large adjustment range, small load, small wear of parts.
Half column: sometimes appear puff powder particle weight and light.
3.Scattered sand: leakage, dirty machine table, installation difference. The gap type copper ring can be replaced with the sealing type.
220V 50Hz High Speed Capsule Filling Machine Pharmaceutical equipment According to the material situation, the company provides the optional replacement copper ring
