Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-400
Place of Origin :
Wenzhou China
MOQ :
1
Price :
18000$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Weight :
900Kgs
Operation Mode :
Automatic
Power Consumption :
4KW
Filling Material :
Powder, Pellets
Safety Features :
Emergency stop button, overload protection, automatic alarm system
Type :
NJP-400
Description

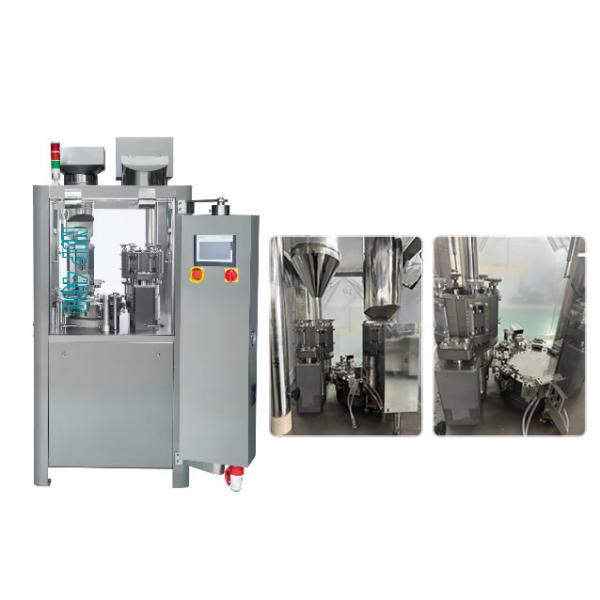

Overview of the machine:

Automatic Capsule Filling Machine Automatic Capsule Filler High Quality Capsule Filling Machine

The NJP-400 series capsule filling machine designed and produced by our factory has been improved and innovated for many times, and is the preferred equipment for hospitals and small and medium-sized pharmaceutical factories, replacing the original semi-automatic capsule filling equipment.

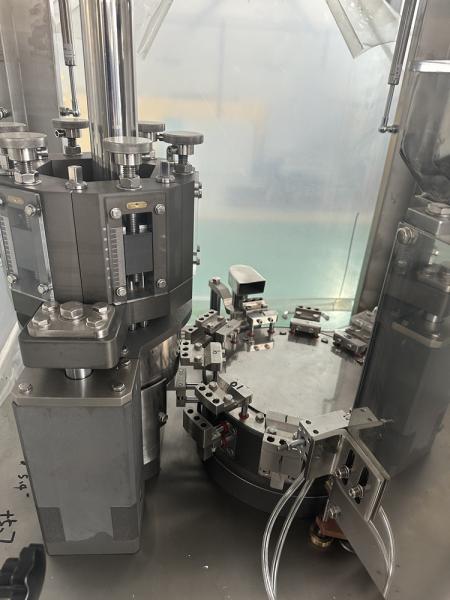

The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and capsule filling, and can be equipped with automatic bag delivery machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 400Capsules/min
No.of segment bores36 3
Suitable fof capsule 00#-5#
Total power 4Kw(Standard configuration)
Overall weight90 900Kgs
Overall diemensions 760(+304)mm*780mm(+304)*1900mm
Noise ≤75DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤6m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.


Finished capsule polisher:
900Kgs Safety High Speed Capsule Filling Machine Automatic Capsule Filler 900Kgs Safety High Speed Capsule Filling Machine Automatic Capsule Filler 900Kgs Safety High Speed Capsule Filling Machine Automatic Capsule Filler
Capsule polisher(option) Capsule polisher with sorter(option) Vertical capsule polisher(option)

1.Capsule special polishing equipment, can remove the dust and static electricity on the surface of the capsule, improve the surface smooth.

2.Using infinite speed regulating motor, hopper height adjustable.

1.In addition to dust and polishing, eliminate static electricity, can also automatically remove the loading, shell, debris and body separation capsules.

2.Using frequency conversion speed regulation, sensitive and reliable speed can withstand a large start torque, synchronous belt output power to achieve low noise operation.

1.With capsule polishing, sorting, and improved functions, leaving high space for connecting to subsequent devices.

2.The entrance and exit can be adjusted by 360° circumference to facilitate production and save floor space.

3.The use of fast assembly connection structure makes the disassembly and installation of the machine more convenient and quick.

Other anxiliry machines:

900Kgs Safety High Speed Capsule Filling Machine Automatic Capsule Filler

Metal detector(option)
Metals in separable materials
The integrated metal foreign body rapid removal system can be detected even if the metal is sealed in the product
A variety of caliber is optional, models to meet all practical applications
Compact structure and easy to install

900Kgs Safety High Speed Capsule Filling Machine Automatic Capsule Filler

Industrial dust collector
 It is used to remove and collect the residual dust under the capsule filling machine, the residual waste in the mold hole, etc
