Small High Speed Capsule Filling Machine Stainless steel for Pharmaceutical
Small High Speed Capsule Filling Machine Stainless steel for Pharmaceutical
Small High Speed Capsule Filling Machine Stainless steel for Pharmaceutical
Small High Speed Capsule Filling Machine Stainless steel for Pharmaceutical
Small High Speed Capsule Filling Machine Stainless steel for Pharmaceutical
Small High Speed Capsule Filling Machine Stainless steel for Pharmaceutical
Small High Speed Capsule Filling Machine Stainless steel for Pharmaceutical
Small High Speed Capsule Filling Machine Stainless steel for Pharmaceutical
Small High Speed Capsule Filling Machine Stainless steel for Pharmaceutical
Small High Speed Capsule Filling Machine Stainless steel for Pharmaceutical
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-400
Place of Origin :
Wenzhou China
MOQ :
1
Price :
18000$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Power Supply :
220V/50Hz
Application :
Pharmaceutical
Power :
4KW
Model :
NJP-400
Filling Type :
Powder, Pellets
Material :
Stainless steel
Cleaning :
Easy disassembly and cleaning
Description

Overview of the machine:

Hard Capsule Filling Machine Filling Machine Capsule Filling Capsule Device Medical Device Capsule

The NJP-400 series capsule filling machine designed and produced by our factory has been improved and innovated for many times, and is the preferred equipment for hospitals and small and medium-sized pharmaceutical factories, replacing the original semi-automatic capsule filling equipment.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and capsule filling, and can be equipped with automatic bag delivery machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 400Capsules/min
No.of segment bores36 3
Suitable fof capsule 00#-5#
Total power 4Kw(Standard configuration)
Overall weight90 900Kgs
Overall diemensions 760(+304)mm*780mm(+304)*1900mm
Noise ≤75DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤6m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

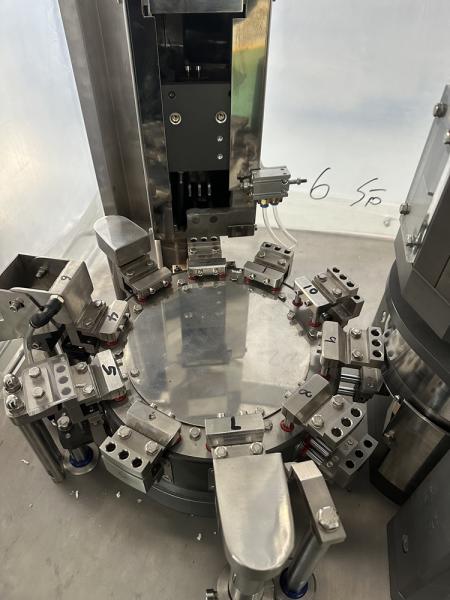

Closed station turntable:

1.Use the imported silicone sealing ring to reduce the condition that the powder is brought into the turntable due to the expansion of the movement axis, and smooth operation, high accuracy;
2.It solves the complicated problem of installing and dismantling the mold, reduces the labor intensity of the staff, and strengthens the service life of the station rotary table.

Small High Speed Capsule Filling Machine Stainless steel for Pharmaceutical
