Industry High Speed Capsule Filling Machine Pharmaceutical Production
Industry High Speed Capsule Filling Machine Pharmaceutical Production
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-3500
Place of Origin :
Wenzhou China
MOQ :
1
Price :
49500$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
3500 capsules/min
No.of segment bores :
25
Suitable fof capsule :
00#-5#
Total power :
11.5Kw(standard)
Overall weight :
2200Kgs
Overall diemensions :
1435(+550)mm×1248(+280)mm×1960mm
Description

Overview of the machine:

Industry High-Tech Pharmaceutical Machine Pharmaceutical Production Machine Pharmaceutical Technology Capsule Filling Machine Manufacturer

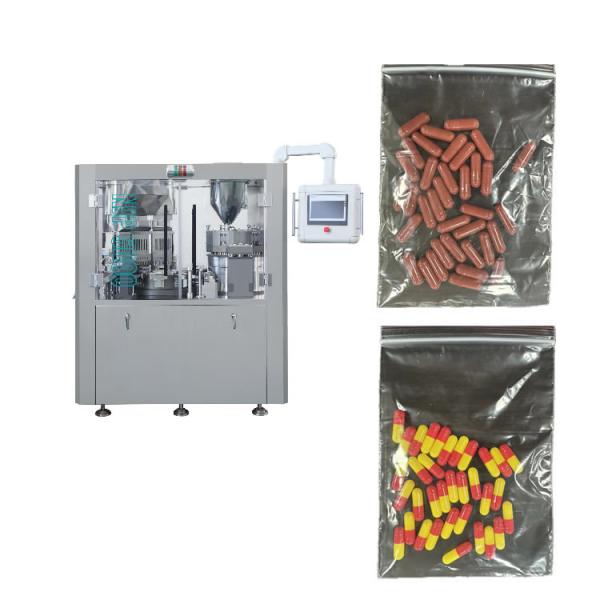

NJP-3500 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 3500Capsules/min
No.of segment bores 25
Suitable fof capsule 00#-5#
Total power 11.5Kw(Standard configuration)
Overall weight 2200Kgs
Overall diemensions
1435(+550)mm×1248(+280)mm×1960m
Noise ≤80DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤12m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

The process of capsule filling:

Industry High Speed Capsule Filling Machine Pharmaceutical Production


Closed station turntable:

1.Use the imported silicone sealing ring to reduce the condition that the powder is brought into the turntable due to the expansion of the movement axis, and smooth operation, high accuracy;
2.It solves the complicated problem of installing and dismantling the mold, reduces the labor intensity of the staff, and strengthens the service life of the station rotary table.

Industry High Speed Capsule Filling Machine Pharmaceutical Production
