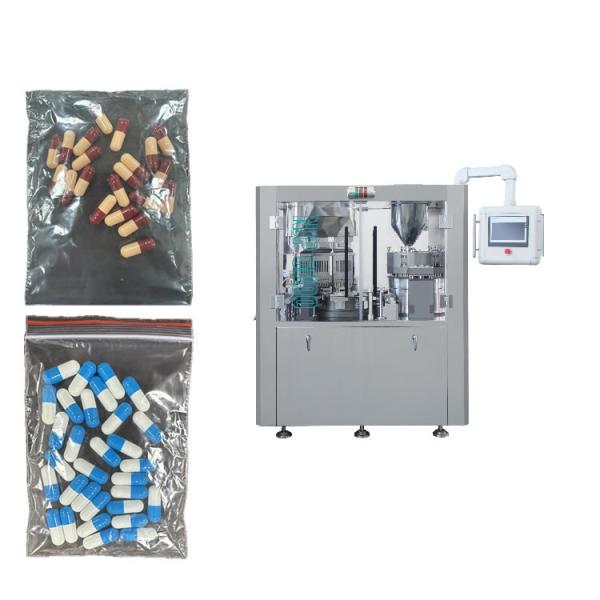

Automated High Speed Capsule Filling Machine Industrial Pharmaceutical
Automated High Speed Capsule Filling Machine Industrial Pharmaceutical
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-3500
Place of Origin :
Wenzhou China
MOQ :
1
Price :
49500$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
3500 capsules/min
No.of segment bores :
25
Suitable fof capsule :
00#-5#
Total power :
11.5Kw(standard)
Overall weight :
2200Kgs
Overall diemensions :
1435(+550)mm×1248(+280)mm×1960mm
Description

Overview of the machine:

Automated Industrial Capsule Powder Fill Automatic Capsule Filler High Quality Capsule Filling Machine

NJP-3500 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 3500Capsules/min
No.of segment bores 25
Suitable fof capsule 00#-5#
Total power 11.5Kw(Standard configuration)
Overall weight 2200Kgs
Overall diemensions
1435(+550)mm×1248(+280)mm×1960m
Noise ≤80DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤12m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

The process of capsule filling:

Automated High Speed Capsule Filling Machine Industrial Pharmaceutical

hole, etc

The smooth drive system:

1.The DF110 and DF80 type grading box combination are used to make reasonable adaptation. Greatly improves the stability and service life of the machine.
2.Improve the transmission cam of all stations, use high quality special steel to make the inner groove wheel drive, eliminate the disadvantages of spring pulling easy fatigue and fracture, and wear resistance, stable operation.
3.The new layout design of the mechanical transmission part and with the "inner cam" instead of the traditional "lever" filling transmission mechanism, so that the machine runs more quiet and stable.
Automated High Speed Capsule Filling Machine Industrial Pharmaceutical Automated High Speed Capsule Filling Machine Industrial Pharmaceutical Automated High Speed Capsule Filling Machine Industrial Pharmaceutical
Indexing box Transmission part Inside groove cam
