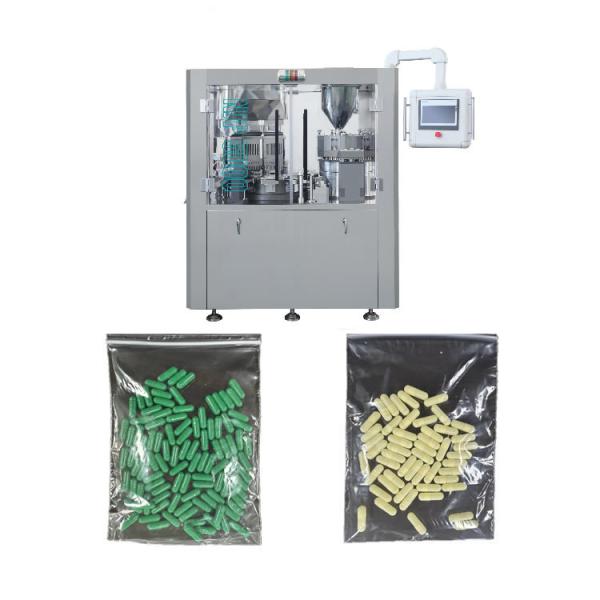

Pharma High Speed Capsule Filling Machine Powerful Pellet Filling Machine
Pharma High Speed Capsule Filling Machine Powerful Pellet Filling Machine
Specifications
Brand Name :
Canaan Kaixinlong
Model Number :
NJP-3500
Place of Origin :
Wenzhou China
MOQ :
1
Price :
49500$
Payment Terms :
T/T, L/C
Packaging Details :
The size of non-fumigated wooden cases varies according to the size of the machine
Output :
3500 capsules/min
No.of segment bores :
25
Suitable fof capsule :
00#-5#
Total power :
11.5Kw(standard)
Overall weight :
2200Kgs
Overall diemensions :
1435(+550)mm×1248(+280)mm×1960mm
Description

Overview of the machine:

High-Tech Pharmaceutical Machine Powerful Pharmaceutical Machine Pharmaceutical Technology Pellet Filling Machine

NJP-3500 series capsule filling machine is an automatic capsule filling machine developed by our company by absorbing the advanced technology at home and abroad. The equipment is beautiful in shape, smooth operation, low noise, easy to operate and easy to clean.
The whole machine adopts intermittent rotary mechanism and quantitative filling. Suitable for 00 # -5 # capsule powder and particle filling, and can be equipped with automatic bag feeding machine, vacuum feeding machine, gold inspection machine, polishing machine, hoist and other auxiliary equipment.

Technical parameters:

Output 3500Capsules/min
No.of segment bores 25
Suitable fof capsule 00#-5#
Total power 11.5Kw(Standard configuration)
Overall weight 2200Kgs
Overall diemensions
1435(+550)mm×1248(+280)mm×1960m
Noise ≤80DB(A)
Pressure 0.4 ~ 0.7Mpa
Air consumption ≤12m³
Vacuum -0.03 ~ -0.06Mpa
Filling error ±2.5%~±5%

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

The process of capsule filling:

Pharma High Speed Capsule Filling Machine Powerful Pellet Filling Machine

Three-dimensional adjustment mechanism:

1.Eliminate the metering plate, copper ring natural deformation degree, uniform clearance, reduce the phenomenon of powder leakage;
2.Easy to disassemble and disassemble, easy to clean;
3.Ensure device differences.
Pharma High Speed Capsule Filling Machine Powerful Pellet Filling Machine
