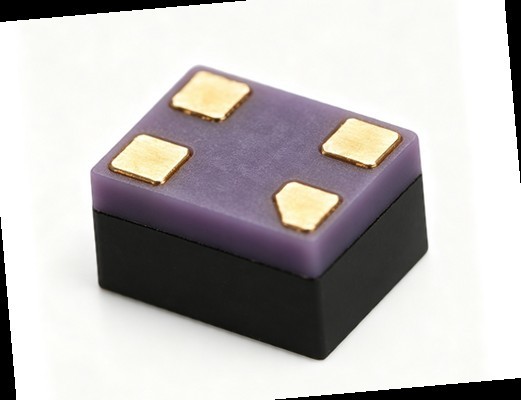

978 MHz Passband RF SAW Filter Bulk Acoustic Wave Filter RoHS Compliant
978 MHz Passband RF SAW Filter Bulk Acoustic Wave Filter RoHS Compliant
Specifications
Certification :
RoHS Compliant
Input Power Level :
20 dBm
Model :
JY-TA0689B
Center Frequency :
978 MHz
Model Number :
JY-TA0689B
Passband :
975.5~980.5 MHz
Application :
L-Band
Brand Name :
JYRF
DC Voltage :
3 V
Place of Origin :
Shenzhen, Guangdong, China
Product Type :
SAW Filter
Insertion Loss :
3.2 dB typ / 3.5 dB max
Description

JY-TA0689B SAW Filter Center Frequency 978 MHz Passband 975.5~980.5 MHz RoHS Compliant Surface Mount

Electrical Specifications

Parameter Frequency (MHz) Min. Typ. Max. Unit
Center Frequency (Fc) - - 978 - MHz
Insertion Loss 975.5~980.5 - 3.2 3.5 dB
Amplitude Ripple 975.5~980.5 - - 2.0 dB
VSWR 975.5~980.5 - - 2.2 -
Input Power Level - - - 20 dBm

Features

  • Low insertion loss
  • High out-of-band attenuation
  • Small surface-mount ceramic package
  • RoHS compliant

Applications

  • L-Band
  • RF front-end filtering
  • Receiver / transmitter filtering

Maximum Ratings

Input Power Level: 20 dBm

DC Voltage: 3 V
